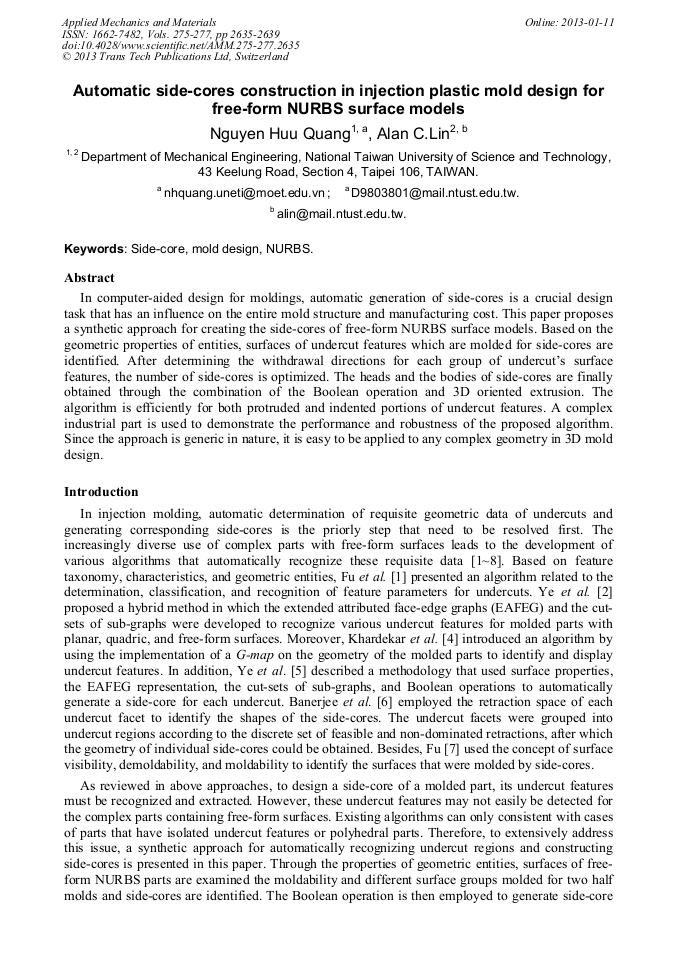

Automatic Side-Cores Construction in Injection Plastic Mold Design for Free-Form NURBS Surface Models

Abstract:

In computer-aided design for moldings, automatic generation of side-cores is a crucial design task that has an influence on the entire mold structure and manufacturing cost. This paper proposes a synthetic approach for creating the side-cores of free-form NURBS surface models. Based on the geometric properties of entities, surfaces of undercut features which are molded for side-cores are identified. After determining the withdrawal directions for each group of undercut’s surface features, the number of side-cores is optimized. The heads and the bodies of side-cores are finally obtained through the combination of the Boolean operation and 3D oriented extrusion. The algorithm is efficiently for both protruded and indented portions of undercut features. A complex industrial part is used to demonstrate the performance and robustness of the proposed algorithm. Since the approach is generic in nature, it is easy to be applied to any complex geometry in 3D mold design.

• Periodical: Applied Mechanics and Materials (Volumes 275-277)
• Pages: 2635-2639
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.275-277.2635
• Online since: January 2013
• Authors: Nguyen Huu Quang, Alan C. Lin
• Keywords: Mold Design, NURBS, Side-Core

References

[1] M.W. Fu, J.Y.H. Fuh, A.Y.C. Nee, Undercut feature recognition in an injection mold design system, Comput-Aided Des. 31/12 (1999) 777-790.

DOI: 10.1016/s0010-4485(99)00070-6

[2] X.G. Ye, J.Y.H. Fuh, K.S. Lee, A hybrid method for recognition of undercut features from moulded parts, Comput-Aided Des. 33/14 (2001) 1023-1034.

DOI: 10.1016/s0010-4485(00)00138-x

[3] N. Ismail, N.A. Bakar, A.H. Juri, Recognition of cylindrical-based features using edge boundary technique for integrated manufacturing, Robot. Cim-Int. Manuf. 20/5 (2004) 417-422.

DOI: 10.1016/j.rcim.2004.03.004

[4] R. Kharderkar, G. Burton, S. McMains, Finding feasible mold parting directions using graphics hardware, Comput-Aided Des. 38/4 (2006) 327-341.

DOI: 10.1016/j.cad.2006.01.008

[5] X.G. Ye, J.Y.H. Fuh, K.S. Lee, Automatic undercut feature recognition for side core design of injection molds, J. Mech. Des. 126/3 (2004) 519-526.

DOI: 10.1115/1.1737379

[6] A.G. Banerjee, S.K. Gupta, Geometrical algorithms for automated design of side actions in injection moulding of complex parts, Comput-Aided Des. 39/10 (2007) 882-897.

DOI: 10.1016/j.cad.2007.05.014

[7] M.W. Fu, The application of surface demoldability and moldability to side-core design in die and mold CAD, Comput-Aided Des. 40/5 (2008) 567-575.

DOI: 10.1016/j.cad.2008.02.002

[8] J.Q. Ran, M.W. Fu, Design of internal pins in injection mold CAD via the automatic recognition of undercut features, Comput-Aided Des. 42/7 (2010) 582-597.

DOI: 10.1016/j.cad.2010.03.001

[9] G. Elber, M.S. Kim, Geometric constraint solver using multivariate rational spline functions, Proc. of the 6th ACM Symp. Sol. Model. App. Ann Arbor, Mich. June 6-8, (2001) 1-10.

DOI: 10.1145/376957.376958

[10] J.G. Gan, T.C. Woo, K. Tang, Spherical Maps: Their Construction, Properties, and Approximation, J. Mech. Des. 116/2 (1994) 357-363.

DOI: 10.1115/1.2919386
