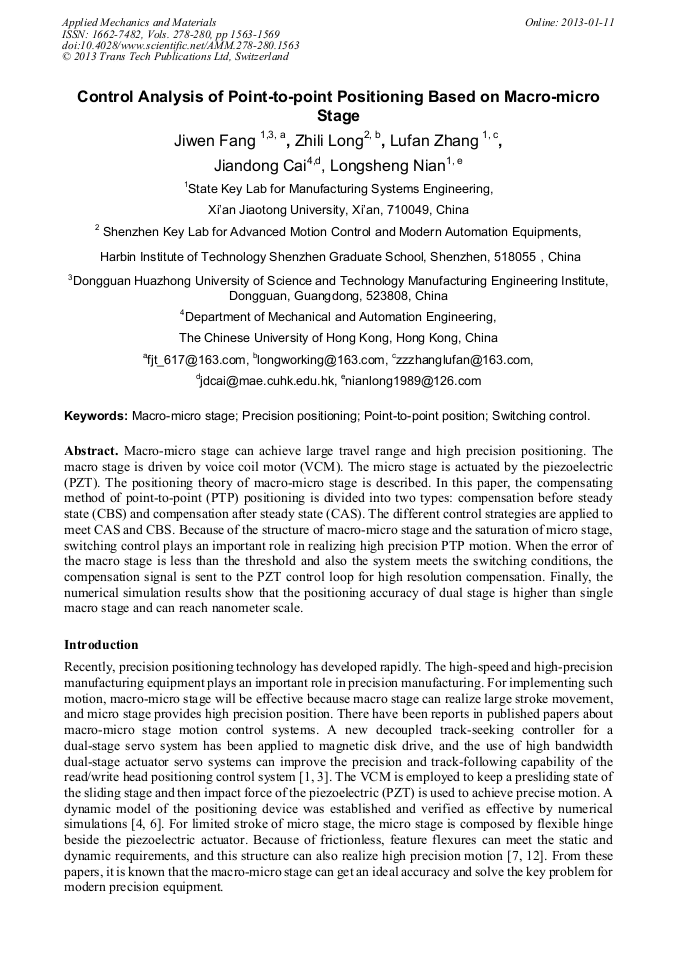

Control Analysis of Point-to-Point Positioning Based on Macro-Micro Stage

Abstract:

Macro-micro stage can achieve large travel range and high precision positioning. The macro stage is driven by voice coil motor (VCM). The micro stage is actuated by the piezoelectric (PZT). The positioning theory of macro-micro stage is described. In this paper, the compensating method of point-to-point (PTP) positioning is divided into two types: compensation before steady state (CBS) and compensation after steady state (CAS). The different control strategies are applied to meet CAS and CBS. Because of the structure of macro-micro stage and the saturation of micro stage, switching control plays an important role in realizing high precision PTP motion. When the error of the macro stage is less than the threshold and also the system meets the switching conditions, the compensation signal is sent to the PZT control loop for high resolution compensation. Finally, the numerical simulation results show that the positioning accuracy of dual stage is higher than single macro stage and can reach nanometer scale.

• Periodical: Applied Mechanics and Materials (Volumes 278-280)
• Pages: 1563-1569
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.278-280.1563
• Online since: January 2013
• Authors: Ji Wen Fang, Zhi Li Long, Lu Fan Zhang, Jian Dong Cai, Long Sheng Nian
• Keywords: Macro-Micro Stage, Point-to-Point Position, Precision Positioning, Switching Control

References

[1] Masahito Kobayashi, Roberto Horowitz: IEEE Transaction on Magnetics. Vol. 37(2001), pp.949-954.

[2] Roberto Horowitz, Yunfeng Li, Kenn Oldham: Control Engineering Practice . (2007), pp.291-305.

[3] Y. Li, R. Horowitz: IEEE/ASME Transaction on Mechatronics. (2001). p.111–121.

[4] Yung-Tien Liu, Bo-Jheng Li: Precision Engineering. Vol. 34(2010), pp.534-545.

[5] Yung-Tien Liu, Rong-Fong Fung, Chun-Chao Wang: Precision Engineering. Vol. 29(2005), pp.411-422.

[6] Chun-Chao Wang, in: Study of a Voice Coil Motor Actuator and Application to Precision Positioning Table. Ph.D. Thesis. Taiwan: National Kaohsiung First University of Science and Technology. ( 2005).

[7] Heui Jae Pahk, Dong Sung Lee, and Jong Ho Park: International Journal of Machine Tools & Manufacture. Vol. 41(2001), pp.51-63.

[8] W Dong, J Tang, and Y Eldeeb: Smart Materials and Structures. Vol. 45(2005), pp.153-165.

[9] Hyeun-seok Choi, Chi-woo Song, Chang-soo Han: SCIE Annual Conference in Fukui. (2003), pp.2732-2737.

[10] A. T. Elfizy, G. M. Bone, and M. A. Elbestawi: Int. J. Machine Tools Manuf. Vol. 45(2005), pp.153-165.

[11] J. Minase, T. -F. Lu, B. Cazzolato and S. Grainger: Precision Engineering. Vol. 34(2010), pp.692-700.

[12] Jie Degang, in: Research on the high-speed/high-precision positioning system of macro/micro driving. Ph.D. Thesis. Harbin: Harbin Institute of Technology. (2006).

[13] Zhong Jun, in: Research on control technologies of the macroscopic scale and nano positioning. Ph.D. Thesis. Hefei: University of Science and Technology of China. ( 2011).

[14] V. Venkataramanan, Ben M. Cgen, Tong H. Lee and Guoxiao Guo: Control Engineering Practice. (2002), pp.925-939.
