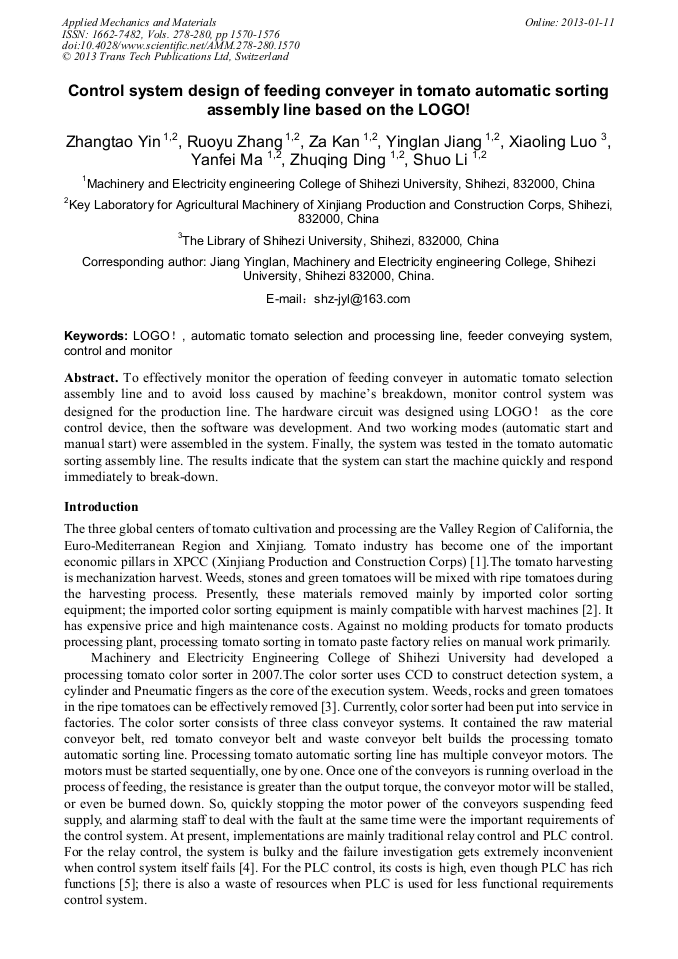

Control System Design of Feeding Conveyer in Tomato Automatic Sorting Assembly Line Based on the LOGO!

Abstract:

To effectively monitor the operation of feeding conveyer in automatic tomato selection assembly line and to avoid loss caused by machine’s breakdown, monitor control system was designed for the production line. The hardware circuit was designed using LOGO！ as the core control device, then the software was development. And two working modes (automatic start and manual start) were assembled in the system. Finally, the system was tested in the tomato automatic sorting assembly line. The results indicate that the system can start the machine quickly and respond immediately to break-down.

• Periodical: Applied Mechanics and Materials (Volumes 278-280)
• Pages: 1570-1576
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.278-280.1570
• Online since: January 2013
• Authors: Zhang Tao Yin, Ruo Yu Zhang, Za Kan, Ying Lan Jiang, Xiao Ling Luo, Yan Fei Ma, Zhu Qing Ding, Shuo Li
• Keywords: Automatic Tomato Selection and Processing Line, Control and Monitor, Feeder Conveying System, LOGO!

References

[1] Chao Li, Za Kan, Ruoyu Zhang. Journal of Agricultural Mechanization Research. Vol. 3 (2009), p.168 (In Chinese).

[2] Xuguang Yan, Za Kan, Ruoyu Zhang. Journal of Agricultural Mechanization Research. Vol. 5 (2010), pp.45-47 (In Chinese).

[3] Xiaoli Sun: China Shihezi University (2010). (In Chinese).

[4] Xiaoling Feng, Fenghua Luo, Chi Pang: Journal of Control Theory and Applications. Vol. 38 (2011), p.46 (In Chinese).

[5] Wuhong Wang, Xiuhu Chang. Mechanical Engineering and Automation. Vol. 3 (2012), pp.192-194 (In Chinese).

[6] Yonghong Wu, Fushun Zhang, Lijiang Du. Industrial Contral Computer. Vol. 22 (2009), p.89 (In Chinese).

[7] Chen Zhao, Huimin Sun, Xuenan Xu. Programmable Controller and Factory Automation. Vol. 8 (2010), pp.40-42 (In Chinese).

[8] Lanxin Xu, Gang Xie, Qiang Ma. Automation Application. Vol. 1 (2012), pp.38-39 (In Chinese).
