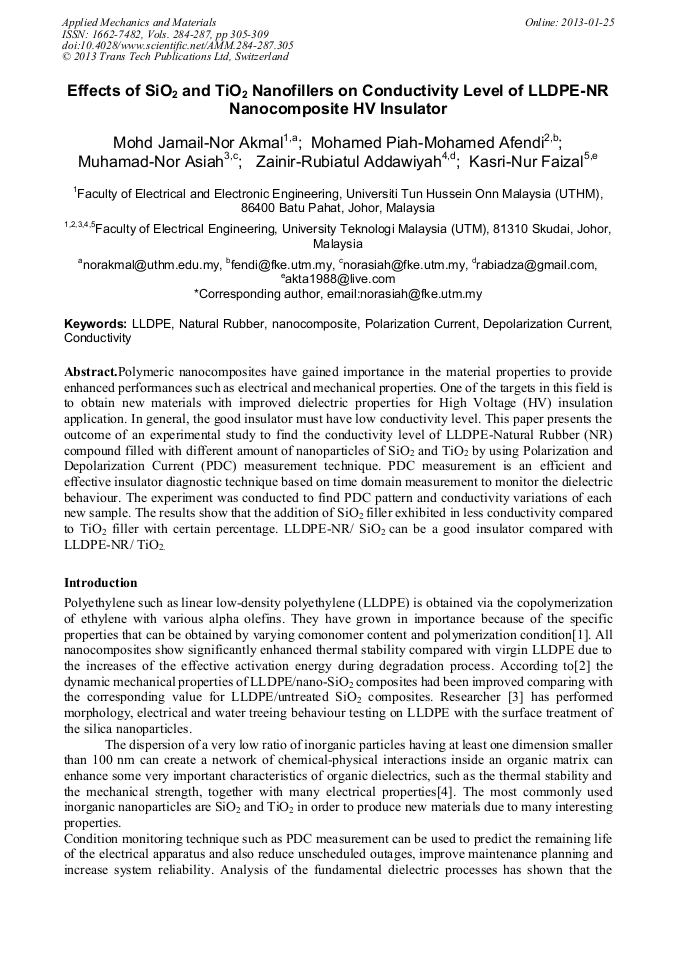

Effects of SiO₂ and TiO₂ Nanofillers on Conductivity Level of LLDPE-NR Nanocomposite HV Insulator

Abstract:

Polymeric nanocomposites have gained importance in the material properties to provide enhanced performances such as electrical and mechanical properties. One of the targets in this field is to obtain new materials with improved dielectric properties for High Voltage (HV) insulation application. In general, the good insulator must have low conductivity level. This paper presents the outcome of an experimental study to find the conductivity level of LLDPE-Natural Rubber (NR) compound filled with different amount of nanoparticles of SiO2 and TiO2 by using Polarization and Depolarization Current (PDC) measurement technique. PDC measurement is an efficient and effective insulator diagnostic technique based on time domain measurement to monitor the dielectric behaviour. The experiment was conducted to find PDC pattern and conductivity variations of each new sample. The results show that the addition of SiO2 filler exhibited in less conductivity compared to TiO2 filler with certain percentage. LLDPE-NR/ SiO2 can be a good insulator compared with LLDPE-NR/ TiO2.

You might also be interested in these eBooks

Innovation for Applied Science and Technology

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 284-287)

Pages:

305-309

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.284-287.305

Citation:

Cite this paper

Online since:

January 2013

Authors:

Mohd Jamail Nor Akmal, Mohamed Piah Mohamed Afendi, Muhamad Nor Asiah, Zainir Rubiatul Addawiyah, Kasri Nur Faizal

Keywords:

Conductivity, Depolarization Current, LLDPE, Nanocomposite, Natural Rubber (NR), Polarization Current

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] W. Owpradit and B. Jongsomjit, :Materials Chemistry and Physics, vol. 112, pp.954-961(2008)

Google Scholar

[2] Y. Huang , S. Jiang, L.Wu and Y. Hua :Polymer Testing, vol. 23, pp.9-15(2004).

Google Scholar

[3] H. Xingyi, L.Fei and J. Pingkai : Dielectrics and Electrical Insulation, IEEE Transactions on, vol. 17, pp.1697-1704.

Google Scholar

[4] A. Sami, E. David and M. Frechett : Electrical Insulation and Dielectric Phenomena, 2009. CEIDP '09. IEEE Conference on, pp.689-692 (2009)

Google Scholar

[5] T. K. Saha, M. K. Pradhan and J. H. Yew :Power Engineering Society General Meeting, IEEE, pp.1-7 (2007).

Google Scholar

[6] T. K. Saha and P. Purkait: Dielectrics and Electrical Insulation, IEEE Transactions on, vol. 11, pp.144-154, (2004).

Google Scholar

[7] N. A. Muhamad, B. T. Phung, T. R. Blackburn and K. X. Lai : Power Engineering Conference, 2009. AUPEC 2009. Australasian Universities, pp.1-6 (2009).

Google Scholar

[8] C. Ekanayake, T. K. Saha, H. Ma and D. Allan: Power and Energy Society General Meeting, IEEE, pp.1-8 (2010).

Google Scholar

[9] T. K. Saha and P. Purkait :Power Delivery, IEEE Transactions on, vol. 19, pp.1127-1134, ((2004)

Google Scholar
