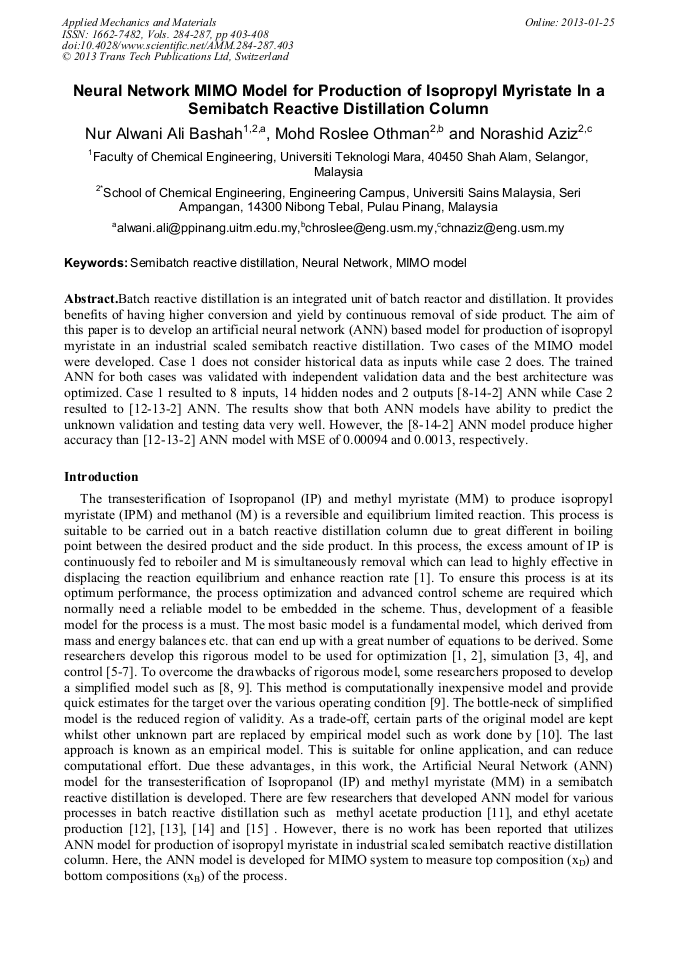

Neural Network MIMO Model for Production of Isopropyl Myristate in a Semibatch Reactive Distillation Column

Abstract:

Batch reactive distillation is an integrated unit of batch reactor and distillation. It provides benefits of having higher conversion and yield by continuous removal of side product. The aim of this paper is to develop an artificial neural network (ANN) based model for production of isopropyl myristate in an industrial scaled semibatch reactive distillation. Two cases of the MIMO model were developed. Case 1 does not consider historical data as inputs while case 2 does. The trained ANN for both cases was validated with independent validation data and the best architecture was optimized. Case 1 resulted to 8 inputs, 14 hidden nodes and 2 outputs [8-14-2] ANN while Case 2 resulted to [12-13-2] ANN. The results show that both ANN models have ability to predict the unknown validation and testing data very well. However, the [8-14-2] ANN model produce higher accuracy than [12-13-2] ANN model with MSE of 0.00094 and 0.0013, respectively.

• Periodical: Applied Mechanics and Materials (Volumes 284-287)
• Pages: 403-408
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.284-287.403
• Online since: January 2013
• Authors: Nur Alwani Ali Bashah, Mohd Roslee Othman, Norashid Aziz
• Keywords: MIMO Model, Neural Network (NN), Semibatch Reactive Distillation

References

[1] H. Arellano-Garcia, I. Carmona, and G. Wozny: Computers & Chemical Engineering Vol. 32 (2008), p.161.

[2] E. A. Edreder, I. M. Mujtaba, and M. Emtir, Computer Aided Chemical Engineering, (2009)

[3] S. Brüggemann, J. Oldenburg, P. Zhang, and W. Marquardt: Industrial & Engineering Chemistry Research Vol. 43 (2004), p.3672.

[4] R. Schneider, C. Noeres, L. U. Kreul, and A. Górak: Computers & Chemical Engineering Vol. 25 (2001), p.169.

DOI: 10.1016/s0098-1354(00)00640-2

[5] P. Kathel and A. K. Jana: ISA Transactions Vol. 49 (2010), p.130.

[6] L. S. Balasubramhanya and F. J. Doyle Iii: Journal of Process Control Vol. 10 (2000), p.209.

[7] A. Patra, D. M. Dave, and A. K. Jana: Industrial and Engineering Chemistry Research Vol. 50 (2011), p.1666.

[8] M. E. Huerta-Garrido, V. Rico-Ramirez, and S. Hernandez-Castro: Industrial & Engineering Chemistry Research Vol. 43 (2004), p.4000.

DOI: 10.1021/ie030658w

[9] S. B. Gadewar, M. F. Malone, and M. F. Doherty: Industrial and Engineering Chemistry Research Vol. 39 (2000), p.1565.

[10] D. Osorio, R. Pérez-Correa, A. Belancic, and E. Agosin: Food Control Vol. 15 (2004), p.515.

[11] K. Dadhe, V. Roßmann, K. Durmus, S. Engell, and B. Reusch, Springer Berlin / Heidelberg, (2001). Vol. 2206, p.576.

[12] I. M. Mujtaba and M. A. Greaves: Neural network based modeling and optimization in batch reactive distillation 2006).

[13] K. Jithin Prakash, D. S. Patle, and A. K. Jana: ISA Transactions Vol. (2011).

[14] A. Bahar and C. Özgen: Engineering Applications of Artificial Intelligence Vol. 23 (2010), p.262.

[15] K. Konakom, P. Kittisupakorn, A. Saengchan, and I. M. Mujtaba: Optimal Policy Tracking of a Batch Reactive Distillation by Neural Network-based Model Predictive Control (NNMPC) Strategy 2010).

DOI: 10.1016/j.jiec.2009.09.064

[16] P. Li, H. A. Garcia, G. Wozny, and E. Reuter: Industrial & Engineering Chemistry Research Vol. 37 (1998), p.1341.

[17] J. D. Seader and E. J. Henley, in: Separation Process Principles. John Wiley & Sons (Asia) Pte Ltd, (2006), in press.

[18] M. Jimoh, H. A. Garcia, G. Wozny, H. Bock, and B. Gutsche: Lipid / Fett Vol. 101 (1999), p.50.

DOI: 10.1002/(sici)1521-4133(19992)101:2<50::aid-lipi50>3.0.co;2-8

[19] N. A. A. Bashah, M. R. Othman, and N. Aziz: Simulation of Transesterification of Methyl Myristate and Isopropanol in Semibatch Reactive Distillation Column (Petaling Jaya, Selangor, Malaysia, 2012).

[20] S. G. Luigi Fortuna, Alessandro Rizzo and Maria G. Xibilia in: Soft Sensors for Monitoring and Control of Industrial Processes. Springer-Verlag London Limited 2007, (2007), in press.

[21] R. Hecht-Nielsen: Kolmogorov's mapping neural network existence theorem (San Diego, New York, 1987).

[22] A. Robenson.Chemical Engineering, Universiti Sains Malaysia, Nibong Tebal, (2008).

DOI: 10.21315/jps2018.29.s1.12

[23] P. Turner, G. Montague, and J. Morris: Control Theory and Applications, IEE Proceedings - Vol. 143 (1996), p.44.
