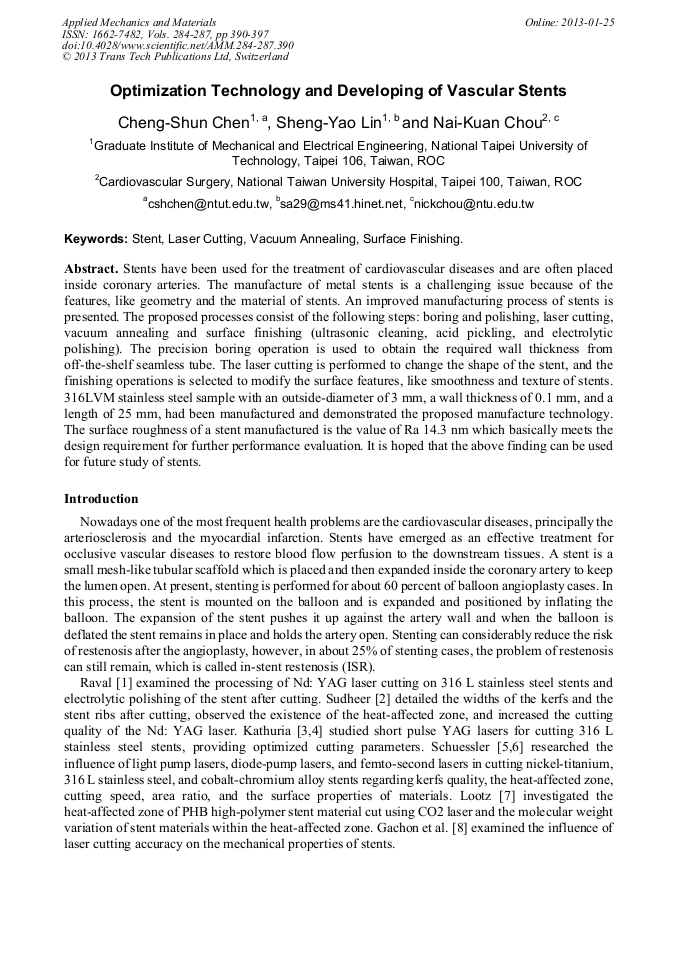

Optimization Technology and Developing of Vascular Stents

Abstract:

Stents have been used for the treatment of cardiovascular diseases and are often placed inside coronary arteries. The manufacture of metal stents is a challenging issue because of the features, like geometry and the material of stents. An improved manufacturing process of stents is presented. The proposed processes consist of the following steps: boring and polishing, laser cutting, vacuum annealing and surface finishing (ultrasonic cleaning, acid pickling, and electrolytic polishing). The precision boring operation is used to obtain the required wall thickness from off-the-shelf seamless tube. The laser cutting is performed to change the shape of the stent, and the finishing operations is selected to modify the surface features, like smoothness and texture of stents. 316LVM stainless steel sample with an outside-diameter of 3 mm, a wall thickness of 0.1 mm, and a length of 25 mm, had been manufactured and demonstrated the proposed manufacture technology. The surface roughness of a stent manufactured is the value of Ra 14.3 nm which basically meets the design requirement for further performance evaluation. It is hoped that the above finding can be used for future study of stents.

• Periodical: Applied Mechanics and Materials (Volumes 284-287)
• Pages: 390-397
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.284-287.390
• Online since: January 2013
• Authors: Cheng Shun Chen, Sheng Yao Lin, Nai Kuan Chou
• Keywords: Laser Cutting, Stent, Surface Finishing, Vacuum Annealing

References

[1] A. Raval, A. Choubey, C. Engineer and D. Kothwala: Materials Science and Engineering (A) Vol. 386 (2004), pp.331-343.

DOI: 10.1016/s0921-5093(04)00974-8

[2] S. K. Sudheer, V. P. M. Pillai, V. U. Nayar, Y. Pothiawala, D. Kothwala and D. L. Kotadia: J. Microlith., Microfab., Microsyst Vol. 5, 023010 (2006), p.1–9.

[3] Y. P. Kathuria: Proceedings of SPIE Vol. 5399 (2004), pp.234-244.

[4] Y. P. Kathuria: Proceedings of SPIE-OSA Biomedical Optics Vol. 5142 (2003), p.176–186.

[5] A. Schuessler and M. Strobel, in: Status and trends of nitinol laser micro-machining techniques, ASM materials & processes for medical deices conference, Sept. 8-10, Anaheim, CA (2003).

[6] M. Strobel and A. Schuessler, in: Status and trends in laser micro machining of metallic medical components, SMST conference, October 3-7, Baden-Baden, Germany (2004).

[7] D Lootz D, Behrend D, Kramer S, Freier T, Haubold A, Benkiesser G, Schmitz KP and Becher B: Biomaterials Vol. 22 (2001), p.2447–2452.

DOI: 10.1016/s0142-9612(00)00245-3

[8] Gachon C., Delassus P. and Mc Hugh P.: Proceedings of SPIE Vol. 4876 (2003), pp.574-581.

[9] Wang K, in: Biocompatibilisation of Coronary Artery Stents, volume 162 of Acta Biomedical Lovaniensia, Department of Cardiology, Ketholieke Universiteit Leuven (1997), pp.89-102.

[10] Steinemann SG: Injury Vol. 27 (suppl. 3) (1996), SC16-21.

[11] O. F. Bertrand, R. Sipehia, R. Mongrain, J. Rodes, J. C. Tardif, L. Bilodeau, G. Cote and M. G. Bourassa: JACC Vol. 32(3) (1998), pp.562-571.

DOI: 10.1016/s0735-1097(98)00289-7

[12] I. De Scheerder, B. H. Strauss, P. J. De Feyter, K. J. Beatt, L. H. Baur, W. Wijns, G. R. Heyndrix, H. Suryapranata, M. Van Den Brand and B. Buis: Am. Heart J. Vol. 123 (1992), pp.1046-1054.

DOI: 10.1016/0002-8703(92)90716-9

[13] I. De Scheerder, Wang K and Kerdsinchai P: J Invas Cardiol Vol. 8 (1996), pp.418-427.

[14] Henry M, Klonaris C, Amor M, Henry I and Tzvetanov K: Tex Heart Inst J. Vol. 27(2) (2000), pp.119-126.

[15] Mc Clean D R and Eigler N L: Rev Cardiovasc Med. Vol. 3 (suppl. 5) (2002), pp.16-22.

[16] Rogers C D K.: Rev Cardiovasc Med. Vol. 3 (suppl. 5) (2002), pp.10-15.

[17] Information on http: /www. matweb. com.
