Identification of the Through-Thickness Orthotropic Stiffness of Composite Tubes from Full-Field Measurements

Abstract:

This paper deals with the simultaneous identification of the four through-thickness orthotropic rigidities of a thick composite tube. A diametral compression test has been carried out on a glass/epoxy ring cut from the tube. The full strain field has been measured over one face of the sample with the grid method. The measured fields have been processed with the Virtual Fields Method to identify the rigidities of the material. At the beginning, discrepancies and significant variations occurred in the identified moduli due to inhomogeneous distribution of the strains through the thickness. A method based on a simultaneous measurement on both sides of the ring has been adopted. Very satisfactory results have been obtained using this methodology.

You might also be interested in these eBooks

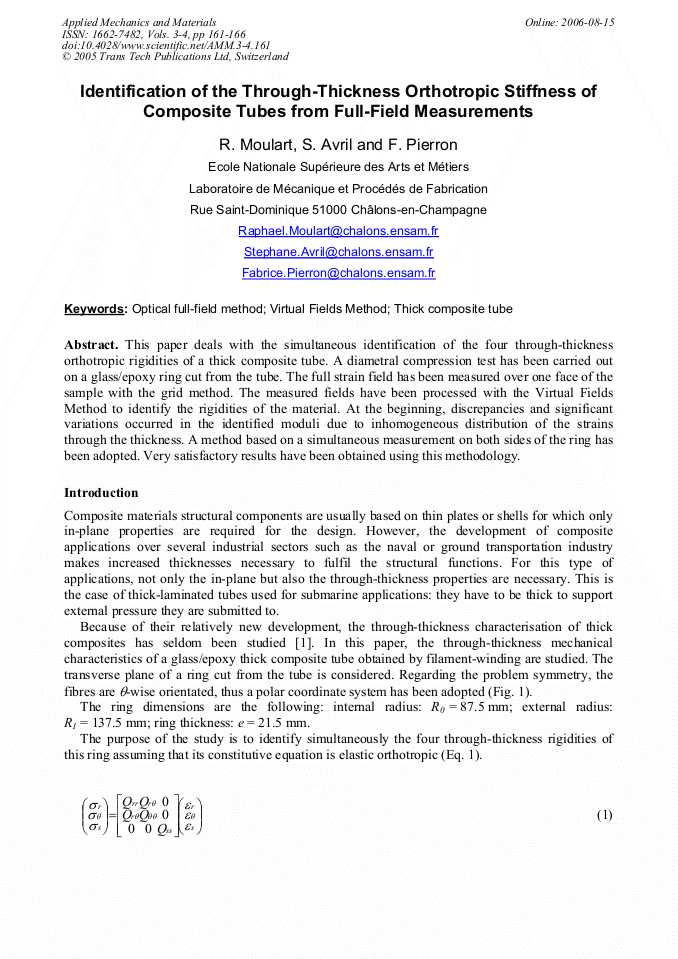

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 3-4)

Pages:

161-166

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.3-4.161

Citation:

Cite this paper

Online since:

August 2006

Authors:

Raphaël Moulart, Stephane Avril, Fabrice Pierron

Keywords:

Optical Full-Field Method, Thick Composite Tube, Virtual Fields Method

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] W.R. BOUGHTON and G.D. SIMS. An overview of through-thickness test methods for polymer matrix composites,. Technical report, DMMA(A) 148, National Physics Laboratory, UK, (1994).

Google Scholar

[2] Y. SURREL. Moiré and grid methods: a signal-processing approach". In R.J. Pryputniewicz and J. Stupnicki, editors, Interferometry , 94: Photomechanics, volume SPIE 2342, (1994).

DOI: 10.1117/12.195491

Google Scholar

[3] J. -L. PIRO and M. GRÉDIAC. Producing and transfering low-spatial-frequency grids for measuring displacement fields with moiré and grid methods,. Experimental Techniques, 28, n°4: 23-26, (2004).

DOI: 10.1111/j.1747-1567.2004.tb00173.x

Google Scholar

[4] M. GREDIAC. Principe des travaux virtuels et identification". Mécanique des Solides, 309, II: 1- 5, 1989. Comptes rendus de l, Académie des Sciences, in French with an English abstract.

Google Scholar

[5] M. GREDIAC, E. TOUSSAINT, and F. PIERRON. Special virtual fields for the direct determination of material parameters with the virtual fields method. 1 - Principle and definition,. International Journal of Solids and Structures, 39: 2691-2705, (2002).

DOI: 10.1016/s0020-7683(02)00127-0

Google Scholar

[6] S. AVRIL, M. GREDIAC, and F. PIERRON. Sensitivity of the virtual fields method to noisy data,. Computational Mechanics, 34, n°6: 439-452, (2004).

DOI: 10.1007/s00466-004-0589-6

Google Scholar
