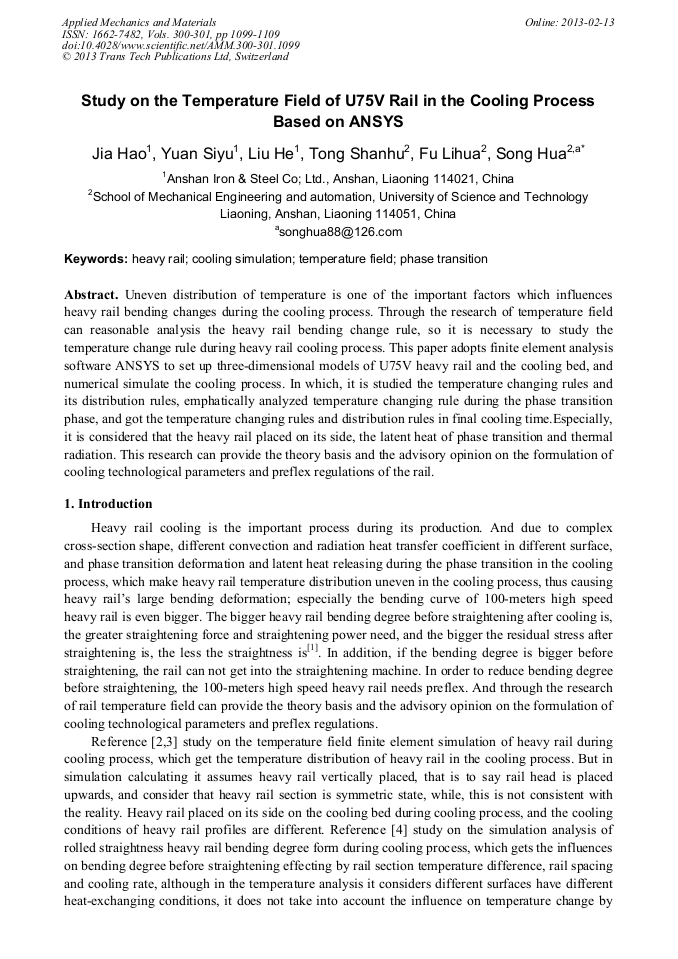

Study on the Temperature Field of U75V Rail in the Cooling Process Based on ANSYS

Abstract:

Uneven distribution of temperature is one of the important factors which influences heavy rail bending changes during the cooling process. Through the research of temperature field can reasonable analysis the heavy rail bending change rule, so it is necessary to study the temperature change rule during heavy rail cooling process. This paper adopts finite element analysis software ANSYS to set up three-dimensional models of U75V heavy rail and the cooling bed, and numerical simulate the cooling process. In which, it is studied the temperature changing rules and its distribution rules, emphatically analyzed temperature changing rule during the phase transition phase, and got the temperature changing rules and distribution rules in final cooling time. Especially, it is considered that the heavy rail placed on its side, the latent heat of phase transition and thermal radiation. This research can provide the theory basis and the advisory opinion on the formulation of cooling technological parameters and preflex regulations of the rail.

• Periodical: Applied Mechanics and Materials (Volumes 300-301)
• Pages: 1099-1109
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.300-301.1099
• Online since: February 2013
• Authors: Hao Jia, Si Yu Yuan, He Liu, Shan Hu Tong, Li Hua Fu, Hua Song
• Keywords: Cooling Simulation, Heavy Rail, Phase Transition, Temperature Field

References

[1] Guo Hua, Wang Yanzhong, Wang Daiwen. The research on reducing rail bending curve before straightening. Sichuan Metallurgy, 2002(5): 37-39.

[2] Zhou Jianhua, Lin Gang, Wu Di, Zhao Xianming. Finite Element Simulation and Analysis of Temperature Field of 60kg/m Heavy Rail During Cooling. Journal of iron and steel research. 2007, Vol. 19, No. 11, 29-32.

[3] Li Ge, Cui Haiyan, Chen Lin. Finite Element Analysis on Temperature Field of 100-metre U75V Steel During Cooling Process before straightening, Special steel, 2009, Vol. 30, No. 1, 1-3.

[4] Li Ge, Zhao Yuping, Huang Xianhai. Computer simulation of bend of rail during cooling at air after hot rolling. Journal of Plasticity Engineering, 2006, Vol. 13, No. 3, 74-77.

[5] J Basu, S L Srimani, D S Gupta. Rail behavior during cooling after hot rolling. The Journal of Strain Analysis for Engineering Design. 2004, Vol. 39, No. 1: pp.15-24.

DOI: 10.1177/030932470403900102

[6] Jonas W. Ringsberg, Torbjorn Lindback. Rolling contact fatigue analysis of rails including numerical simulations of the rail manufacturing process and repeated wheelrail contact loads. International journal of Fatigue. 2003, 547-558.

DOI: 10.1016/s0142-1123(02)00147-0

[7] Song Hua, Gao Mingxin, Jia Hao, Jiang Juanjuan. Study on the phase change deformation of U75V heavy rail during the cooling process. Journal of Plasticity Engineering, 2011, Vol. 18(No. 3): 95-100.

DOI: 10.1016/j.proeng.2011.08.860

[8] Liu Zongchang, Ren Huiping, Song Yiquan. Metal solid phase transition course. Bei Jing: Metallurgical Industry Press, (2003).

[9] Wang Houhua. Heat Transfer. Chong Qing: Chongqing university press, (2006).

[10] Yang Shiming, Tao Wenquan. Heat Transfer. Bei Jing: Higher education press, (1998).
