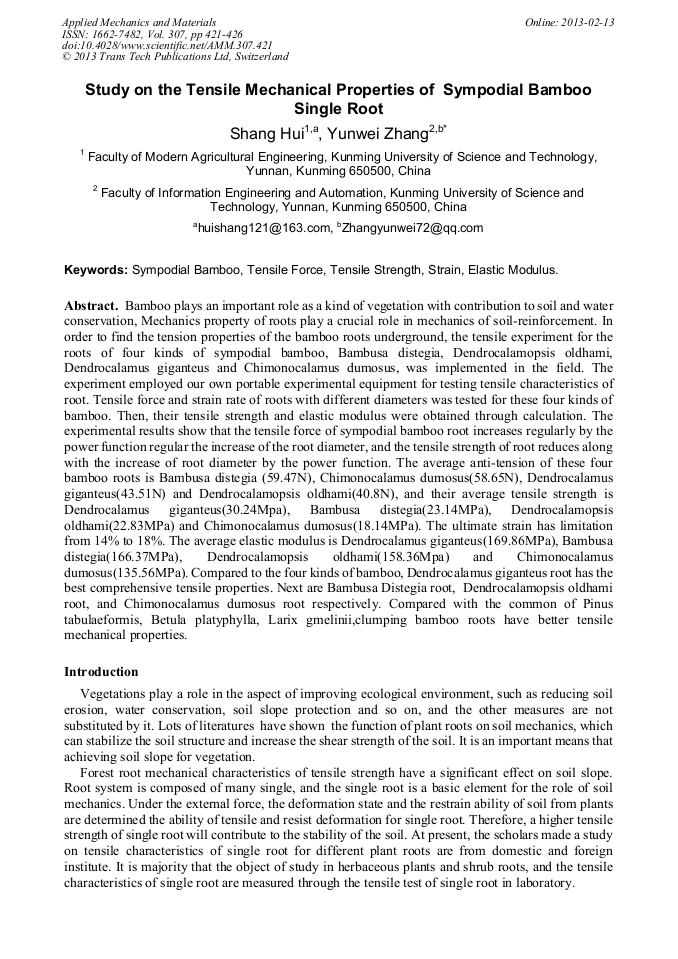

Study on the Tensile Mechanical Properties of Sympodial Bamboo Single Root

Abstract:

Bamboo plays an important role as a kind of vegetation with contribution to soil and water conservation, Mechanics property of roots play a crucial role in mechanics of soil-reinforcement. In order to find the tension properties of the bamboo roots underground, the tensile experiment for the roots of four kinds of sympodial bamboo, Bambusa distegia, Dendrocalamopsis oldhami, Dendrocalamus giganteus and Chimonocalamus dumosus, was implemented in the field. The experiment employed our own portable experimental equipment for testing tensile characteristics of root. Tensile force and strain rate of roots with different diameters was tested for these four kinds of bamboo. Then, their tensile strength and elastic modulus were obtained through calculation. The experimental results show that the tensile force of sympodial bamboo root increases regularly by the power function regular the increase of the root diameter, and the tensile strength of root reduces along with the increase of root diameter by the power function. The average anti-tension of these four bamboo roots is Bambusa distegia (59.47N), Chimonocalamus dumosus(58.65N), Dendrocalamus giganteus(43.51N) and Dendrocalamopsis oldhami(40.8N), and their average tensile strength is Dendrocalamus giganteus(30.24Mpa), Bambusa distegia(23.14MPa), Dendrocalamopsis oldhami(22.83MPa) and Chimonocalamus dumosus(18.14MPa). The ultimate strain has limitation from 14% to 18%. The average elastic modulus is Dendrocalamus giganteus(169.86MPa), Bambusa distegia(166.37MPa), Dendrocalamopsis oldhami(158.36Mpa) and Chimonocalamus dumosus(135.56MPa). Compared to the four kinds of bamboo, Dendrocalamus giganteus root has the best comprehensive tensile properties. Next are Bambusa Distegia root, Dendrocalamopsis oldhami root, and Chimonocalamus dumosus root respectively. Compared with the common of Pinus tabulaeformis, Betula platyphylla, Larix gmelinii,clumping bamboo roots have better tensile mechanical properties.

• Periodical: Applied Mechanics and Materials (Volume 307)
• Pages: 421-426
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.307.421
• Online since: February 2013
• Authors: Shang Hui, Yun Wei Zhang
• Keywords: Elastic Modulus, Strain, Sympodial Bamboo, Tensile Force, Tensile Strength

References

[1] Chen shuhua, Liu quanzhang, Wang Peng: Discussion on river bank soil embankment benefit of dendrocalamopsis oldhami in Fuan city. FuiJan SolIand Water conservation. vol 12, No. 4(2000), pp.49-52.

[2] Liu Guanglu, Fan Shaohui, Su Wenhui: Research Advances in the Growth Characteristics and Management Technology of Sympodial Bamboo Forests. Journal of bamboo research. vol 30, No. 3(2011), pp.43-48.

[3] Liang Jia, XIE Shuangxi, Zhang Wen, et al: Investigation and Analysis on Growth condition of Seven Clumping Bamboo Species in Chishui City. Guizhou Agricultural Sciences. vol 38, No. 6(2010), pp.171-176.

[4] Liu Guohua, Wang Fusheng, Deng Yulong: A research on root system distribution characteristic and mechanical properties of 4 dwarf bamboos. china forestry science and technology. vol 25, No. 6(2011), pp.20-23.

[5] Chen Lihua, Yu Xinxiao, Song Weifeng, et al: Mechanics of Root-Soil. Beijing: Science press(2008), pp.57-63.

[6] Lü Chunjuan, Chen Lihua, Zhou Shuo, et al: Root mechanical characteristics of different tree species . Transactions of the CSAE. vol 27(Supp1) (2011), p.329－335.

[7] Liu Xiuping, Chen Lihua, Song Weifeng, et al: Experimental on resistance to tensile stress and complete stress-strain curves of root system of Pinus tabuleeformis. Science of Soil and Water Conservation, vol 4, No. 1(2006), p.66－70.

[8] Rnering J J, Stock J D, Scbmidt K et al: Shallow landsliding, root reinforcement, and the spatial distribution of trees in the Oregon Coast Range. Canadian Geotechnical Journal,. vol 40(2003), pp.237-253.

DOI: 10.1139/t02-113

[9] Kazutoki Abe, Robert R. Ziemer: Effect of tree roots on a shear zone: modeling reinforced shear stress. Canadian Journal of Forest Research. No. 4(1991), pp.1012-1019.

DOI: 10.1139/x91-139
