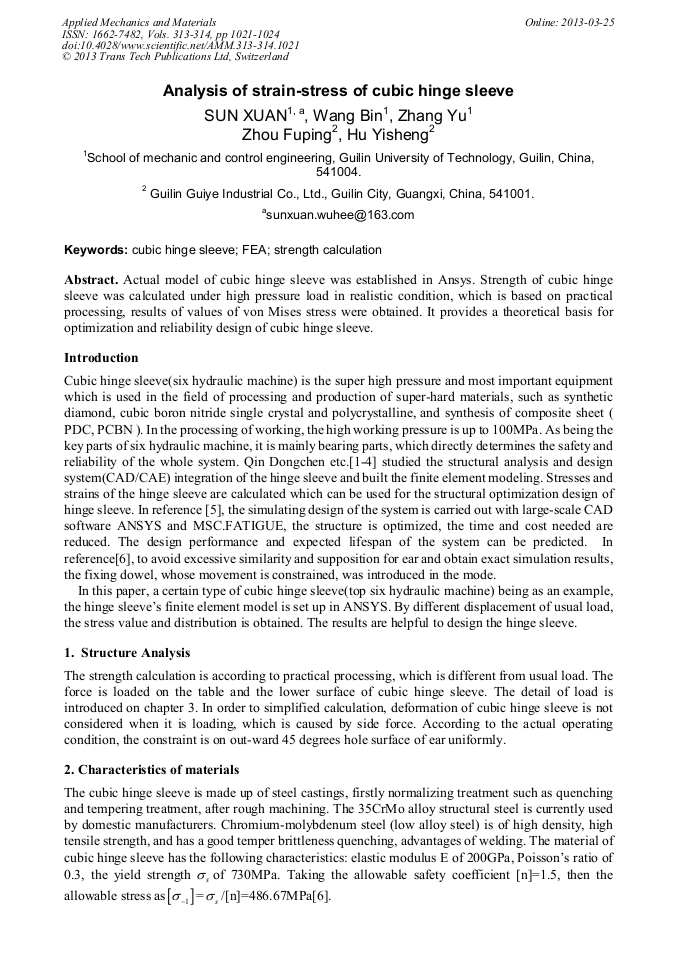

Analysis of Strain-Stress of Cubic Hinge Sleeve

Abstract:

Actual model of cubic hinge sleeve was established in Ansys. Strength of cubic hinge sleeve was calculated under high pressure load in realistic condition, which is based on practical processing, results of values of von Mises stress were obtained. It provides a theoretical basis for optimization and reliability design of cubic hinge sleeve.
