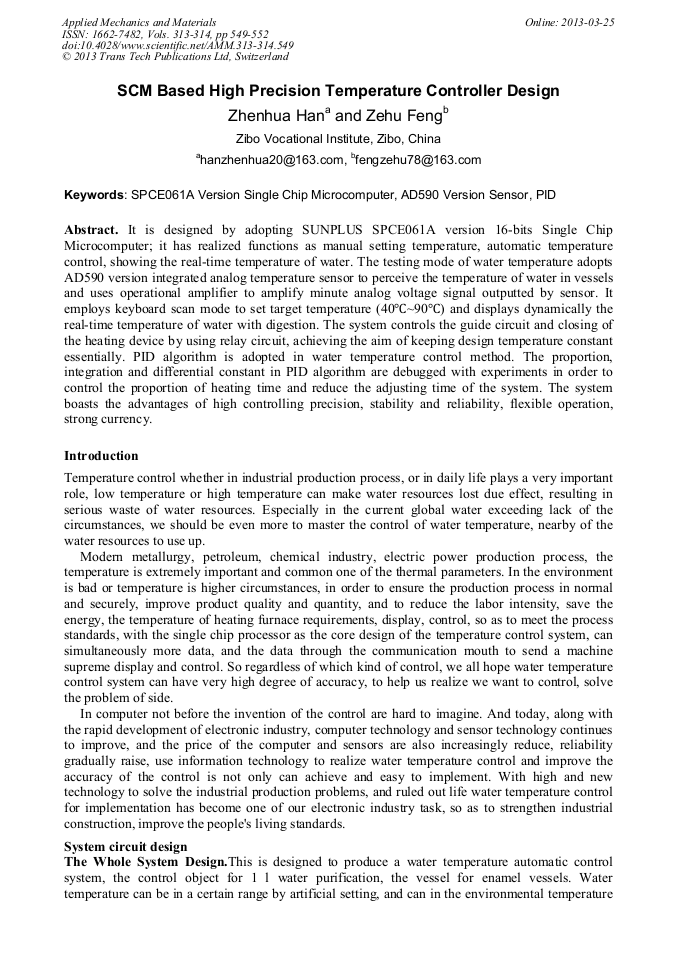

SCM Based High Precision Temperature Controller Design

Abstract:

t is designed by adopting SUNPLUS SPCE061A version 16-bits Single Chip Microcomputer; it has realized functions as manual setting temperature, automatic temperature control, showing the real-time temperature of water. The testing mode of water temperature adopts AD590 version integrated analog temperature sensor to perceive the temperature of water in vessels and uses operational amplifier to amplify minute analog voltage signal outputted by sensor. It employs keyboard scan mode to set target temperature (40°C~90°C) and displays dynamically the real-time temperature of water with digestion. The system controls the guide circuit and closing of the heating device by using relay circuit, achieving the aim of keeping design temperature constant essentially. PID algorithm is adopted in water temperature control method. The proportion, integration and differential constant in PID algorithm are debugged with experiments in order to control the proportion of heating time and reduce the adjusting time of the system. The system boasts the advantages of high controlling precision, stability and reliability, flexible operation, strong currency.

• Periodical: Applied Mechanics and Materials (Volumes 313-314)
• Pages: 549-552
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.313-314.549
• Online since: March 2013
• Authors: Zhen Hua Han, Ze Hu Feng
• Keywords: AD590 Version Sensor, PID, SPCE061A Version Single Chip Microcomputer

References

[1] Jiansen Shen, Xu chang Zhou. Based on the PIC microcontroller fuzzy temperature controller design [J]. Industrial control computer, 2006, 19(7):52～53.

[2] Yongjian Hu, XiameiWang. Based on the high road MSC1210 temperature gathering system module [J]. Automation and instrumentation, 2006, 10(2):36～38.

[3] Xinan Zhang. Use AD590 to make high precision digital thermometer [J]. Practical electronic production, 2007, 3:14～15.

[4] Changfei Lv, Xiaoyu Wu. Based on intelligent temperature controller AT89C52 design [J]. J SCM development and applications, 2007, 23 (7-2): 83 ~ 84.

[5] The national student electronics designing competitions the organizing committee. The national student electronics designing competition awards assembly [M]. Beijing: Peking University press, 2004.
