Axial Impact Performance of Aluminium Thin Cylindrical Tube

Abstract:

One of the important objectives in this research is investigating the behavior on the cylindrical tube structure via computer simulations. When a thin cylindrical structure is experienced an impact loading, the crushing process on impact can only be observed by a high speed camera. Recording the stress and strain data is also not possible experimentally. A numerical approach implementing finite element method with a dynamic-explicit code is an effective solution to observe the crushing process. A thin cylindrical structure found in aluminium can is modeled. A finite element impact simulation is then performed to observe the crushing process sequence and the stress and strain development history on axial impact employing IMPACT application program. An experimental of thin cylindrical structure on axial impact is conducted. The final crushing pattern after the impact is then compared with that from simulation. The result shows that final crushing pattern is in a good agreement with that shown in experiment. The stress and strain histories can be observed from the simulation.

You might also be interested in these eBooks

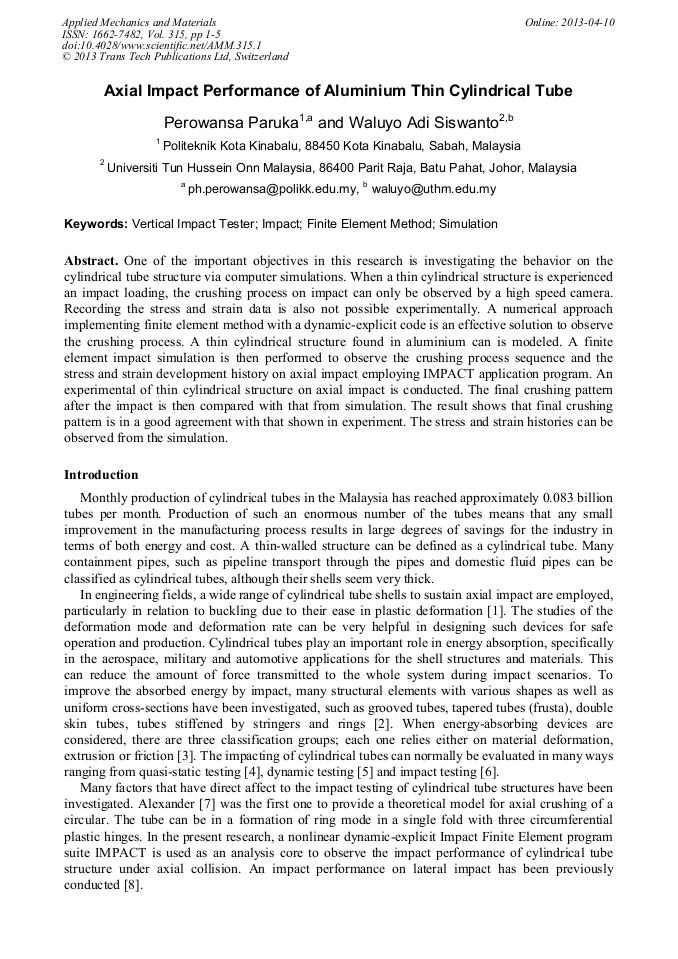

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 315)

Pages:

1-5

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.315.1

Citation:

Cite this paper

Online since:

April 2013

Authors:

Perowansa Paruka, Waluyo Adi Siswanto

Keywords:

Finite Element Method (FEM), Impact, Simulation, Vertical Impact Tester

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] E.T. Hambly, C.R. Calladine, Buckling experiment on damaged cylindrical shells, Int. J. Solids Struct. 33 (1996) 3539-3548.

DOI: 10.1016/0020-7683(95)00194-8

Google Scholar

[2] T. Adachi, A. Tomiyama, W. Araki, A. Yamaji, Energy absorption of a thin walled cylinder with ribs subjected to axial impact, Int. J. Impact Eng. 35 (2008) 65-79.

DOI: 10.1016/j.ijimpeng.2006.11.005

Google Scholar

[3] A.G. Mamalis, W. Johnson, The quasi-static crumpling of thin-walled circular cylinders and frusta under axial compression. Int. J. Mech. Sci. 25 (1983) 713-732.

DOI: 10.1016/0020-7403(83)90078-4

Google Scholar

[4] L. S. Lee, A. Ali, A. B. Sanuddin, R. Afshar, Simulation and experimental work on a thin-walled structure under crushing, J. Fail. Anal. and Preven. 10 (2010) 143-151.

DOI: 10.1007/s11668-010-9330-2

Google Scholar

[5] T.Y. Reddy, R.J. Wall, Axial compression of foam-filled thin-walled circular tubes. Int. J. Impact Eng. 7 (1988) 151-166.

DOI: 10.1016/0734-743x(88)90023-1

Google Scholar

[6] S. Ujihashi, T. Yamanaka, H. Kuroda, N. Inou, Energy absorption abilities of CFRP cylinders during impact crushing, Thin-Walled Struct. 28 (1997) 297-307.

DOI: 10.1016/s0263-8231(97)00048-7

Google Scholar

[7] J. Alexander, An approximate analysis of the collapse of thin cylindrical shells under axial load, Quart. J. Mech. App. Math. 13 (1960) 10-15.

Google Scholar

[8] W.A. Siswanto, R.Y. Sharafuddin, P. Paruka, High speed impact characteristics of plastic material based on finite element simulation, Adv. Mater. Research J. 383-390 (2011) 3229-3233.

DOI: 10.4028/www.scientific.net/amr.383-390.3229

Google Scholar

[9] P. Paruka, High Speed Impact Performance of Metal Tube Structure, B. Eng Thesis, Faculty of Mechanical and Manufacturing Engineering, UTHM, December (2011).

Google Scholar
