Investigation of RC Type Electrical Discharge Machining on ASSAB 618 Steel Using Copper Electrode

Abstract:

This paper presents the investigation on Electrical Discharge Machining (EDM) on ASSAB 618 steel using copper electrode. The sparking power was generated using Resistor Capacitor (RC) Circuit and not usual Transistor Pulse Generator Circuit. The performance of the electrodes in the EDM RC circuit was evaluated based on the achieved surface roughness with respect to material removal rate (MRR) and electrode wear ratio (EWR). In this study, investigations have been conducted with surface finish at different discharge energy output. It was found that the surface characteristics are dependent mostly on the discharge energy during machining. The fine finish electrical discharge machining requires minimization of the discharge energy supplied into the gap. In addition, the surface finish was found to be influenced greatly by the electrical and thermal properties of the electrode material.

You might also be interested in these eBooks

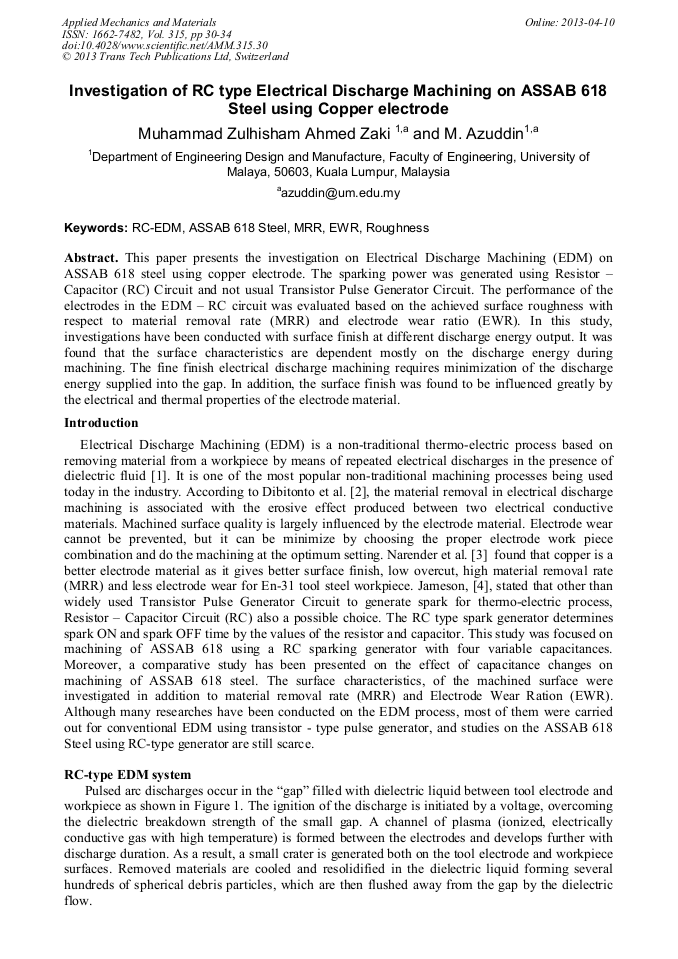

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 315)

Pages:

30-34

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.315.30

Citation:

Cite this paper

Online since:

April 2013

Authors:

Muhammad Zulhisham Ahmed Zaki, AZUDDIN BIN MAMAT

Keywords:

ASSAB 618 Steel, EWR, MRR, RC-EDM, Roughness

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] B.K. Rhoney, A.J. Shih, R.O. Scattergood, J.L. Akemon, D.J. Gust, M.B. Grant, Int. J. Mach. Tools Manuf. 42 (2002) 1355.

Google Scholar

[2] Dibitonto, D.D., Eubank, P. T., Mukunk, R. P., Barrufet, M.A., 1989, Theoretical models of the electrical discharge machining process I: a simple cathode erosion model, Journal of Applied Physics, 66, (1989), 4095-4103.

DOI: 10.1063/1.343994

Google Scholar

[3] Narender Singh, P., Raghukandan, K., Rathinasabapathi, M. and Pai, B.C. Electrical discharge machining of Al-10% SiCp as cast metal matrix composites. J. Mater. Process. Technol. 155-156, (2004) 1653-1657.

DOI: 10.1016/j.jmatprotec.2004.04.321

Google Scholar

[4] Elman C. Jameson (2001). Electrical Discharge Machining. Society of Manufacturing Engineers, United States. p.115.

Google Scholar

[5] Investigation of micro-EDM material removal characteristics using single RC-pulse discharges Y.S. Wong, M. Rahman, H.S. Lim, H. Han, N. Ravi, Journal of Materials Processing Technology 140 (2003) 303–307.

DOI: 10.1016/s0924-0136(03)00771-4

Google Scholar

[6] M.P. Jahan, Y.S. Wong, M. Rahman, A Comparative Study of Transistor and RC Pulse Generators for Micro-EDM of Tungsten Carbide, International Journal of Precision Engineering and Manufacturing, 9, (2008) 3-10.

Google Scholar
