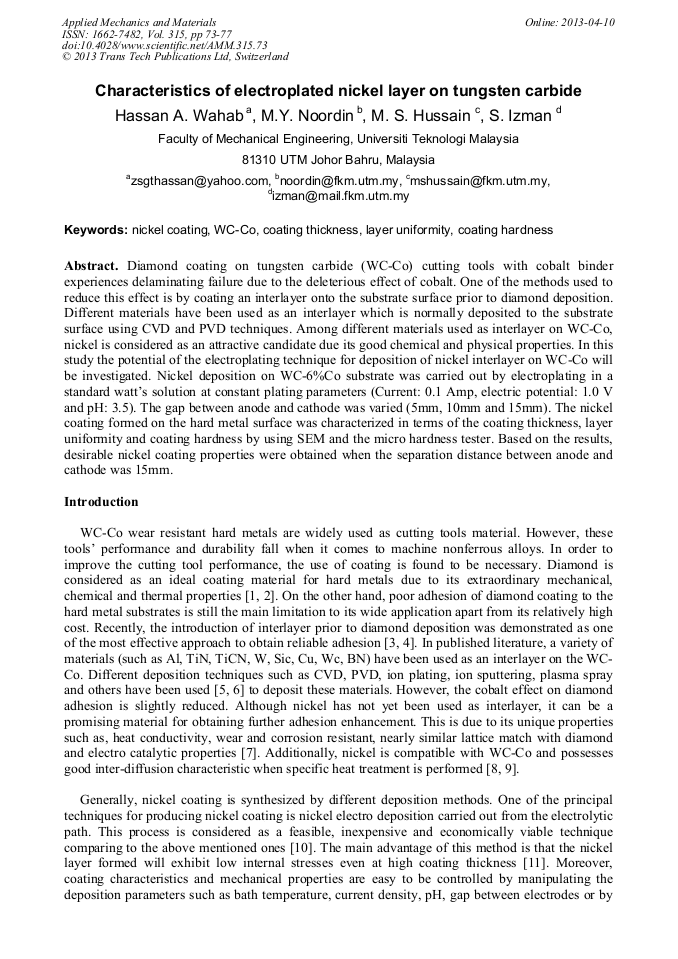

Characteristics of Electroplated Nickel Layer on Tungsten Carbide

Abstract:

Diamond coating on tungsten carbide (WC-Co) cutting tools with cobalt binder experiences delaminating failure due to the deleterious effect of cobalt. One of the methods used to reduce this effect is by coating an interlayer onto the substrate surface prior to diamond deposition. Different materials have been used as an interlayer which is normally deposited to the substrate surface using CVD and PVD techniques. Among different materials used as interlayer on WC-Co, nickel is considered as an attractive candidate due its good chemical and physical properties. In this study the potential of the electroplating technique for deposition of nickel interlayer on WC-Co will be investigated. Nickel deposition on WC-6%Co substrate was carried out by electroplating in a standard watts solution at constant plating parameters (Current: 0.1 Amp, electric potential: 1.0 V and pH: 3.5). The gap between anode and cathode was varied (5mm, 10mm and 15mm). The nickel coating formed on the hard metal surface was characterized in terms of the coating thickness, layer uniformity and coating hardness by using SEM and the micro hardness tester. Based on the results, desirable nickel coating properties were obtained when the separation distance between anode and cathode was 15mm.

• Periodical: Applied Mechanics and Materials (Volume 315)
• Pages: 73-77
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.315.73
• Online since: April 2013
• Authors: Hassan A. Wahab, M.Y. Noordin, Mohammad Sakhawat Hussain, S. Izman
• Keywords: Coating Hardness, Coating Thickness, Layer Uniformity, Nickel Coating, WC-Co

References

[1] Prabhu U. Arumugam, Ajay P. Malshe, Stephen A. Batzer: Journal of Surface & Coatings Technology. 200 (2006) 3399–3403.

DOI: 10.1016/j.surfcoat.2005.08.127

[2] A.K. Chattopadhyay, P. Roya, A. Ghosh, S.K. Sarangi: Journal of Surface & Coatings Technology. 203 (2009) 941–951.

[3] Y. Tang, Y.S. Li, Q. Yang, A. Hirose: Journal of Diamond & Related Materials. 19 (2010) 496–499.

[4] Gil Cabral, Jan Gäbler, Jörn Lindner, José Grácio, Riccardo Polini: Journal of Diamond & Related Materials. 17 (2008) 1008-1014.

DOI: 10.1016/j.diamond.2008.03.017

[5] Q.P. Wei, Z.M. Yu, L. Mab, D.F. Yin, J. Yea: Journal of Applied Surface Science 256 (2009) 1322–1328.

[6] S.K. Sarangi, A. Chattopadhyay, A.K. Chattopadhyay: Int. J. of Refractory Metals & Hard Materials. 26 (2008) 220–231.

[7] Allen Bai, Chi Chang Hu: Journal of Electrochemical Acta. 47 (2002)3447-3456.

[8] Zhang Li & Sun Baoji: Int. J. of Refractory Metals & Hard Materials. 14 (1995) 245-248.

[9] José Lemus-Ruiz, Ana L. Salas-Villaseñor, Osvaldo Flores: Journal of Advanced Materials Research. 68 (2009) 127-132.

[10] A.M. Rashidi and A. Amadeh: Journal of Material Science and Technology. 26(2010) 82-86.

[11] W. Bacher, K. Bade, B. Matthis, M. Saumer, R. Schwarz: Journal of Microsystems Technologies. 4 (1998) 117-119.

DOI: 10.1007/s005420050110

[12] Violet Vasilache, Sonia Gutt, Gheorghe Gutt, Traian Vasilache: Journal of Revue Romaine de Chimie. 54 (3) (2009) 243–246.

[13] Y.S. Dong, P.H. Lin, H.X. Wang: Journal of Surface & Coatings Technology. 200 (2006) 3633– 3636.

[14] E. Pena-Munoz, P. Bercot, A. Grosjean, M. Rezrazi, J. Pagetti: Journal of Surface and Coatings Technology. 107 (1998) 85–93.

DOI: 10.1016/s0257-8972(98)00547-7

[15] Information on properties of pure commercially nickels http: /www. nickel-alloys. net/commercially_pure_nickel. html.
