Design of Projection Light Source for Solid Volumetric True-3D Display

Abstract:

The solid volumetric true−3D display requires light source with high brightness, high energy utilization rate and high frequency color field. So high−power red, green and blue LEDs with collimators were used as the projection light source. Firstly, the required quantity of LEDs was determined according to the required output luminance, the efficiency of the projector and the red, green and blue LEDs' parameters. Secondly, with the consideration of the LEDs' dimensions, light−emitting mode and output luminous flux, collimator was designed and simulation model was established. Simulation and practical measurement results both show that light source based on high−power LED meet the requirements of the solid volumetric true−3D display.

You might also be interested in these eBooks

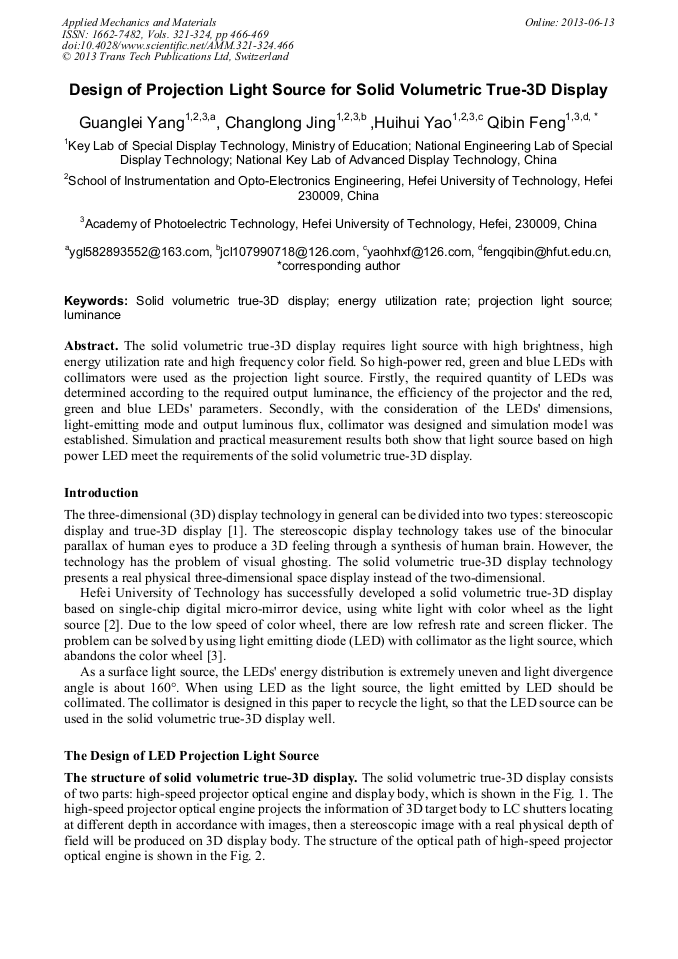

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 321-324)

Pages:

466-469

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.321-324.466

Citation:

Cite this paper

Online since:

June 2013

Authors:

Guang Lei Yang, Chang Long Jing, Hui Hui Yao, Qi Bin Feng

Keywords:

Energy Utilization Rate, Luminance, Projection Light Source, Solid Volumetric True-3D Display

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Maoyan Feng: Research of the Stereoscopic Display and 3D LCD Technique [J]. Journal of Nanjing Normal University. 2008, 8(4):195-198, In Chinese.

Google Scholar

[2] Tao Liu, Guoqiang Lv, Hao Tong: Review on Research Progress of True-3D Volumetric Display Technology [J]. Advanced Display. 2010, (117):33-40, In Chinese.

Google Scholar

[3] Hualong Zhao, Zhiyi Liang, Xingchun Shi: The Design of LED Using in Optical Projector [J]. Acta Photonica Sinica, 2007, 36 (2):244-246, In Chinese.

Google Scholar

[4] Feng Tian, Xiang Wu, Jingao Liu: Research and Realizationof Innovative LED Illumination System for DLP Projector [J]. IEEE, 2008, 194-199.

DOI: 10.1109/icalip.2008.4589987

Google Scholar

[5] Chenhui Peng, Xiaoning Li, Pu Zhang: RGB High Brightness LED Modules for Projection Display Application [J]. Journal Of Display Technology, 2011, 7(8):448-453.

DOI: 10.1109/jdt.2011.2132693

Google Scholar

[6] Huifu Zhao, Hua Liu, Qiang Sun: Design of RIXR LED collimation system [J]. Optics and Precision Engineering, 2011, 19(7):1472-1479, In Chinese.

Google Scholar
