Optimization Configuration of Servo System in CNC Machine Tool

Abstract:

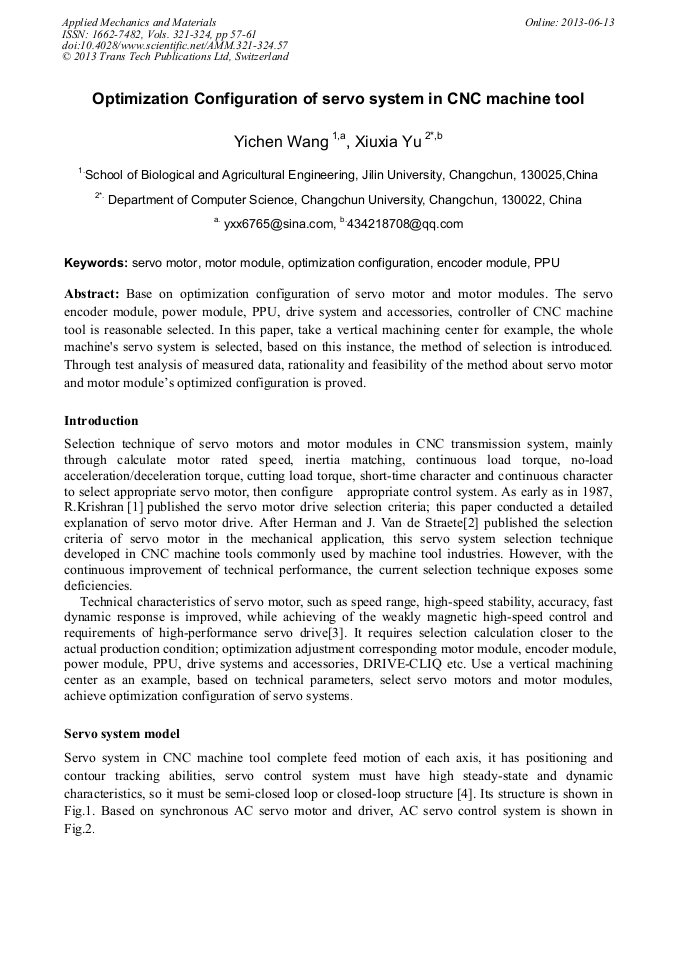

Base on optimization configuration of servo motor and motor modules. The servo encoder module, power module, PPU, drive system and accessories, controller of CNC machine tool is reasonable selected. In this paper, take a vertical machining center for example, the whole machine's servo system is selected, based on this instance, the method of selection is introduced. Through test analysis of measured data, rationality and feasibility of the method about servo motor and motor module’s optimized configuration is proved.
