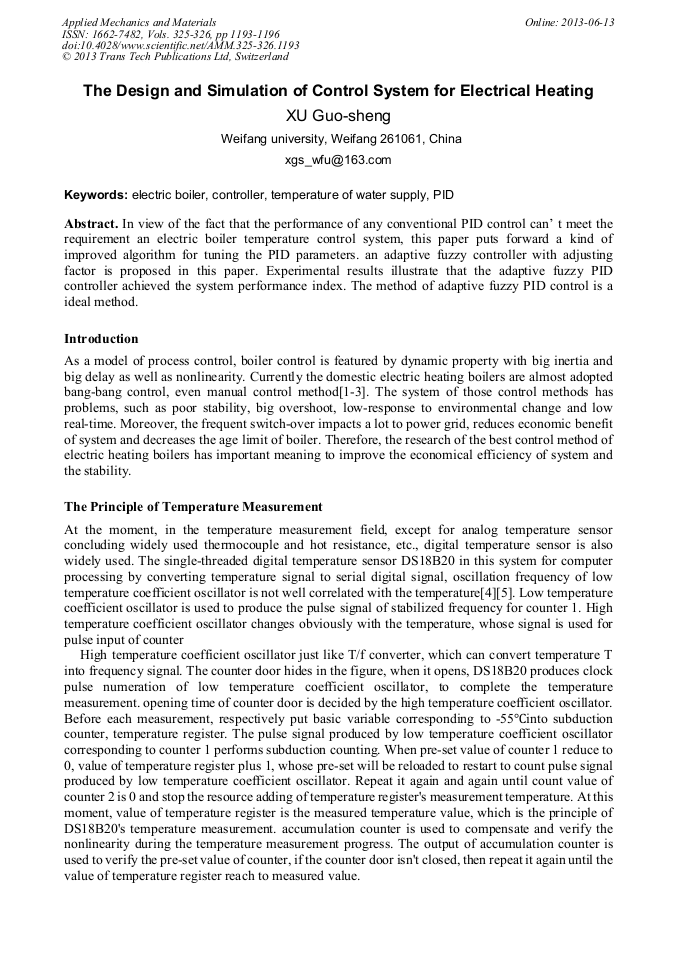

The Design and Simulation of Control System for Electrical Heating

Abstract:

In view of the fact that the performance of any conventional PID control can t meet the requirement an electric boiler temperature control system, this paper puts forward a kind of improved algorithm for tuning the PID parameters. an adaptive fuzzy controller with adjusting factor is proposed in this paper. Experimental results illustrate that the adaptive fuzzy PID controller achieved the system performance index. The method of adaptive fuzzy PID control is a ideal method.

• Periodical: Applied Mechanics and Materials (Volumes 325-326)
• Pages: 1193-1196
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.325-326.1193
• Online since: June 2013
• Authors: Guo Sheng Xu
• Keywords: Controller, Electric Boiler, PID, Temperature of Water Supply

References

[1] WANG Rui-lan. The Design of Temperature Control System for Electric Boiler Based on SCM, Journal of Weifang University, 2008, (6): 72~73

[2] Wei-Der Chang. A multi-crossover genetic approach to multivariable PID controllers tuning. Expert Systems with Applications, 2007, 33(3):620-626

DOI: 10.1016/j.eswa.2006.06.003

[3] Petrov M., Ganchev I. Taneva A. Fuzzy PID control of nonlinear plants. Intelligent Systems. 2002 First International IEEE Symposium, 2002, 1(9): 30~35.

DOI: 10.1109/is.2002.1044224

[4] Gong Changming, Deng Baoqing. Cold Start Characteristics of First Cycle in an Electronic Controlled LPG Engine [J]. Journal of Jilin University of Technology, 2005, 35(3): 273-276.

[5] Wei-Der Chang, Rey-Chue Hwang, Jer-Guang Hsieh. A multivariable on-line adaptive PID controller using auto-tuning neurons. Engineering Applications of Artificial Intelligence, 2003, 16(1):57-63

DOI: 10.1016/s0952-1976(03)00023-x

[6] Kuhu Pal, Rajani K. Mudi, Nikhil R., et al. A New Scheme for Fuzzy Rule-Based System Identification and Its Application to Self-Tuning Fuzzy Controllers. IEEE transactions on systems, man, and cybernetics—part b: cybernetics, 2002, 32(4):470-482

DOI: 10.1109/tsmcb.2002.1018766
