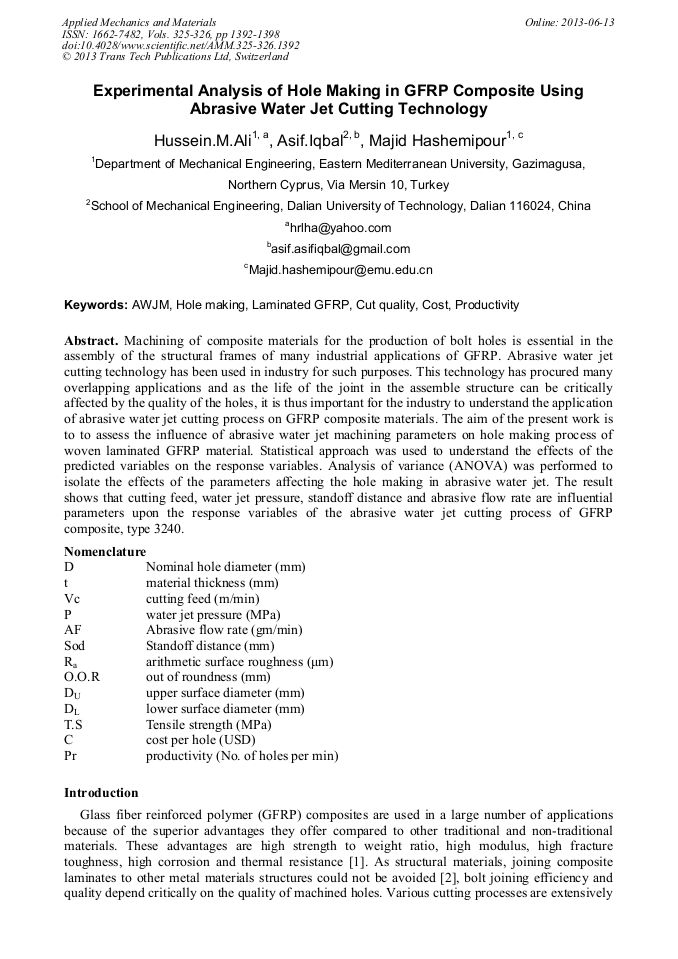

Experimental Analysis of Hole Making in GFRP Composite Using Abrasive Water Jet Cutting Technology

Abstract:

Machining of composite materials for the production of bolt holes is essential in the assembly of the structural frames of many industrial applications of GFRP. Abrasive water jet cutting technology has been used in industry for such purposes. This technology has procured many overlapping applications and as the life of the joint in the assemble structure can be critically affected by the quality of the holes, it is thus important for the industry to understand the application of abrasive water jet cutting process on GFRP composite materials. The aim of the present work is to to assess the influence of abrasive water jet machining parameters on hole making process of woven laminated GFRP material. Statistical approach was used to understand the effects of the predicted variables on the response variables. Analysis of variance (ANOVA) was performed to isolate the effects of the parameters affecting the hole making in abrasive water jet. The result shows that cutting feed, water jet pressure, standoff distance and abrasive flow rate are influential parameters upon the response variables of the abrasive water jet cutting process of GFRP composite, type 3240.

• Periodical: Applied Mechanics and Materials (Volumes 325-326)
• Pages: 1392-1398
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.325-326.1392
• Online since: June 2013
• Authors: Hussein Mohammed Ibraheem, Asif Iqbal, Majid Hashemipour
• Keywords: AWJM, Cost, Cut Quality, Hole Making, Laminated GFRP, Productivity

References

[1] E. Lemma, L. Chen and E. Siores, Study of Cutting Fiber-Reinforced Composites by Using Abrasive Water-Jet with Cutting Head Oscillation. Composite Structures. (2002), Vol. 57/1-4, pp.297-303.

DOI: 10.1016/s0263-8223(02)00097-1

[2] Hufenbach W, Dobrzan´ ski LA, Gude M, Konieczny J, Czulak A. Optimisation of rivet joints of CFRP composite material and aluminium alloy. J Achieve Mater Manuf Eng (2007), 20:119–22

[3] Teti R. Machining of composite materials. CIRP Annals – J Manuf Technol (2002), 51:611 34

[4] Abrao AM, Faria PE, Campos Rubio JC, Reis P, Davim JP. Drilling of fiber reinforced plastics: a review. J Mater Process Technol (2007), 186:1–7.

[5] Wang, J., A abrasive water jet machining of polymer matrix composites cutting performance, erosive process and predictive models, International Journal of Advanced Manufacturing Technology, (1999), 15 : 757-768

DOI: 10.1007/s001700050129

[6] H. Hocheng, A failure analysis of water jet drilling in composite laminates, International Journal of Machine Tools and Manufacture. (1990), 30/ 3:423-429.

DOI: 10.1016/0890-6955(90)90186-m

[7] M. Ramulu, M, P. Young, H. Kao, Drilling of Graphite/Bismaleimide Composite Material, Journal of Materials Engineering and Performance, (1999) 8/3:330-338.

DOI: 10.1361/105994999770346882

[8] H. Hocheng, C.C. Tsao, The path towards delamination-free drilling of composite materials, Journal of Materials Processing Technology, (2005), 167 : 251-264.

DOI: 10.1016/j.jmatprotec.2005.06.039

[9] ASTM International, ASTM D5766 / D5766M - 11 Standard Test Method for Open-Hole Tensile Strength of Polymer Matrix Composite Laminates. Book of Standards Volume: 15.03

DOI: 10.1520/d5766_d5766m-11r18

[10] D.K. Shanmugam, S.H. Masood, An investigation on kerf characteristics in abrasive waterjet cutting of layered composites, Journal of Materials Processing Technology ( 2009 ), 209 3887–3893

DOI: 10.1016/j.jmatprotec.2008.09.001
