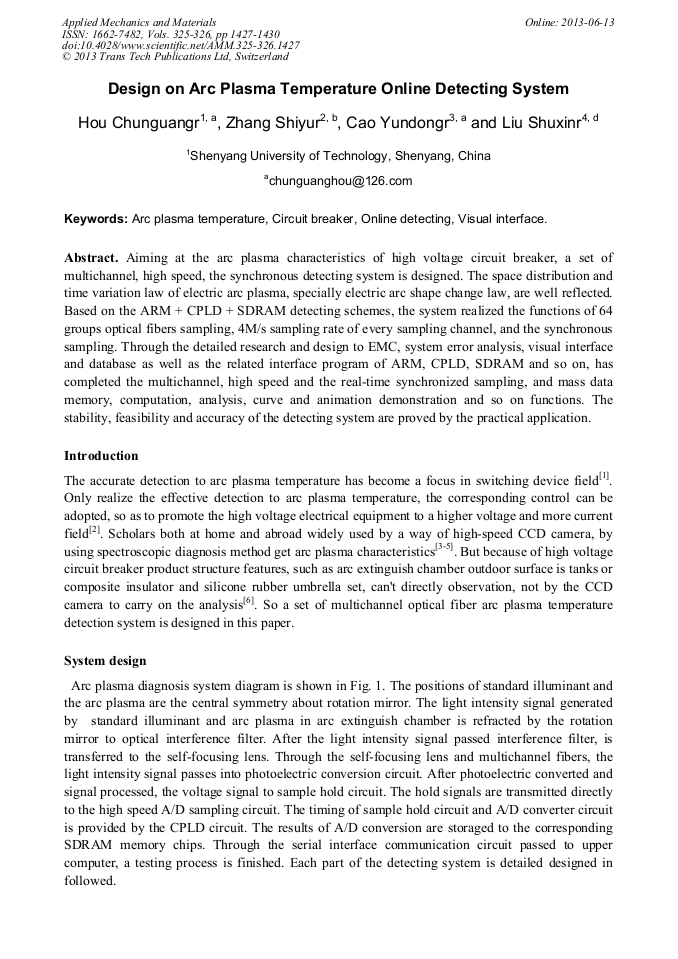

Design on Arc Plasma Temperature Online Detecting System

Abstract:

Aiming at the arc plasma characteristics of high voltage circuit breaker, a set of multichannel, high speed, the synchronous detecting system is designed. The space distribution and time variation law of electric arc plasma, specially electric arc shape change law, are well reflected. Based on the ARM + CPLD + SDRAM detecting schemes, the system realized the functions of 64 groups optical fibers sampling, 4M/s sampling rate of every sampling channel, and the synchronous sampling. Through the detailed research and design to EMC, system error analysis, visual interface and database as well as the related interface program of ARM, CPLD, SDRAM and so on, has completed the multichannel, high speed and the real-time synchronized sampling, and mass data memory, computation, analysis, curve and animation demonstration and so on functions. The stability, feasibility and accuracy of the detecting system are proved by the practical application.

• Periodical: Applied Mechanics and Materials (Volumes 325-326)
• Pages: 1427-1430
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.325-326.1427
• Online since: June 2013
• Authors: Chun Guang Hou, Shi Yu Zhang, Yun Dong Cao, Shu Xin Liu
• Keywords: Arc Plasma Temperature, Circuit Breaker, Online Detecting, Visual Interface

References

[1] Weaver P.M., McBride I.W. Imaging of Contact and Arc Motion in Current Limiting Circuit Breakers. IC-ECAAA1993: 419~424.

[2] Y J Shin, K Y Park, K C Chang et al. Development of 800 kV Model Interrupter for UHV Transmission System. ICGDTA1995: 424~427.

[3] G.C. Damstra, W.F.H. Merck. Application of high speed photography for high current vacuum arcs. ISDEIV1998: 264~267.

[4] VP. Afanas'ev, A.M. Chaly. Computer-aided reconstruction of the cathode image in high current vacuum arc from the results of high speed photography. ISDEIV2000: 231~234.

DOI: 10.1109/deiv.2000.877292

[5] Wenkai Shang, Edgar Dullni, Harald Fink, et al. Optical investigations of dynamic vacuum arc mode changes with different axial magnetic field contacts. IEEE Transactions on Plasmas Science, 2003, 31(5): 187~191.

DOI: 10.1109/tps.2003.818426

[6] T.Uchii, T. Nakamoto, S. Nishiwaki, et al. Optimization of Dead Tank Gas Circuit Breaker Design Based on Quantification of Hot Gas Flow and Dielectric Properties. IEEE Transactions on Power Delivery, 2004, 19(1): 181~185.

DOI: 10.1109/tpwrd.2003.820217
