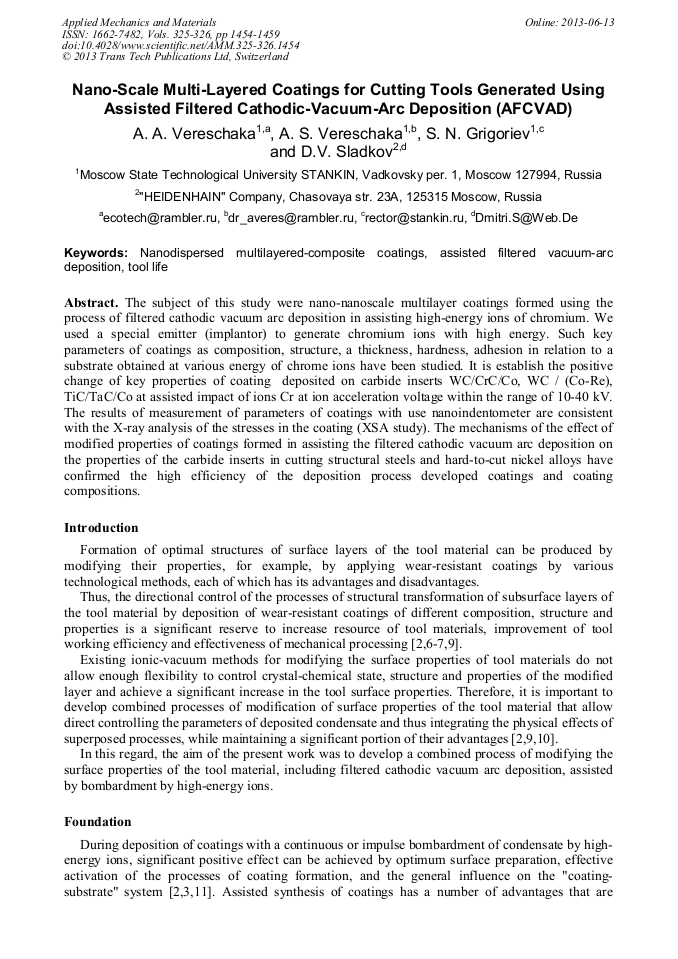

Nano-Scale Multi-Layered Coatings for Cutting Tools Generated Using Assisted Filtered Cathodic-Vacuum-Arc Deposition (AFCVAD)

Abstract:

The subject of this study were nano-nanoscale multilayer coatings formed using the process of filtered cathodic vacuum arc deposition in assisting high-energy ions of chromium. We used a special emitter (implantor) to generate chromium ions with high energy. Such key parameters of coatings as composition, structure, a thickness, hardness, adhesion in relation to a substrate obtained at various energy of chrome ions have been studied. It is establish the positive change of key properties of coating deposited on carbide inserts WC/CrC/Co, WC / (Co-Re), TiC/TaC/Co at assisted impact of ions Cr at ion acceleration voltage within the range of 10-40 kV. The results of measurement of parameters of coatings with use nanoindentometer are consistent with the X-ray analysis of the stresses in the coating (XSA study). The mechanisms of the effect of modified properties of coatings formed in assisting the filtered cathodic vacuum arc deposition on the properties of the carbide inserts in cutting structural steels and hard-to-cut nickel alloys have confirmed the high efficiency of the deposition process developed coatings and coating compositions.

• Periodical: Applied Mechanics and Materials (Volumes 325-326)
• Pages: 1454-1459
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.325-326.1454
• Online since: June 2013
• Authors: A.A. Vereschaka, A.S. Vereschaka, S.N. Grigoriev, D.V. Sladkov
• Keywords: Assisted Filtered Vacuum-Arc Deposition, Nanodispersed Multilayered-Composite Coatings, Tool Life

References

[1] A.Panckow, D.Sladkov, Panan K. Singh, C. Genzel. Surf. Coat. Technol. 188-189 (2004) p.214.

[2] A.S. Vereschaka. Working capacity of the cutting tool with wear resistant coatings - М: Mashinostroenie. (1993), p.336

[3] A.S. Vereshchaka, O.I. Obrezkov, L Dubner. Development of technology for the synthesis of vacuum arc coating assisting by a high-energy ions. Proceedings of the Int. Scient. Conf. "Protec-02". V.1. M. (2002), p.139.

[4] A.S. Vereschaka, A.A. Vereschaka. Functional coаtings for an edge cutting tools. Technology of hardening and coatings № 6. (2010), p.28.

[5] A.S. Vereschaka. A.A. Vereschaka. A.K. Kirillov. Ecologically friendly dry machining by cutting tool from layered composition ceramic with nano-scale multilayered coating. Key Eng. Materials Vol.496 (2012), p.67.

DOI: 10.4028/www.scientific.net/kem.496.67

[6] Metel A.; Grigoriev S.; Melnik Y. et al. Cutting tools nitriding in plasma produced by a fast neutral molecule beam // Japanese Journal of Applied Physics. V 50 No. 8. Article 08JG04 (2011).

DOI: 10.1143/jjap.50.08jg04

[7] Grigoriev S.N., Vereschaka A.A., Vereschaka, A.S., Kutin A.A. Cutting tools made of layered composite ceramics with nano-scale multilayered coatings. Procedia CIRP 1 (2012), p.318 – 323.

DOI: 10.1016/j.procir.2012.04.054

[8] Ch. Genzel, Adv. X-ray Anal. 44 (2001), p.247.

[9] G.S. Fox-Robinovich, A. Kovalev, M.H. Aguirre at al. Surf. Coat. Technol. 204 (2009), p.489.

[10] Metel A.S., Grigoriev C.N., Melnik Yu.A. et. al. Glow discharge with electrostatic confinement of electrons in a chamber bombardment by fast electrons // Plasma physics reports. Vol.37, N 7, (2011), p.628.

DOI: 10.1134/s1063780x11050072

[11] A.S. Vereshchaka, B. Karpuschewski, L. Dubner. Development of the method of obtaining nanostructured functional coatings. Proceedings of the Intern. Scient. Conf. "Production. Technology". V.1. (2008), p.62.
