Kinematics and Dynamics Simulation of a New Type Direct-Drive NC Turret Tool Post

Abstract:

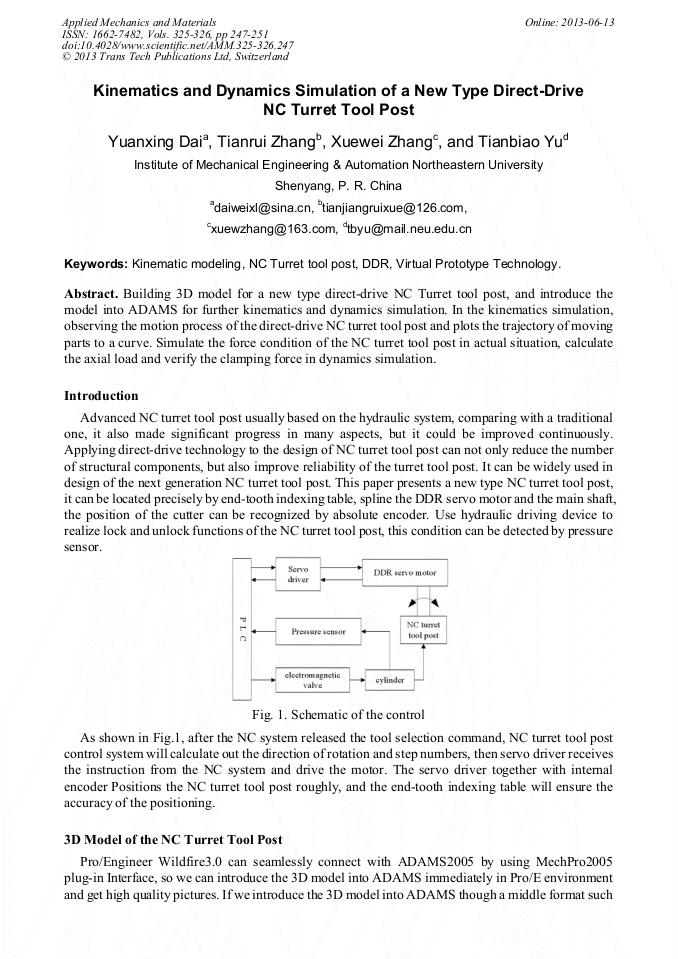

Building 3D model for a new type direct-drive NC Turret tool post, and introduce the model into ADAMS for further kinematics and dynamics simulation. In the kinematics simulation, observing the motion process of the direct-drive NC turret tool post and plots the trajectory of moving parts to a curve. Simulate the force condition of the NC turret tool post in actual situation, calculate the axial load and verify the clamping force in dynamics simulation.
