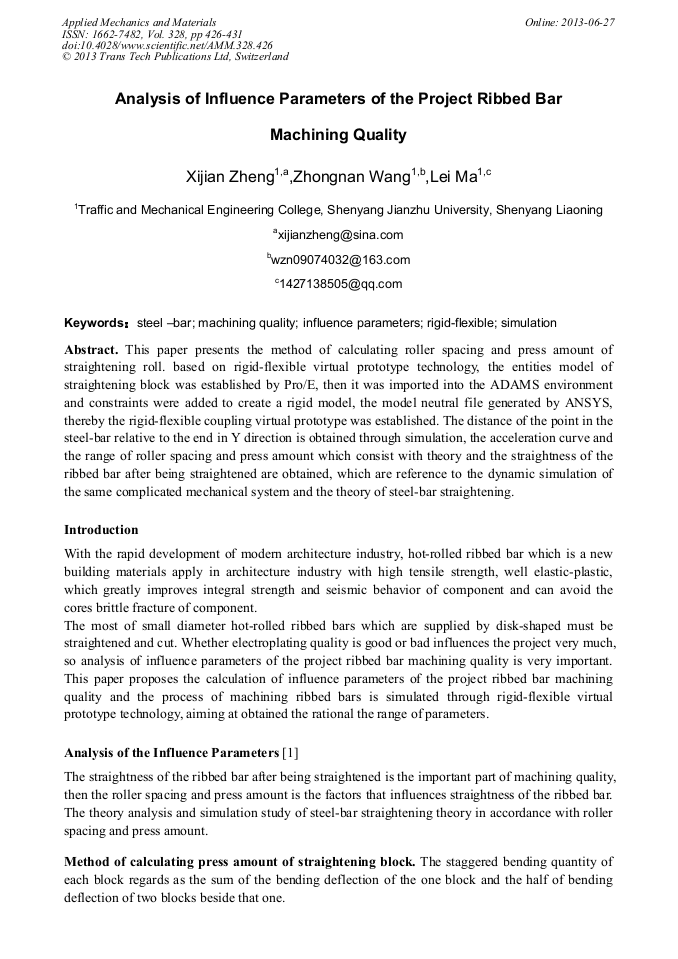

Analysis of Influence Parameters of the Project Ribbed Bar Machining Quality

Abstract:

This paper presents the method of calculating roller spacing and press amount of straightening roll. based on rigid-flexible virtual prototype technology, the entities model of straightening block was established by Pro/E, then it was imported into the ADAMS environment and constraints were added to create a rigid model, the model neutral file generated by ANSYS, thereby the rigid-flexible coupling virtual prototype was established. The distance of the point in the steel-bar relative to the end in Y direction is obtained through simulation, the acceleration curve and the range of roller spacing and press amount which consist with theory and the straightness of the ribbed bar after being straightened are obtained, which are reference to the dynamic simulation of the same complicated mechanical system and the theory of steel-bar straightening.
