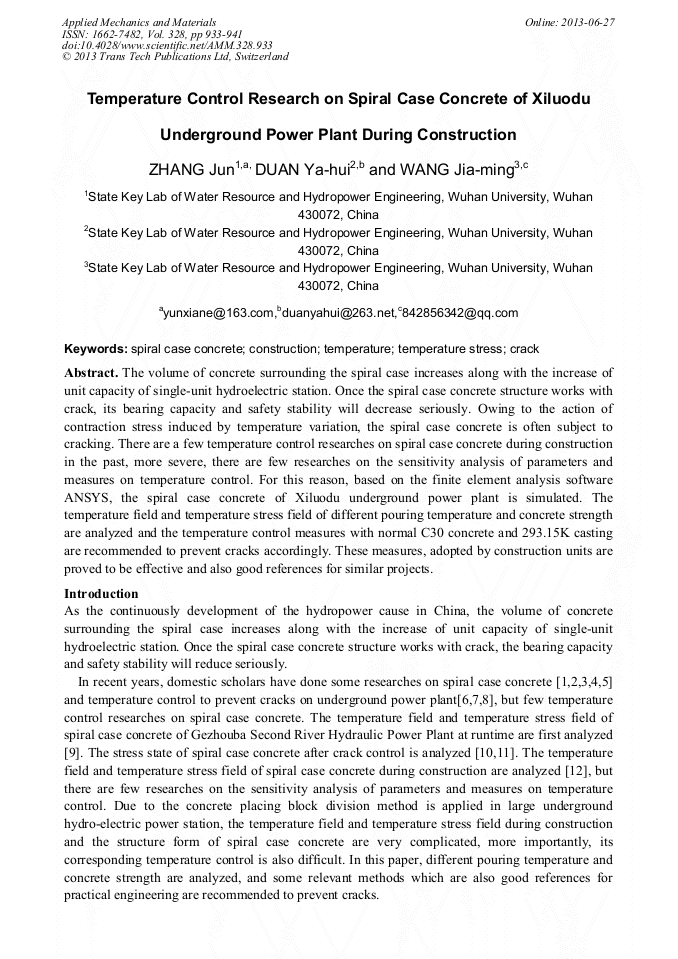

Temperature Control Research on Spiral Case Concrete of Xiluodu Underground Power Plant during Construction

Abstract:

The volume of concrete surrounding the spiral case increases along with the increase of unit capacity of single-unit hydroelectric station. Once the spiral case concrete structure works with crack, its bearing capacity and safety stability will decrease seriously. Owing to the action of contraction stress induced by temperature variation, the spiral case concrete is often subject to cracking. There are a few temperature control researches on spiral case concrete during construction in the past, more severe, there are few researches on the sensitivity analysis of parameters and measures on temperature control. For this reason, based on the finite element analysis software ANSYS, the spiral case concrete of Xiluodu underground power plant is simulated. The temperature field and temperature stress field of different pouring temperature and concrete strength are analyzed and the temperature control measures with normal C30 concrete and 293.15K casting are recommended to prevent cracks accordingly. These measures, adopted by construction units are proved to be effective and also good references for similar projects.

• Periodical: Applied Mechanics and Materials (Volume 328)
• Pages: 933-941
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.328.933
• Online since: June 2013
• Authors: Jun Zhang, Ya Hui Duan, Jia Ming Wang
• Keywords: Construction, Crack, Spiral Case Concrete, Temperature, Temperature Stress

References

[1] Qin Jizhang, Ma Shanding, Wu Hegao, et al. 3D FEM analysis for surrounding concrete of steel spiral case keeping constant internal pressure. Journal of Hydraulic Engineering (2001).

[2] Lin Shaozhong, Su Haidong, 3D FEM analysis for surrounding concrete of steel spiral case keeping internal pressure during construction. Journal of Hydraulic Engineering (2002).

DOI: 10.1007/978-3-540-75999-7_86

[3] Fu Hongxia, Ma Zhenyue, Dong Yuxin. Study on structure of cushion layer for spiral case in hydropower station. Journal of Hydraulic Engineering (2003).

[4] Wu Hegao, Ma Shanding, Bai Jianming. 2D nonlinear analysis for the spiral case of Three Gorges Power Station. Journal of Hydraulic Engineering (2003).

[5] Wu Hegao, Jiang Kuichao, Shen yan, et al. Three-dimensional nonlinear finite element static calculation of complete bearing spiral case. Journal of Hydraulic Engineering (2006).

[6] Wang Yong, Duan Yahui, Huang Jinsong, et al. Temperature control study on lining concrete of conveyance tunnel of permanent ship lock in Three Gorges Project. Engineering Journal of Wuhan University, (2001), 34(3):32-36.

[7] Fang Chaoyang, Duan Yahui. Analysis of temperature and thermal stresses observations on concrete lining of water delivery tunnel of Three Gorges Project. Engineering Journal of Wuhan University, (2003), 36(5):30-34.

[8] Duan Yahui, Fang Chaoyang, Fan Qixiang, et al. Study on field temperature experiment for concrete lining of water-conveying tunnel of permanent shiplock in Three Gorges Project. Chinese Journal of Rock Mechanics and Engineering, (2006), 25(1):129-135.

[9] Li Shixi, Pan Dejia. Three-dimensional unsteady temperature field and temperature stress calculation and analysis of Gezhouba Second River Hydraulic Power Plant spiral case concrete People's Yangtze river (1981)4:16-25.

[10] Liu Guohua, Wang Zhenyu, Qian Jinglin. Analytical research on FEM for concrete volute chamber China rural water and hydropower, (2002), 11:47-50.

[11] Liu Guohua, Wang Zhenyu, Qian Jinglin. Analysis and treatment of cracks in the spiral case of hydropower station. Journal of Hydroelectric Engineering( 2002)，4:46-48.

[12] Xu Xinyong. Research on construction measure and temperature control for spiral case keeping constant internal pressure. Dalian University of Technology, (2010).
