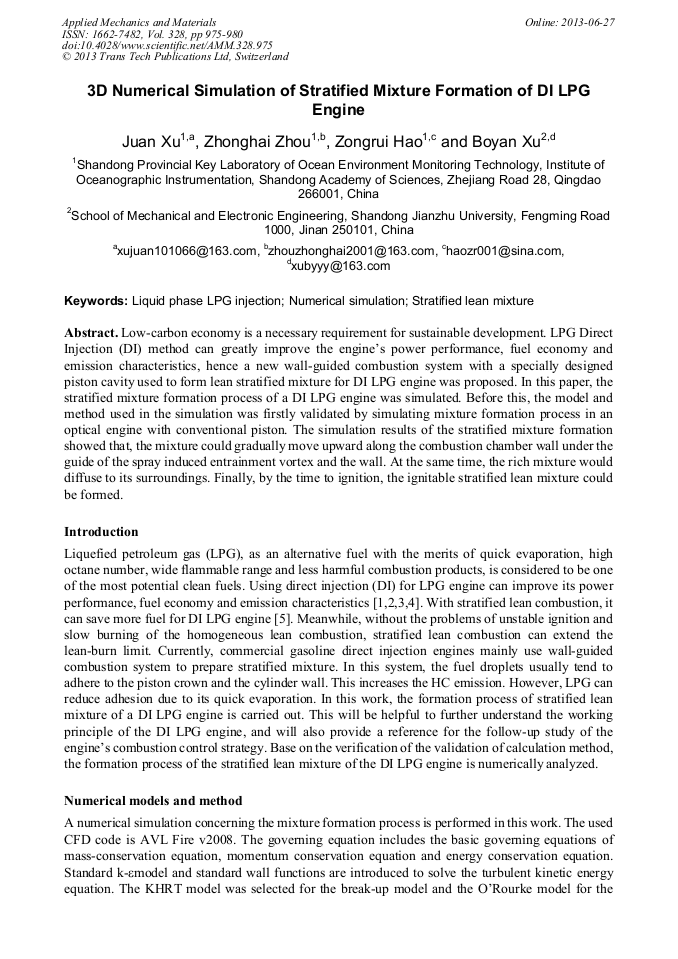

3D Numerical Simulation of Stratified Mixture Formation of DI LPG Engine

Abstract:

Low-carbon economy is a necessary requirement for sustainable development. LPG Direct Injection (DI) method can greatly improve the engines power performance, fuel economy and emission characteristics, hence a new wall-guided combustion system with a specially designed piston cavity used to form lean stratified mixture for DI LPG engine was proposed. In this paper, the stratified mixture formation process of a DI LPG engine was simulated. Before this, the model and method used in the simulation was firstly validated by simulating mixture formation process in an optical engine with conventional piston. The simulation results of the stratified mixture formation showed that, the mixture could gradually move upward along the combustion chamber wall under the guide of the spray induced entrainment vortex and the wall. At the same time, the rich mixture would diffuse to its surroundings. Finally, by the time to ignition, the ignitable stratified lean mixture could be formed.

• Periodical: Applied Mechanics and Materials (Volume 328)
• Pages: 975-980
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.328.975
• Online since: June 2013
• Authors: Juan Xu, Zhong Hai Zhou, Zong Rui Hao, Bo Yan Xu
• Keywords: Liquid Phase LPG Injection, Numerical Simulation, Stratified Lean Mixture

References

[1] Teoh, Y., Gitano-Briggs, H., and Mustafa, K. Performance Characterization of a Direct Injection LPG Fuelled Two-Stroke Motorcycle Engine, SAE Technical Paper 2008-32-0045

DOI: 10.4271/2008-32-0045

[2] IMPCO Technologies. Additional Development of a Dedicated Liquefied Petroleum Gas (LPG) Ultra Low Emissions Vehicle (ULEV). Golden:National Renewable Energy Laboratory, (1998)

DOI: 10.2172/6575

[3] Boretti, A. and Grummisch, C. 100% LPG Long Haul Truck Conversion - Economy and Environmental Benefits, SAE Technical Paper 2012-01-(1983)

DOI: 10.4271/2012-01-1983

[4] Oh, S., Lee, S., Choi, Y., Kang, K. et al. Combustion and Emission Characteristics in a Direct Injection LPG/Gasoline Spark Ignition Engine, SAE Technical Paper 2010-01-1461

DOI: 10.4271/2010-01-1461

[5] Kettner M, Rothe M and Velji A. A New Flame Jet Concept to Improve the Inflammation of Lean Burn Mixture in SI Engines. SAE Technical Paper 2005-01-3688

DOI: 10.4271/2005-01-3688

[6] O'Rourke P J and Bracco F V. Modelling of Drop Interactions in Thick Sprays and a Comparison With Experiments. Proceedings Of The Institution Of Mechanical Engineers, 1980, 9:101-106

[7] AVL List GMBH. Fire User Manual. Version 2008, (2008)

[8] Dukowicz J K. Quasi-steady droplet phase change in the presence of convection.New Mexico:Los Alamos Scientific Laboratory, 1979, LA7997-MS

DOI: 10.2172/6012968

[9] Xu B, Geng D andLiu H et al. Simulation and Visualization of Liquid Phase LPG Spray. Transactions of CSICE, 2009, 27:146-152 (In Chinese)

[10] Partaker S V. Numerical heat transfer and fluid flow. New York: Hemisphere Public Corporation,1981.126-130
