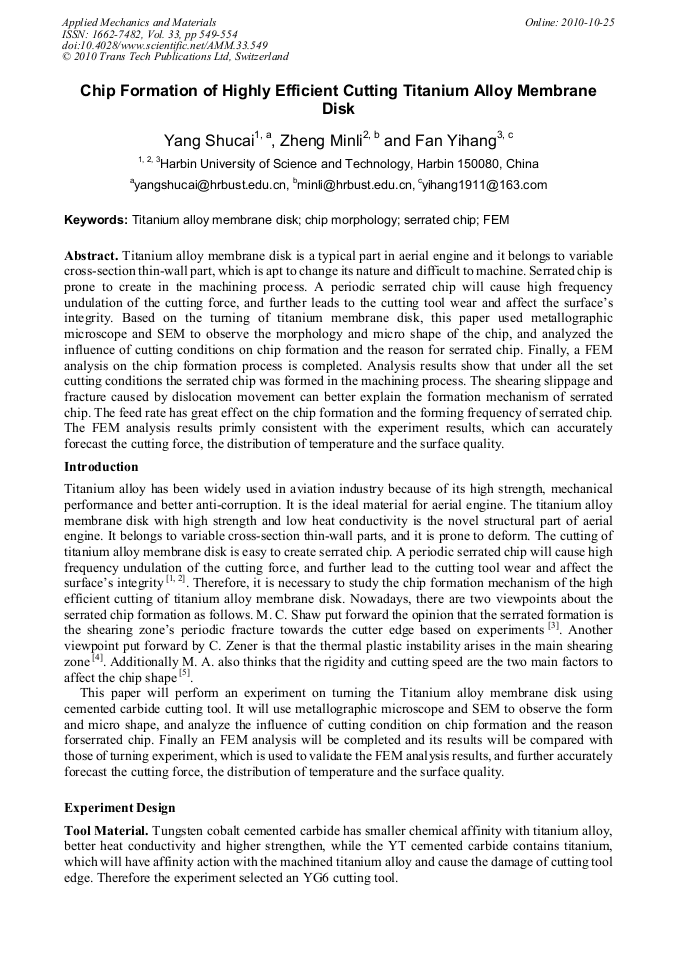

Chip Formation of Highly Efficient Cutting Titanium Alloy Membrane Disk

Abstract:

Titanium alloy membrane disk is a typical part in aerial engine and it belongs to variable cross-section thin-wall part, which is apt to change its nature and difficult to machine. Serrated chip is prone to create in the machining process. A periodic serrated chip will cause high frequency undulation of the cutting force, and further leads to the cutting tool wear and affect the surface’s integrity. Based on the turning of titanium membrane disk, this paper used metallographic microscope and SEM to observe the morphology and micro shape of the chip, and analyzed the influence of cutting conditions on chip formation and the reason for serrated chip. Finally, a FEM analysis on the chip formation process is completed. Analysis results show that under all the set cutting conditions the serrated chip was formed in the machining process. The shearing slippage and fracture caused by dislocation movement can better explain the formation mechanism of serrated chip. The feed rate has great effect on the chip formation and the forming frequency of serrated chip. The FEM analysis results primly consistent with the experiment results, which can accurately forecast the cutting force, the distribution of temperature and the surface quality.

• Periodical: Applied Mechanics and Materials (Volume 33)
• Pages: 549-554
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.33.549
• Online since: October 2010
• Authors: Shu Cai Yang, Min Li Zheng, Yi Hang Fan
• Keywords: Chip Morphology, Finite Element Model (FEM), Serrated Chip, Titanium Alloy Membrane Disk

References

[1] C.Z. Jin, C.D. Jia and Z.J. Zhang: Mechanical Design and Manufacture Vol. 5 (2001), p.83.

[2] M. Brandt, M. S. Dargusch and S. Sun: International Journal of Machine Tools & Manufacture Vol. 49 (2009) , pp.561-568.

[3] M.C. Shaw, A. Vyas: Annals of the CIRP Vol. 47(1998), pp.77-82.

[4] C. Zener: Fracture of Metals, ASME, (1948).

[5] J.L. Chen, J.F. Li, J. Sun, et al: Combined Machine and Autonomous Machining Technology Vol. 1 (2007), pp.25-31.

[6] M.A. Davies, Y. Chou and C. J. Evans: Annals of the ClRP Vol. 45 (1998), pp.77-82.

[7] G.R. Poulachon, L. Alphonse and H. Moisanard: Transactions of the ASME Vol. 122(2000), pp.406-412.

[8] J. Friader: Dislocation (Science Press, Beijing 1984).
