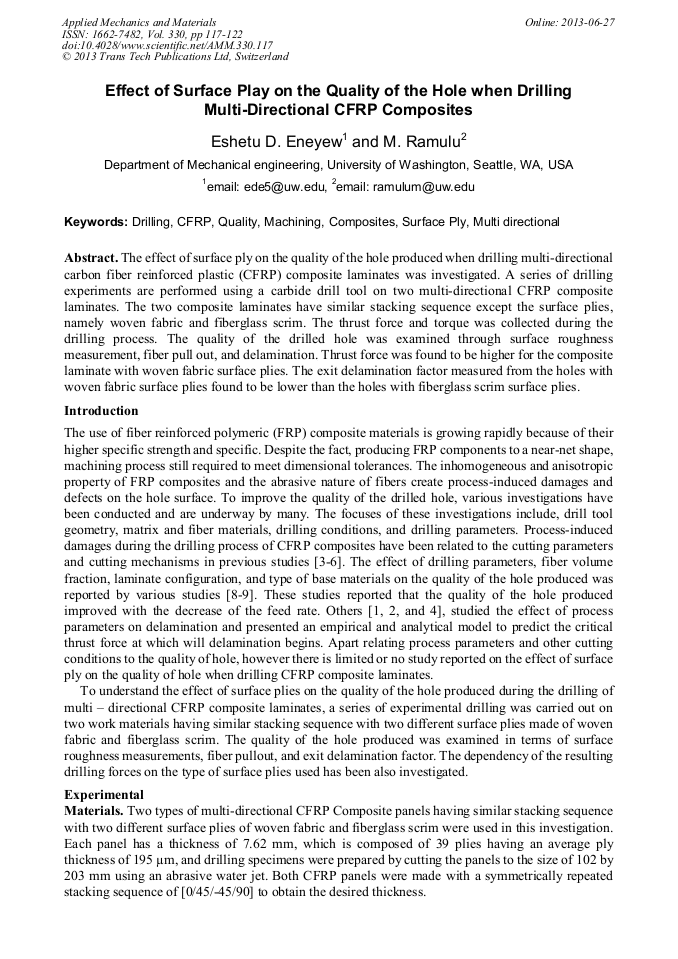

Effect of Surface Play on the Quality of the Hole when Drilling Multi-Directional CFRP Composites

Abstract:

The effect of surface ply on the quality of the hole produced when drilling multi-directional carbon fiber reinforced plastic (CFRP) composite laminates was investigated. A series of drilling experiments are performed using a carbide drill tool on two multi-directional CFRP composite laminates. The two composite laminates have similar stacking sequence except the surface plies, namely woven fabric and fiberglass scrim. The thrust force and torque was collected during the drilling process. The quality of the drilled hole was examined through surface roughness measurement, fiber pull out, and delamination. Thrust force was found to be higher for the composite laminate with woven fabric surface plies. The exit delamination factor measured from the holes with woven fabric surface plies found to be lower than the holes with fiberglass scrim surface plies.

• Periodical: Applied Mechanics and Materials (Volume 330)
• Pages: 117-122
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.330.117
• Online since: June 2013
• Authors: Eshetu D. Eneyew, M. Ramulu
• Keywords: Carbon Fiber Reinforced Polymer/Plastic (CFRP), Composite, Drilling, Machining, Multi Directional, Quality, Surface Ply

References

[1] H. Ho-Cheng and C. K. H. Dharan, "Delamination during Drilling in Composite Laminates", Journal of engineering for Industry, Vol. 112, 1990, pp.236-239.

DOI: 10.1115/1.2899580

[2] S. Jain and D. C. H. Yang, "Effect of Feed rate and Chisel Edge on Delamination in Composite Drilling", Journal of Engineering for Industry, Vol. 115, No. 4, 1993, p.398 – 405.

DOI: 10.1115/1.2901782

[3] K. Colligan and M. Ramulu, "An Experimental Investigation into Pitting of Hole Surfaces when Drilling Graphite/Epoxy", Processing Fabrication and Manufacturing of Composite Materials, ASME Bound Volume, MD-Vol. 35,1992, pp.11-25.

[4] S. Gururaja and M. Ramulu, "Modified Exit-ply Delamination Model for Drilling FRPs", Journal of Composite Materials, Vol. 43, No. 05, 2009, pp.483-500.

DOI: 10.1177/0021998308097677

[5] D. Kim and M. Ramulu, "Frequency Analysis and Process Monitoring in Drilling of Composite Materials", Advanced Composites Letters, Vol. 13, No. 4, 2004, pp.185-192.

DOI: 10.1177/096369350401300402

[6] W-C. Chen, "Some Experimental Investigations in the Drilling of Carbon Fiber-Reinforced Plastics (CFRP) Composite Laminates", Int. J. Tools Manufact., Vol. 8, 1997, pp.1097-1108.

DOI: 10.1016/s0890-6955(96)00095-8

[7] D. H. Wang, M. Ramulu, and D. Arola, "Orthogonal Cutting Mechanisms of Graphite/Epoxy Composite, Part I: Unidirectional Laminate", Int. J. Mach. Tools Manufact. Vol. 35, No. 12, 1995, pp.1623-1638.

DOI: 10.1016/0890-6955(95)00014-o

[8] I. El-Sonbaty, U. A. Khashaba, and T. Machaly, "Factors Affecting the Machinability of GFRP/Epoxy Composites", Composite Structures, Vol. 63, 2004, pp.329-338.

DOI: 10.1016/s0263-8223(03)00181-8

[9] Shyha, Soo, Aspinwall, and Bradley, "Effect of Laminate Configuration and Feed Rate on Cutting Performance when Drilling Holes in Carbon Fiber Reinforced Composites", Journal of Materials Processing Technology, Vol. 210, 2010, pp.1023-1034.

DOI: 10.1016/j.jmatprotec.2010.02.011

[10] D Abdul Budan and S Vijayarangan, "Quality Assessment and Delamination Force Evaluation in Drilling Glass Fiber – Reinforced Plastic Laminates – a Finite element Analysis and Linear Elastic Fracture Mechanics Approach", Proc. Instn. Mech Engrs, Vol. 216, Part B: J engineering manufacture, 2010, pp.173-182.

DOI: 10.1243/0954405021519825
