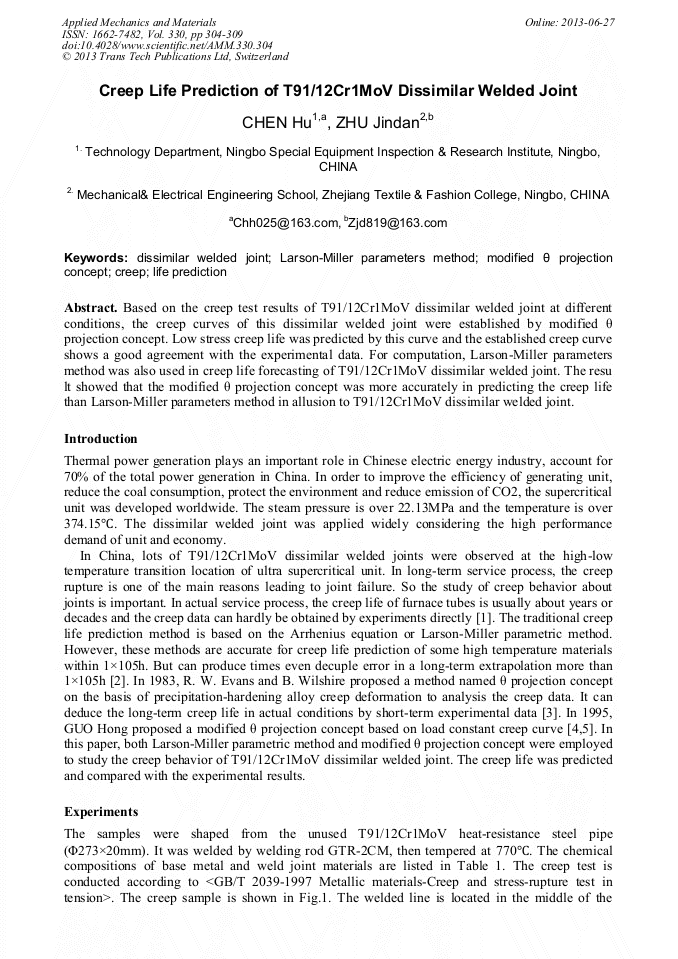

Creep Life Prediction of T91/12Cr1MoV Dissimilar Welded Joint

Abstract:

Based on the creep test results of T91/12Cr1MoV dissimilar welded joint at different conditions, the creep curves of this dissimilar welded joint were established by modified θ projection concept. Low stress creep life was predicted by this curve and the established creep curve shows a good agreement with the experimental data. For computation, Larson-Miller parameters method was also used in creep life forecasting of T91/12Cr1MoV dissimilar welded joint. The resu lt showed that the modified θ projection concept was more accurately in predicting the creep life than Larson-Miller parameters method in allusion to T91/12Cr1MoV dissimilar welded joint.

• Periodical: Applied Mechanics and Materials (Volume 330)
• Pages: 304-309
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.330.304
• Online since: June 2013
• Authors: Hu Chen, Jin Dan Zhu
• Keywords: Creep, Dissimilar Welded Joint, Larson-Miller Parameters Method, Life Prediction, Modified θ Projection Concept

References

[1] Wilshire B, "New high-precision creep procedures for accurate life extension of plant," International Journal of Pressure Vessels and Piping, vol. 39, pp.73-82, 1989.

DOI: 10.1016/0308-0161(89)90039-2

[2] Tu Shandong, Xuan Fuzhen and Wang Weize, "Some critical issues in creep and fracture assessment at high temperature," Acta Metallurgica Sinica,vol. 45(7), pp.781-787, 2009.

[3] Evans R W, Parker J D and Wilshire B, "An extrapolation procedure for long-term creep strain and creep life prediction with special reference to 0.5Cr0.5Mo0.25V ferritic steels," in Recent Advances in Creep and Fatigue of Engineering Materials and Structures, Pineridge Press: pp.135-167, 1983.

[4] Guo Hong , Zhang Wen quan，"Application of θ Projection Concept in Creep Life Prediction for SM41C Steel," Journal of iron and steel research, vol.12(5), pp.54-57, 2000.

[5] Guo Hong, Zhang Wen quan and Ren Hui ping, "A Modified Method to Predict Creep Life of High Temperature Structure," Journal of material engineering, vol.2, pp.34-36, 2000.

[6] Guo Hong, "Research on Fatigue-Creep Interaction Behaviour of a Nickel-Base Single Crystal Superalloy," Beijing: University of Science and Technology Beijing, 1995.

[7] Evans R W, Beden I, and Wilshire B, "Creep and fracture of engineering materials and structure," Swansea, UK: Pineridge Press, 1984.

[8] Frost H J, Ashby M F, "Deformation-mechanism maps: the plasticity and creep of metals and ceramics," London, UK: Pegramon Press, 1982.

[9] Chen G L, Guo H, Sun J Y, Shu G G, Li Y M. J Univ Sci Tech1997, 19: 157.

[10] Zhao Jiaping, Li Baocheng, "A Mathematical Model of Tempering Parameter and Figure HTT for Quenched Steels," Metal science and technology, vol. 7(2), pp.32-39, 1988.
