Effects of Sintering Temperature on the Phase Changes of Woodceramics Prepared from Liquefication Wood

De Lin Sun; Xian Chun Yu

doi:10.4028/www.scientific.net/AMM.331.448

Paper Titles

Synthesis, Characterization and Ring-Opening Polymerization of Macrocyclic Aryl Ketone Oligomers Containing the Phthaloyl Moiety
p.431

Rheological Behavior during Melt Ring-Opening Polymerization of Macrocyclic Aryl Ester Dimer
p.435

EMI Shielding Effectiveness of CNTs Composites
p.439

Microstructure and Microtexture Evolution during Batch Annealing of Warm-Rolled Ti-IF Steel Sheets
p.443

Effects of Sintering Temperature on the Phase Changes of Woodceramics Prepared from Liquefication Wood
p.448

Morphology and Field-Effect Mobility Characterization of Planar Five-Ring-Fused Dithiophene-Dione
p.452

A Method to Determine Fracture Toughness Using Berkovich Indenter for Bulk Materials
p.456

Fabrication and Photocatalytic Performance of Titanium Dioxide Nanoparticle/Polymethylmethacrylate
p.461

Graft Polymerization of Acrylic Acid onto Polypropylene Film: Immobilization of Chitosan Nanoparticles onto Grafted Films
p.465

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 331Effects of Sintering Temperature on the Phase...

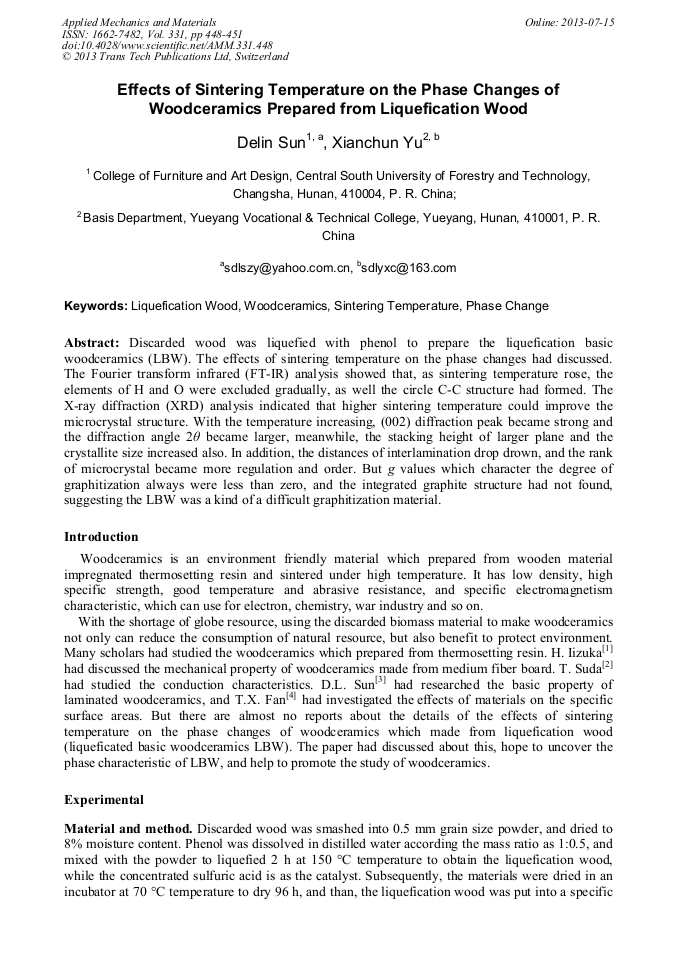

Effects of Sintering Temperature on the Phase Changes of Woodceramics Prepared from Liquefication Wood

Abstract:

Discarded wood was liquefied with phenol to prepare the liquefication basic woodceramics (LBW). The effects of sintering temperature on the phase changes had discussed. The Fourier transform infrared (FT-IR) analysis showed that, as sintering temperature rose, the elements of H and O were excluded gradually, as well the circle C-C structure had formed. The X-ray diffraction (XRD) analysis indicated that higher sintering temperature could improve the microcrystal structure. With the temperature increasing, (002) diffraction peak became strong and the diffraction angle 2θ became larger, meanwhile, the stacking height of larger plane and the crystallite size increased also. In addition, the distances of interlamination drop drown, and the rank of microcrystal became more regulation and order. But g values which character the degree of graphitization always were less than zero, and the integrated graphite structure had not found, suggesting the LBW was a kind of a difficult graphitization material.
