How to Synchronize and Register an Optical-Inertial Tracking System

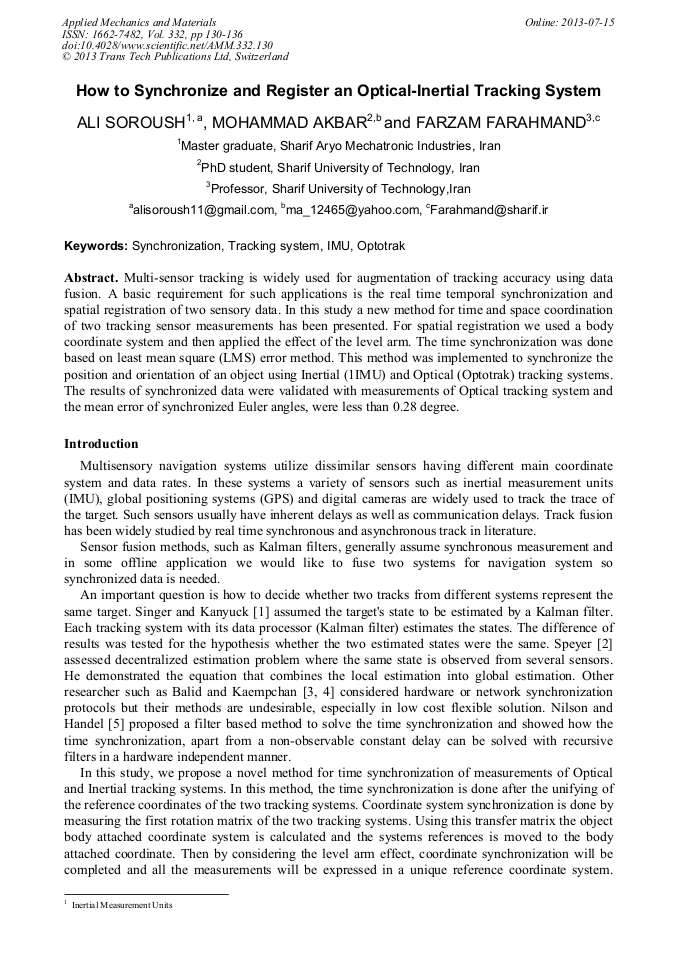

Article Preview

Abstract:

Multi-sensor tracking is widely used for augmentation of tracking accuracy using data fusion. A basic requirement for such applications is the real time temporal synchronization and spatial registration of two sensory data. In this study a new method for time and space coordination of two tracking sensor measurements has been presented. For spatial registration we used a body coordinate system and then applied the effect of the level arm. The time synchronization was done based on least mean square (LMS) error method. This method was implemented to synchronize the position and orientation of an object using Inertial ( IMU) and Optical (Optotrak) tracking systems. The results of synchronized data were validated with measurements of Optical tracking system and the mean error of synchronized Euler angles, were less than 0.28 degree.

You might also be interested in these eBooks
OPTIROB 2013 View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 332)

Pages:

130-136

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.332.130

Citation:

Cite this paper

Online since:

July 2013

Authors:

Ali Soroush, Mohammad Akbar, Farzam Farahmand

Keywords:

IMU, Optotrak, Synchronization, Tracking System

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] Singer, R. A., and Kanyuck, A. J., 1971, "Computer control of multiple site track correlation," Automatica, 7(4), pp.455-463.

DOI: 10.1016/0005-1098(71)90096-3

Google Scholar

[2] Speyer, J. L., 1979, "COMPUTATION AND TRANSMISSION REQUIREMENTS FOR A DECENTRALIZED LINEAR-QUADRATIC-GAUSSIAN CONTROL PROBLEM," IEEE Trans Autom Control, AC-24(2), pp.266-269.

DOI: 10.1109/tac.1979.1101973

Google Scholar

[3] Baldi, M., Marchetto, G., and Ofek, Y., 2007, "A scalable solution for engineering streaming traffic in the future Internet," Computer Networks, 51(14), pp.4092-4111.

DOI: 10.1016/j.comnet.2007.04.019

Google Scholar

[4] Kaempchen, N., and Dietmayer, K., 2003, "Data synchronization strategies for multi-sensor fusion," Proc. ITS2003, Madrid, Spain, Nov 2003.

Google Scholar

[5] Nilsson, J. O., and Händel, P., 2010, "Time synchronization and temporal ordering of asynchronous sensor measurements of a multi-sensor navigation system," Record - IEEE PLANS, Position Location and Navigation SymposiumIndian Wells, CA, pp.897-902.

DOI: 10.1109/plans.2010.5507193

Google Scholar
