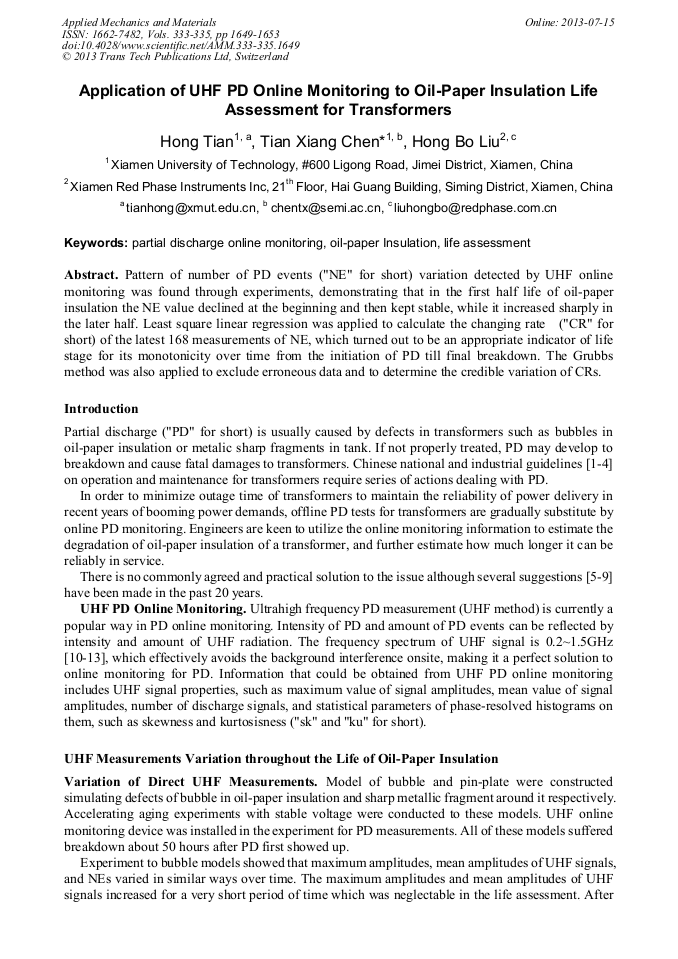

Application of UHF PD Online Monitoring to Oil-Paper Insulation Life Assessment for Transformers

Abstract:

Pattern of number of PD events ("NE" for short) variation detected by UHF online monitoring was found through experiments, demonstrating that in the first half life of oil-paper insulation the NE value declined at the beginning and then kept stable, while it increased sharply in the later half. Least square linear regression was applied to calculate the changing rate ("CR" for short) of the latest 168 measurements of NE, which turned out to be an appropriate indicator of life stage for its monotonicity over time from the initiation of PD till final breakdown. The Grubbs method was also applied to exclude erroneous data and to determine the credible variation of CRs.

• Periodical: Applied Mechanics and Materials (Volumes 333-335)
• Pages: 1649-1653
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.333-335.1649
• Online since: July 2013
• Authors: Hong Tian, Tian Xiang Chen, Hong Bo Liu
• Keywords: Life Assessment, Oil-Paper Insulation, Partial Discharge Online Monitoring

References

[1] Ministry of Power Industry of P.R. China, DL/T 596-1996 Preventative test code for electric power equipments, (1996).

[2] China Southern Power Grid Co., Ltd, Q/CSG 1 0007-2004 Preventative test code for electric power equipments, (2004).

[3] Stage Grid Corporation of China, Q/GDW 168-2008 Regulations of Condition-Based Maintenance & Test for Electric Equipments, (2008).

[4] Stage Grid Corporation of China, Q/GDW 169-2008 Guide for Condition Evaluation of Oil-immersed Power Transformers (Reactors), (2008).

[5] G.C. Montanari, Aging and life models for insulation systems based on PD detection[J], IEEE Transactions on Dielectrics and Electrical Insulation, pp.667-675 Vol. 2 No. 4, (1995).

DOI: 10.1109/94.407031

[6] ZHANG Xiaohong, ZHANG Liang, YUE Bo, XIE Hengkun, Analysis on aging condition of stator winding insulation of generator, Proceeding of CSEE, pp.94-98 Vol. 22 No. 5, (2002).

[7] W.G. Ariastina, W.G. Ariastina, R.H. Khawaja, T.R. Blackburn, Investigation of Partial Discharge Properties in Oil-Impregnated Insulation, Properties and applications of Dielectric Materials, 8th International Conference on, pp.714-717, (2006).

DOI: 10.1109/icpadm.2006.284277

[8] M. Ramya, K. Udayakumar, Characterization of partial discharge phenomenon on paper insulation under aggravated aging conditions, Dielectric Liquids, ICDL 2002, Proceedings of 2002 IEEE 14th International Conference on, pp.433-436, (2002).

DOI: 10.1109/icdl.2002.1022785

[9] A. Cavallini, G.C. Montanari, F. Ciani, Analysis of partial discharge phenomena in paper-oil insulation systems as a basis for risk assessment evaluation, Dielectric Liquids, ICDL 2005. IEEE International Conference on, pp.241-244, (2005).

DOI: 10.1109/icdl.2005.1490071

[10] M.D. Judd B.M. Pryor, S.C. Kelly, Transformer Monitoring Using the UHF Technique, IEE Conference on High Voltage Engineering, pp.362-365, (1999).

[11] Wang Guoli, Hao Yanpeng, Liu weiguo, Li Yanming, Utra-high-frequency (UHF) PD Measuring System for Power Transformer, High Voltage Engineering, pp.23-25 Vol. 27 No. 4, (2001).

DOI: 10.1109/iseim.2001.973797

[12] W.R. Rutgers, Y.H. Fu, UHF PD-Detection in a power transformer. 10th International Symposium on High Voltage Engineering，pp.219-222, (1999).

[13] Li Jun, The statistical characteristics of partial discharges from discharge development to insulation breakdown in discharge fault models of power transformers, Graduation Thesis for Master's Degree of North China Electric Power University, (2006).

[14] Standard administration of the People's Republic of China, GB/T 4883-2008 Statistical interpretation of data - Detection and treatment of outliers in normal sample, (2008).

[15] Test and research institute of Guangzhou power supply bureau. Monthly operation and maintenance report for online monitoring systems, No. 1, (2011).
