Using LOG Method to Measure Errors of Mobile Robots' Location

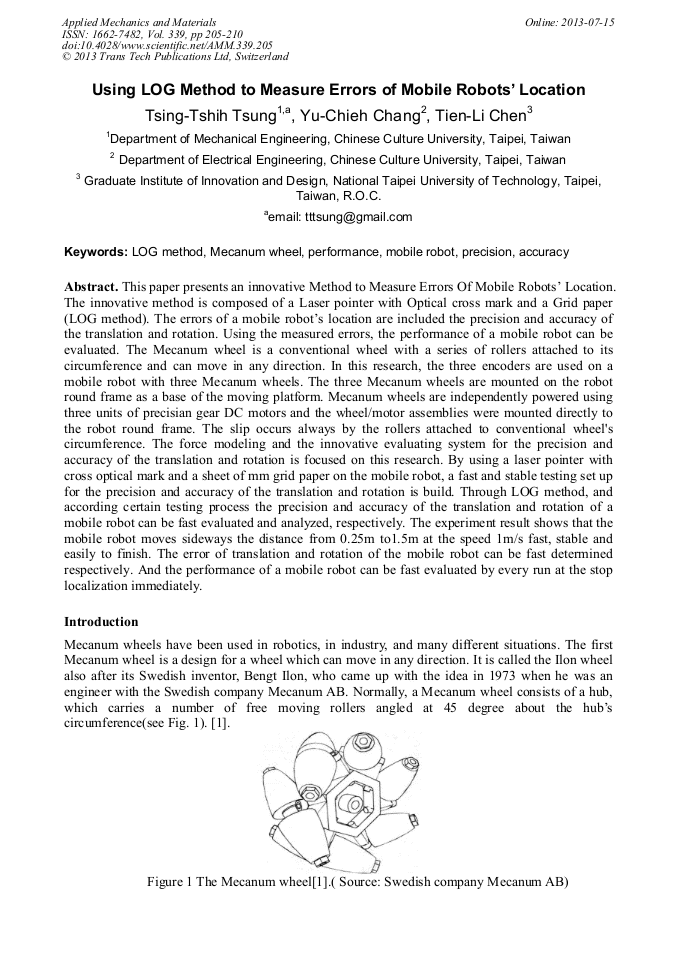

Article Preview

Abstract:

This paper presents an innovative Method to Measure Errors Of Mobile Robots Location. The innovative method is composed of a Laser pointer with Optical cross mark and a Grid paper (LOG method). The errors of a mobile robots location are included the precision and accuracy of the translation and rotation. Using the measured errors, the performance of a mobile robot can be evaluated. The Mecanum wheel is a conventional wheel with a series of rollers attached to its circumference and can move in any direction. In this research, the three encoders are used on a mobile robot with three Mecanum wheels. The three Mecanum wheels are mounted on the robot round frame as a base of the moving platform. Mecanum wheels are independently powered using three units of precisian gear DC motors and the wheel/motor assemblies were mounted directly to the robot round frame. The slip occurs always by the rollers attached to conventional wheel's circumference. The force modeling and the innovative evaluating system for the precision and accuracy of the translation and rotation is focused on this research. By using a laser pointer with cross optical mark and a sheet of mm grid paper on the mobile robot, a fast and stable testing set up for the precision and accuracy of the translation and rotation is build. Through LOG method, and according certain testing process the precision and accuracy of the translation and rotation of a mobile robot can be fast evaluated and analyzed, respectively. The experiment result shows that the mobile robot moves sideways the distance from 0.25m to1.5m at the speed 1m/s fast, stable and easily to finish. The error of translation and rotation of the mobile robot can be fast determined respectively. And the performance of a mobile robot can be fast evaluated by every run at the stop localization immediately.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

205-210

Citation:

Online since:

July 2013

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] J.A. Cooney, W.L. Xu , G. Bright, "Visual dead-reckoning for motion control of a Mecanum-wheeled mobile robot,"Mechatronics 14 (2004) 623–637.

DOI: 10.1016/j.mechatronics.2003.09.002

Google Scholar

[2] J. E. M. Salih, M. Rizon, S. Yaacob, A. H. Adom and M. R. Mamat, "Designing Omni-Directional Mobile Robot with Mecanum Wheel," American Journal of Applied Sciences 3 (5): 1831-1835, 2006.

DOI: 10.3844/ajassp.2006.1831.1835

Google Scholar

[3] S. Kumra, R. Saxena, S. Mehta," Navigation System for Omni-directional Automatic Guided Vehicle with Mecanum Wheel," IOSR Journal of Electrical and Electronics Engineering (IOSRJEEE) ISSN: 2278-1676 Volume 2, Issue 3 (Sep-Oct. 2012), PP 35-39.

DOI: 10.9790/1676-0233539

Google Scholar

[4] M. de Villiers, Prof. G. Bright,"Development of a control model for a four wheel Mecanum vehicle,"25th International Conference of CAD/CAM, Robotics & Factories of the Future Conference, 13-16 July 2010, Pretoria, South Africa.

Google Scholar

[5] F. Adăscăliţei, I, Doroftei ,"Practical Applications for Mobile Robots based on Mecanum Wheels a Systematic Survey," Proceedings of International Conference On Innovations, Recent Trends And Challenges In Mechatronics,Mechanical Engineering And New High-Tech Products Development –MECAHITECH'11, vol. 3, year: 2011.

Google Scholar

[6] J.Y. Choi, and S.G. Kim, "Collaborative Tracking Control of UAV-UGV, "World Academy of Science, Engineering and Technology 71 2012.

Google Scholar
