Microstructural Evolution and hardening of Subsurface of Mg-3Al-1Zn Alloy during Dry Sliding Wear

Chao Li; Ce Liang; Jian An; Ming Yu

doi:10.4028/www.scientific.net/AMM.345.209

Paper Titles

Array of Fe₃O₄Nanoparticles in PS-b-P2VP thin Films
p.193

Simulation of Graded Band-Gap PIN nc-Si Thin-Film Solar Cells
p.197

Preparation of Mesoporous Magnetic TiO₂/CoFe₂O₄ Photocatalysts Using Ionic Liquid as Template Agent
p.201

Effect of the Pore Fractal Dimensions on Absorption Ability in Superabsorbent Fibers
p.205

Microstructural Evolution and hardening of Subsurface of Mg-3Al-1Zn Alloy during Dry Sliding Wear
p.209

Experimental Investigation of Low Velocity Impact and Residual Compressive Properties of Composite Laminates Based on AE
p.214

Research on Composite Powder and Magnet Properties of Bonded NdFeB Magnets Prepared by Press Molding
p.218

Preparation Technology and Mechanical Properties of Fe-C Composites Fabricated by Plasma Activated Sintering
p.223

Experimental Study of New Rubber Plastication Method
p.228

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 345Microstructural Evolution and hardening of...

Microstructural Evolution and hardening of Subsurface of Mg-3Al-1Zn Alloy during Dry Sliding Wear

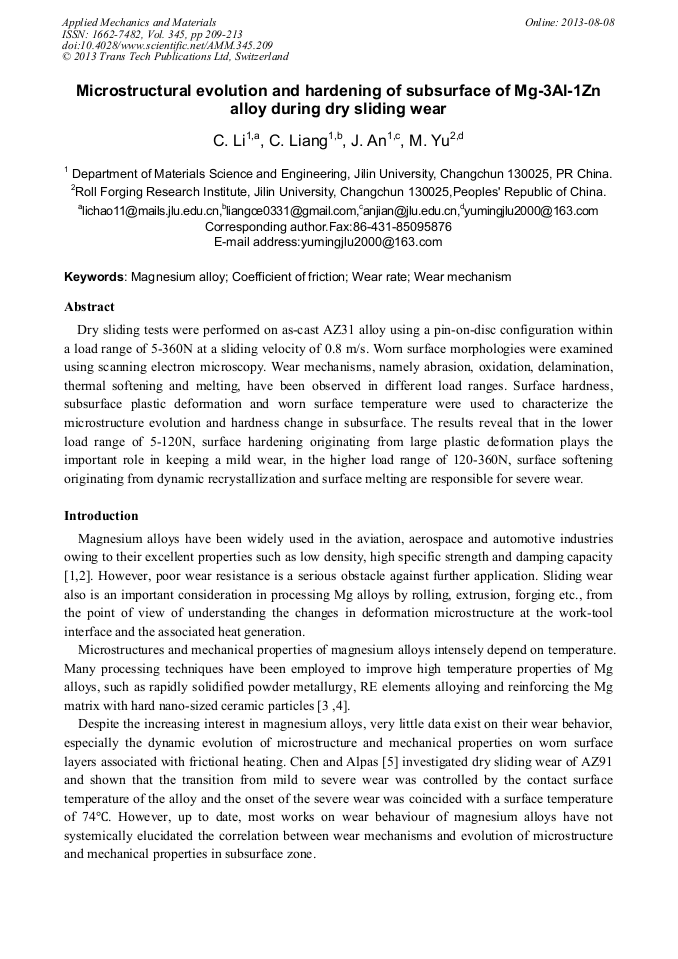

Abstract:

Dry sliding tests were performed on as-cast AZ31 alloy using a pin-on-disc configuration within a load range of 5-360N at a sliding velocity of 0.8 m/s. Worn surface morphologies were examined using scanning electron microscopy. Wear mechanisms, namely abrasion, oxidation, delamination, thermal softening and melting, have been observed in different load ranges. Surface hardness, subsurface plastic deformation and worn surface temperature were used to characterize the microstructure evolution and hardness change in subsurface. The results reveal that in the lower load range of 5-120N, surface hardening originating from large plastic deformation plays the important role in keeping a mild wear, in the higher load range of 120-360N, surface softening originating from dynamic recrystallization and surface melting are responsible for severe wear.
