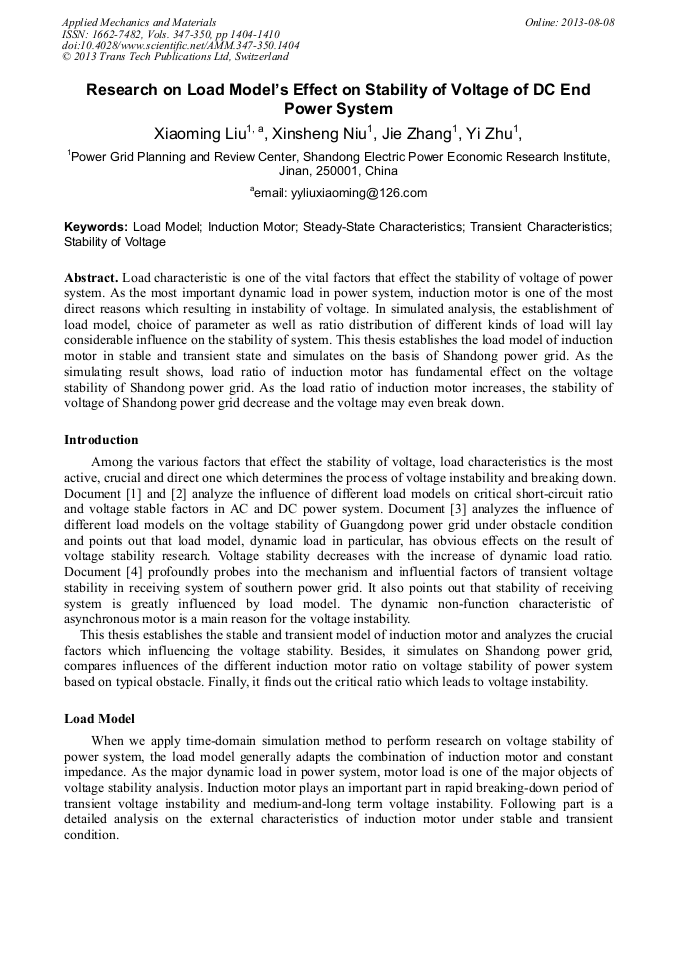

Research on Load Models Effect on Stability of Voltage of DC End Power System

Abstract:

Load characteristic is one of the vital factors that effect the stability of voltage of power system. As the most important dynamic load in power system, induction motor is one of the most direct reasons which resulting in instability of voltage. In simulated analysis, the establishment of load model, choice of parameter as well as ratio distribution of different kinds of load will lay considerable influence on the stability of system. This thesis establishes the load model of induction motor in stable and transient state and simulates on the basis of Shandong power grid. As the simulating result shows, load ratio of induction motor has fundamental effect on the voltage stability of Shandong power grid. As the load ratio of induction motor increases, the stability of voltage of Shandong power grid decrease and the voltage may even break down.

• Periodical: Applied Mechanics and Materials (Volumes 347-350)
• Pages: 1404-1410
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.347-350.1404
• Online since: August 2013
• Authors: Xiao Ming Liu, Xin Sheng Niu, Jie Zhang, Yi Zhu
• Keywords: Induction Motor (IM), Load Model, Stability of Voltage, Steady-State Characteristics, Transient Characteristics

References

[1] Aik D L H, Andersson G. Influence of load characteristics on the power/voltage stability of HVDC systems, Part 1: basic equations and realationships[J]. IEEE Trans on Power Delivery, 1998, 13(4): 1437-1444.

DOI: 10.1109/61.714625

[2] Aik D L H, Andersson G. Influence of load characteristics on the power/voltage stability of HVDC systems, Part 2: stability margin sensitivity[J]. IEEE Trans on Power Delivery, 1998, 13(4): 1445-1452.

DOI: 10.1109/61.714627

[3] Chen Huixiang, Wang Zhonghong, Cui Wenjin. Research on Voltage Stability of Guangdong Power System[J]. Automatic Control on Electrical Power System, 2004, 28(7): 86-89.

[4] Liao Minchuan, Cai Guanglin, Zhang Yongjun. Analysis on Transient Voltage Stability of Receiving End of AC and DC Power System[J]. Protection and Centralization of Power System, 2009, 37(10): 1-4, 18.

[5] Taylor C W. Power system voltage stability[M]. Beijing, China Electric Power Press, (2002).

[6] Tang Yong, Bo Guangquan, Yinyonghua, etc. User Guide of BPA Transient Stability Procedure(Chinese Version 4. 15) [Z]. China Electric Power Research Institute, (2010).

[7] Xi'an Jiaotong University. Calculation of Power System[M]. Beijing: Water Conservancy and Electric Power Press, (1978).

[8] China Electric Power Research Institute. User Guide of Synthetical Procedure of Power System Analysis(PSASP)[Z]. China Electric Power Research Institute, (2003).

DOI: 10.17775/cseejpes.2017.0015
