Analysis of Residual Displacement of Combined Base Isolated Structure

Abstract:

Residual displacement is disadvantageous to combined base isolation system, as it may cause the structure to overturn when it is big enough. To elucidate the mechanism of the system residual displacement after earthquake, the motion equation of the system was established. Through the theoretical analysis, the calculating formula was given, and residual displacement was found relevant with horizontal stiffness, the max friction forces of the sliding bearings and the input ground motion. With this method, the results of an example show that the friction coefficient of sliding bearings is the key influence factor of the residual displacement, and the way of how to figure out the value of the friction coefficient is recommended in this article.

You might also be interested in these eBooks

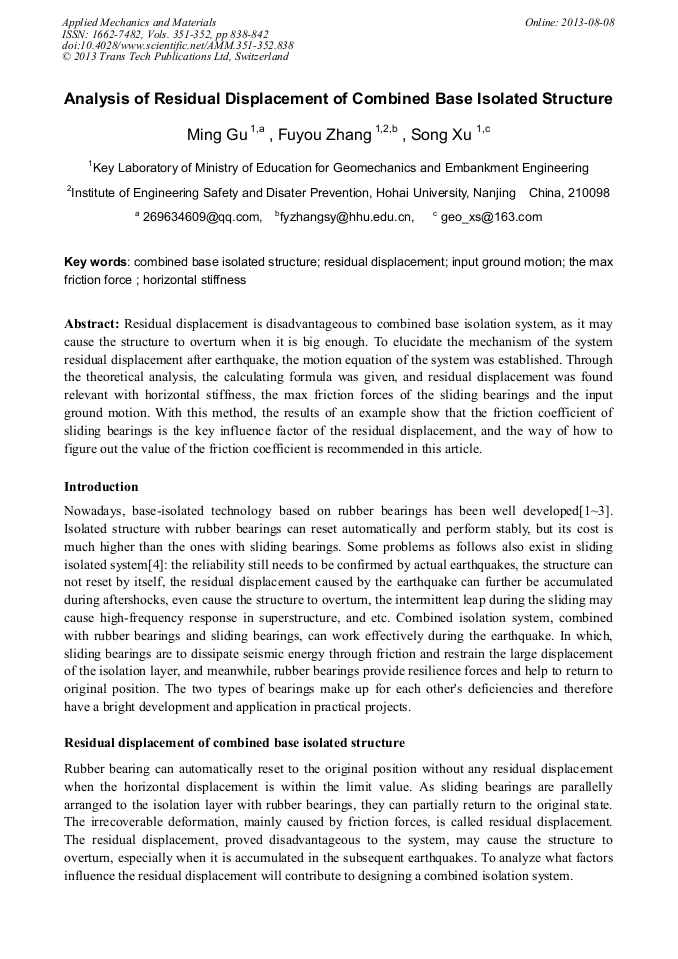

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 351-352)

Pages:

838-842

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.351-352.838

Citation:

Cite this paper

Online since:

August 2013

Authors:

Ming Gu, Fu You Zhang, Song Xu

Keywords:

Combined Base Isolated Structure, Horizontal Stiffness, Input Ground Motion, Max Friction Force, Residual Displacement

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Xiyuan Zhou: Journal of Building Structure, 2002, 23(2): 2-12. (in Chinese).

Google Scholar

[2] Jangid R S, Datta T K: Engineering Structures, 1995, 17(6): 443-454.

Google Scholar

[3] China Standard. Code for seismic design of buildings, GB50011-2010. Beijing: (2010).

Google Scholar

[4] Wenfang Zhang, Wenrang Cheng. Experiments: Journal of Building Structure, 2010, 21(3): 36-43. (in Chinese).

Google Scholar

[5] James. M. Kelly. The Analysis and Design of Elastomeric Bearings for Application in Bridges. Technical Report , MCEER-98-0015, (1998).

Google Scholar

[6] Shrimali, M. K, Jangid, R. S: Nuclear Engineering and Design. 2002, 217(2): 1-20.

Google Scholar

[7] Zhang, Fuyou. Study on isolated layer mechanics character of combined base isolated structure based on axial forces redistribute. Applied Mechanics and Materials, v 166-169, pp.627-631, 2012, Progress in Structures.

DOI: 10.4028/www.scientific.net/amm.166-169.627

Google Scholar
