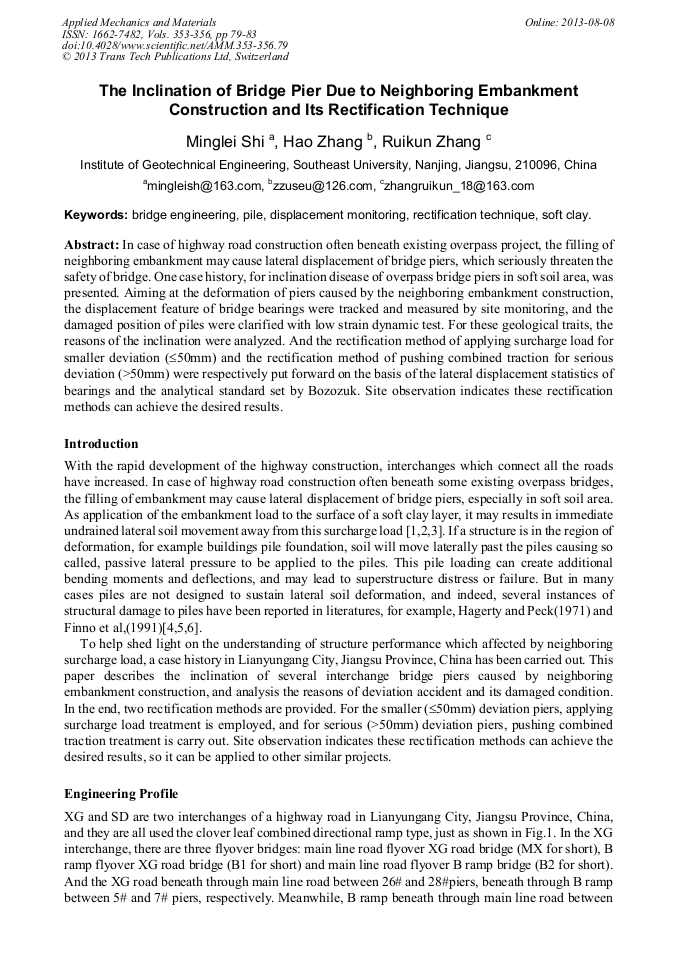

The Inclination of Bridge Pier due to Neighboring Embankment Construction and its Rectification Technique

Abstract:

In case of highway road construction often beneath existing overpass project, the filling of neighboring embankment may cause lateral displacement of bridge piers, which seriously threaten the safety of bridge. One case history, for inclination disease of overpass bridge piers in soft soil area, was presented. Aiming at the deformation of piers caused by the neighboring embankment construction, the displacement feature of bridge bearings were tracked and measured by site monitoring, and the damaged position of piles were clarified with low strain dynamic test. For these geological traits, the reasons of the inclination were analyzed. And the rectification method of applying surcharge load for smaller deviation (50mm) and the rectification method of pushing combined traction for serious deviation (>50mm) were respectively put forward on the basis of the lateral displacement statistics of bearings and the analytical standard set by Bozozuk. Site observation indicates these rectification methods can achieve the desired results.

• Periodical: Applied Mechanics and Materials (Volumes 353-356)
• Pages: 79-83
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.353-356.79
• Online since: August 2013
• Authors: Ming Lei Shi*, Hao Zhang, Rui Kun Zhang
• Keywords: Bridge Engineering, Displacement Monitoring, Pile, Rectification Technique, Soft Clay

References

[1] Tavenas F, Mieussnes C, Bourges F. Canadian Geotechnical Journal. 16(2): 32-55(1979).

[2] Yang Min, Zhu Bitang, Chen Fuquan. Chinese Journal of Geotechnical Engineering. 24(4): 446-450 (2002). (in Chinese).

[3] Feng Zhongju, Zhang Yongqing, Li Jin. China Journal of Highway and Transport. 17(3): 74-77 (2004). (in Chinese).

[4] Hagerty D J, Peck R B. Journal of Soil Mechanics and Foundation Division, ASCE. 11: 1513-1532 (1971).

[5] Finno R J, Lawrence S A, Allawh N F and Harahap I S. Journal of Geotechnical Engineering. 117(6): 934-955(1991).

[6] Chen L T, Poulos H G. Journal of Geotechnical and Geoenvironmental Engineering. 123: 802-811 (1997).

[7] Zhao Jiuzhai. Chinese Journal of Geotechnical Engineering. 22(6): 643-649(2000). (in Chinese).

[8] Matui T. Proc of The International Conference on Deep Foundation(1986).
