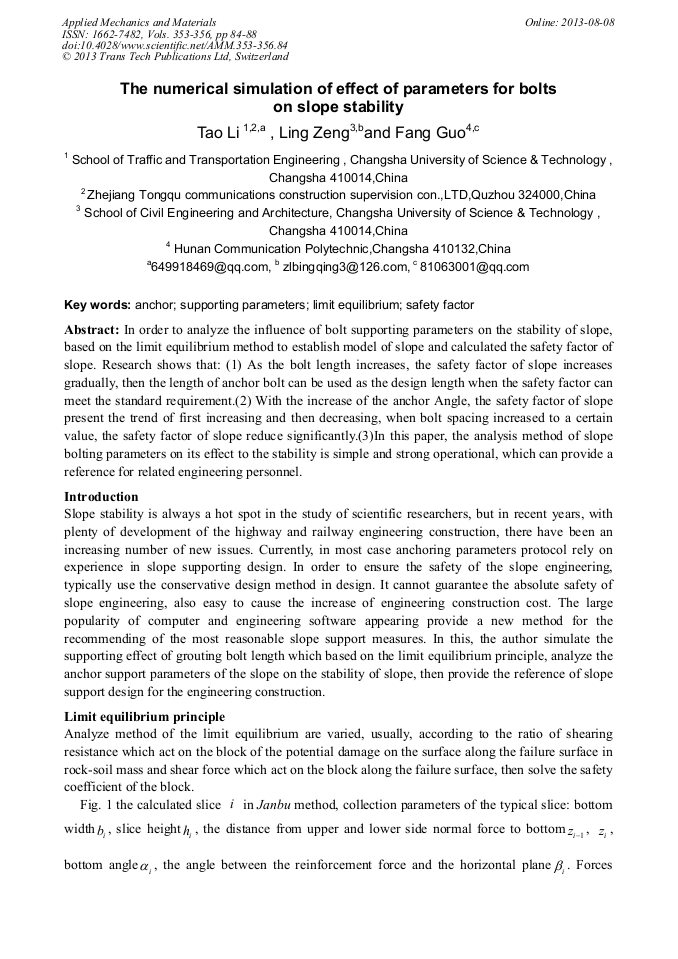

The Numerical Simulation of Effect of Parameters for Bolts on Slope Stability

Abstract:

In order to analyze the influence of bolt supporting parameters on the stability of slope, based on the limit equilibrium method to establish model of slope and calculated the safety factor of slope. Research shows that: (1) As the bolt length increases, the safety factor of slope increases gradually, then the length of anchor bolt can be used as the design length when the safety factor can meet the standard requirement.(2) With the increase of the anchor Angle, the safety factor of slope present the trend of first increasing and then decreasing, when bolt spacing increased to a certain value, the safety factor of slope reduce significantly.(3)In this paper, the analysis method of slope bolting parameters on its effect to the stability is simple and strong operational, which can provide a reference for related engineering personnel.

You might also be interested in these eBooks

Advances in Civil and Industrial Engineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 353-356)

Pages:

84-88

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.353-356.84

Citation:

Cite this paper

Online since:

August 2013

Authors:

Tao Li*, Ling Zeng, Fang Guo

Keywords:

Anchor, Limit Equilibrium, Safety Factor, Supporting Parameters

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] GuWei. Cutting slope protection treatment design in HuaiTong highway[J]. Highways & Automotive Applications, 2012, 152: 105-108. (In Chinese).

Google Scholar

[2] Lu Duihua, He Zhongming, LinHang. A highway slope rock bolting system safety assessment[J]. Science of disaster, 2007, 22(3): 63-67. (In Chinese).

Google Scholar

[3] QiuMin. Dynamic finite element analysis of rock slope supporting structure construction[J]. Highways & Automotive Applications, 2009, 3：86-90. (In Chinese).

Google Scholar

[4] SarmaS.K. Stability analysis of embankment sand slopes[J]. Geotech. Engrg. Div. ASCE, 1979, 105(12): 1511-1524.

Google Scholar

[5] Bishop. A W. The Use of the SliP Cirele in the Stability Analysis of slopes[J]. Geoteellnique, 1955, 5(1): 7-17.

Google Scholar

[6] The Ministry of industry standard of the people's Republic of China. Specification for highway soil experiment JTJ051-93, [S]. BeiJing：People's Commumication Press, 1995. (In Chinese).

Google Scholar

[7] Chen Zuyu. The stability analysis of soil slope [M]. BeiJing：China Water Conservancy and Hydropower Press, 2003. (In Chinese).

Google Scholar
