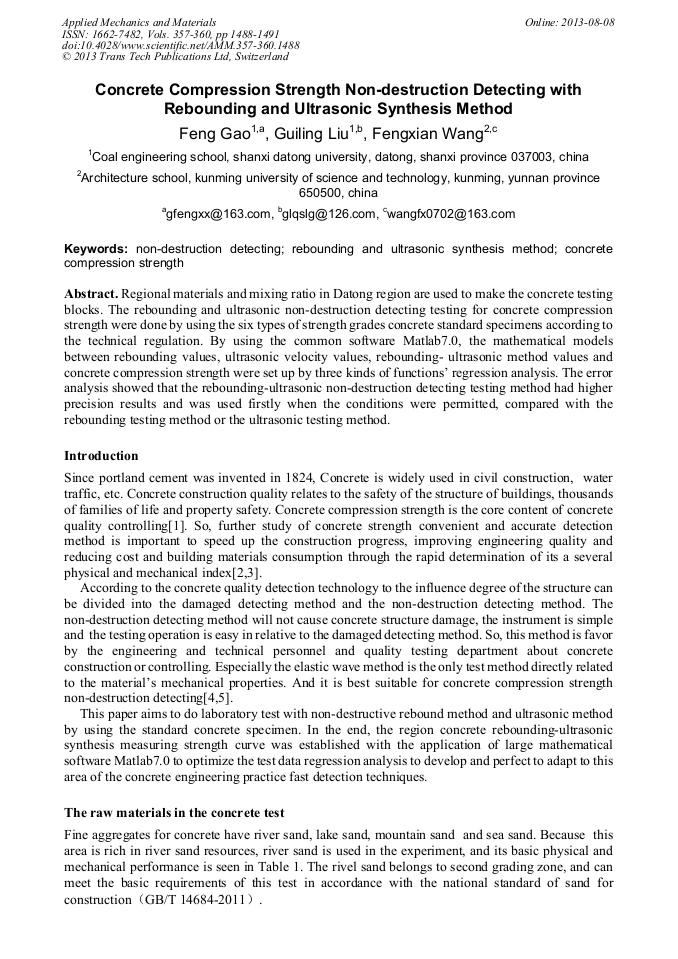

Concrete Compression Strength Non-Destruction Detecting with Rebounding and Ultrasonic Synthesis Method

Abstract:

Regional materials and mixing ratio in Datong region are used to make the concrete testing blocks. The rebounding and ultrasonic non-destruction detecting testing for concrete compression strength were done by using the six types of strength grades concrete standard specimens according to the technical regulation. By using the common software Matlab7.0, the mathematical models between rebounding values, ultrasonic velocity values, rebounding- ultrasonic method values and concrete compression strength were set up by three kinds of functions’ regression analysis. The error analysis showed that the rebounding-ultrasonic non-destruction detecting testing method had higher precision results and was used firstly when the conditions were permitted, compared with the rebounding testing method or the ultrasonic testing method.

• Periodical: Applied Mechanics and Materials (Volumes 357-360)
• Pages: 1488-1491
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.357-360.1488
• Online since: August 2013
• Authors: Feng Gao, Gui Ling Liu, Feng Xian Wang
• Keywords: Concrete Compression Strength, Non-Destruction Detecting, Rebounding, Ultrasonic Synthesis Method

References

[1] P. K. Mehta. Concrete: microstructure, properties and materials [M]. New York: MeGraw Hill, (2005).

[2] Wu X Y. Concrete nondestructive testing technical manual [M]. Beijing: China Communications Press, 2003. (in Chinese).

[3] Jean-Franois Chaix, Vicent Garnier, Gilles Comeloup. Concrete damage evolution analysis by backscattered ultrasonic waves [J]. NDT & E International, 2003, 36: 462-468.

DOI: 10.1016/s0963-8695(03)00066-5

[4] Popovics, John S. Nondestructive evaluation: past, present, and future [J]. Journal of Materials in Civil Engineering, 2003, 15 (3) : 210-211.

[5] Feng G, Qi L H, Gui L L. Study on Concrete Compression Strength with Rebounding-ultrasonic Non-destruction Detecting Synthesis Method [J]. Journal of Shanxi Datong University(Natural Science), 2012, 28(4): 55-57. (in Chinese).

[6] JGJ 55-2000, Specification for Mix Proportion Design of Concrete [S]. Beijing: China building industry press , 2001. (in Chinese).

[7] JGJ/T 23-2001, Technical Specification for Inspecting of Concrete Compressive Strength by Rebound Method[S]. Beijing: China building industry press , 2001. (in Chinese).

[8] CECS 02: 2005, The technical Specification for Inspection of Concrete Strength by Rebounding and Ultrasonic Synthesis Method [S]. Beijing: China Planning Press, 2005. (in Chinese).

[9] Gui L L. Application of Structure Concrete Compression Strength Detecting with Rebounding Method in Datong Area [J]. Journal of Shanxi Datong University(Natural Science), 2011, 27(4): 69-71. (in Chinese).

DOI: 10.4028/www.scientific.net/amr.724-725.1535
