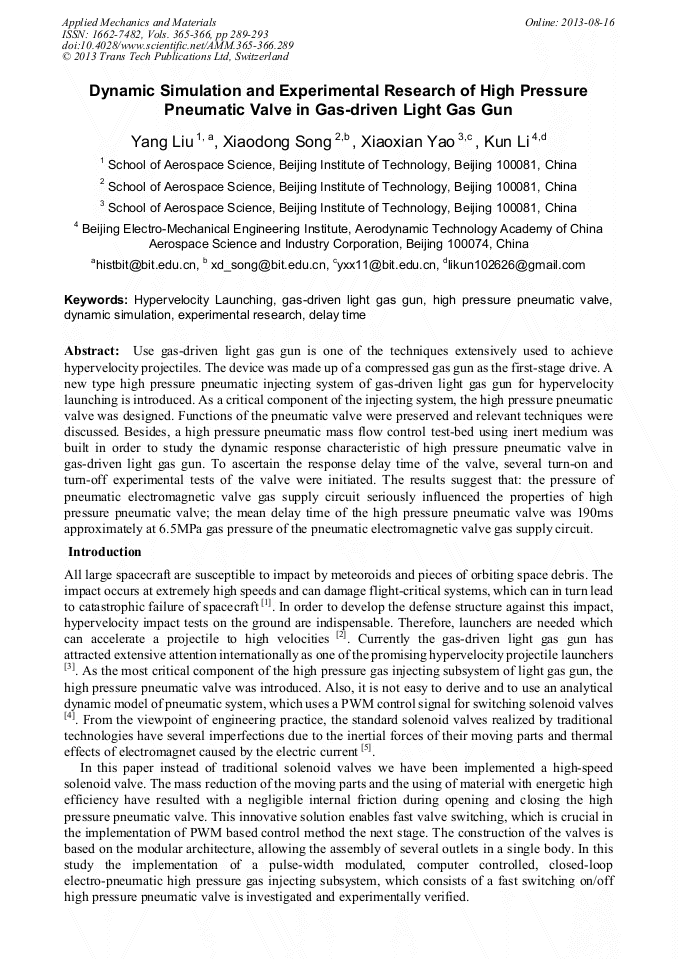

Dynamic Simulation and Experimental Research of High Pressure Pneumatic Valve in Gas-Driven Light Gas Gun

Abstract:

Use gas-driven light gas gun is one of the techniques extensively used to achieve hypervelocity projectiles. The device was made up of a compressed gas gun as the first-stage drive. A new type high pressure pneumatic injecting system of gas-driven light gas gun for hypervelocity launching is introduced. As a critical component of the injecting system, the high pressure pneumatic valve was designed. Functions of the pneumatic valve were preserved and relevant techniques were discussed. Besides, a high pressure pneumatic mass flow control test-bed using inert medium was built in order to study the dynamic response characteristic of high pressure pneumatic valve in gas-driven light gas gun. To ascertain the response delay time of the valve, several turn-on and turn-off experimental tests of the valve were initiated. The results suggest that: the pressure of pneumatic electromagnetic valve gas supply circuit seriously influenced the properties of high pressure pneumatic valve; the mean delay time of the high pressure pneumatic valve was 190ms approximately at 6.5MPa gas pressure of the pneumatic electromagnetic valve gas supply circuit.

• Periodical: Applied Mechanics and Materials (Volumes 365-366)
• Pages: 289-293
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.365-366.289
• Online since: August 2013
• Authors: Yang Liu, Xiao Dong Song, Xiao Xian Yao, Kun Li
• Keywords: Delay Time, Dynamic Simulation, Experimental Research, Gas-Driven Light Gas Gun, High Pressure Pneumatic Valve, Hypervelocity launching

References

[1] William P. Schonbeg, David Cooper: Repeatability and uncertainty analyses of light gas gun test data, AIAA Journal. Vol. 32, No. 5, May (1994).

DOI: 10.2514/3.12094

[2] M. Tadaoka, Y. Akahoshi and T. Koura : Preliminary study of counter impact with two-stage light gas gun using electrothermal–chemical gun technology, International Journal of Impact Engineering 33(2006) 11-23.

DOI: 10.1016/j.ijimpeng.2006.09.013

[3] J-F. Legendre, M. griraud and M. Henner : Ram-accelerator A new hypervelocity launcher for ballistic studies, International Journal of Impact Engineering 23(1999) 533-545.

DOI: 10.1016/s0734-743x(99)00102-5

[4] Zeljko Situm, Tihomir zilic and Mario Essert. High speed solenoid valves in pneumatic servo applications, Mediterranean Conference on Control and Automation, July 27- 29 , 2007, Athens -Greece.

DOI: 10.1109/med.2007.4433746

[5] Michael J. Nusca, Surya P.G. Dinavahi and Bharat Soni. Grid adaptation studies for reactive flow modeling of propulsion systems, 37th AIAA Aerospace Sciences Meeting and Exhibit, January 11- 14 , 1999, Reno - Nevadan.

DOI: 10.2514/6.1999-970
