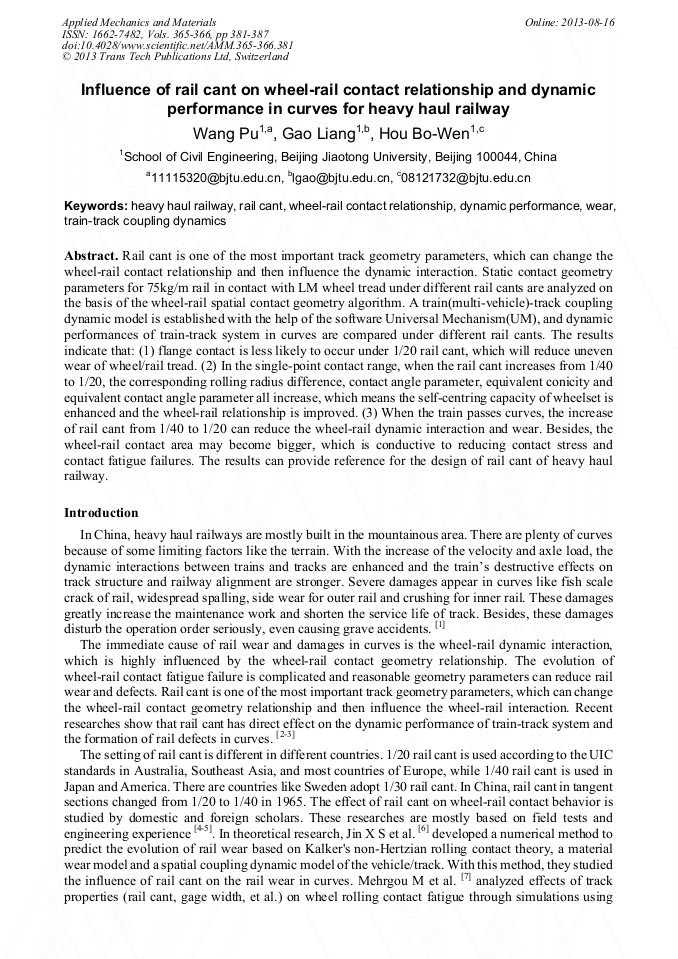

Influence of Rail Cant on Wheel-Rail Contact Relationship and Dynamic Performance in Curves for Heavy Haul Railway

Abstract:

Rail cant is one of the most important track geometry parameters, which can change the wheel-rail contact relationship and then influence the dynamic interaction. Static contact geometry parameters for 75kg/m rail in contact with LM wheel tread under different rail cants are analyzed on the basis of the wheel-rail spatial contact geometry algorithm. A train (multi-vehicle)-track coupling dynamic model is established with the help of the software Universal Mechanism (UM), and dynamic performances of train-track system in curves are compared under different rail cants. The results indicate that: (1) flange contact is less likely to occur under 1/20 rail cant, which will reduce uneven wear of wheel/rail tread. (2) In the single-point contact range, when the rail cant increases from 1/40 to 1/20, the corresponding rolling radius difference, contact angle parameter, equivalent conicity and equivalent contact angle parameter all increase, which means the self-centring capacity of wheelset is enhanced and the wheel-rail relationship is improved. (3) When the train passes curves, the increase of rail cant from 1/40 to 1/20 can reduce the wheel-rail dynamic interaction and wear. Besides, the wheel-rail contact area may become bigger, which is conductive to reducing contact stress and contact fatigue failures. The results can provide reference for the design of rail cant of heavy haul railway.

• Periodical: Applied Mechanics and Materials (Volumes 365-366)
• Pages: 381-387
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.365-366.381
• Online since: August 2013
• Authors: Pu Wang, Liang Gao, Bo Wen Hou
• Keywords: Dynamic Performance, Heavy Haul Railway, Rail Cant, Train-Track Coupling Dynamics, Wear, Wheel-Rail Contact Relationship

References

[1] ZHAI Wan-ming. Vehicle-track coupling dynamics [M]. Beijing: Science Press, 2007. (in Chinese).

[2] SHEN Gang, ZHANG Ding-xian. Rail inclination, wheelset rolling line offset and rail side-cutting [J]. Vehicle System Dynamics, 1994, 23(suppl): 469-479.

DOI: 10.1080/00423119308969534

[3] WANG Wen-jian, GUO Jun, LIU Qi-yue. Effect of track structure parameters on rolling contact stresses of wheel-rail [J]. Journal of Mechanical Engineering, 2009, 45(5): 39-44. (in Chinese).

DOI: 10.3901/jme.2009.05.039

[4] DU Mu-shan, WANG Wu-sheng, HAN Xiang-dong. Study and practice on mitigation of rail side wear on curve by adjusting rail cant [J]. Journal of Shanghai Railway Institute, 1992, 13(3): 17-28. (in Chinese).

[5] SHEN Gang, ZHANG Ding-xian. A study on the influence of rail cant on the rail side wear on curve [J]. Journal of Shanghai Railway Institute, 1994, 16(3): 95-99. (in Chinese).

[6] JIN Xue-song, XIAO Xin-biao, WEN Ze-feng, et al. An investigation into the effect of train curving on wear and contact stresses of wheel and rail [J]. Tribology International, 2009, 42(3): 475-490.

DOI: 10.1016/j.triboint.2008.08.004

[7] Mehrgou M, Nasr A. Influence of track properties on railway vehicles wheel rolling contact fatigue [C]/ ASME International Mechanical Engineering Congress and Exposition. New York: American Society of Mechanical Engineers, 2009: 473-480.

DOI: 10.1115/imece2008-68536

[8] LI Xia, WEN Zeng-feng, JIN Xue-song. Effect of rail cant on the rolling contact behavior of LM and LMA wheelsets [J]. Chinese Journal of Mechanical Engineering, 2008, 44(3): 64-69. (in Chinese).

DOI: 10.3901/jme.2008.03.064

[9] SI Dao-lin, WANG Ji-jun, MENG Hong, et al. Study on influence of rail bottom slope on wheel-rail interaction of heavy haul railway [J]. Railway Engineering, 2010, (5): 108-110. (in Chinese).

[10] Adachi M, Matsumoto A. Improvement of curving performance by expansion of gauge widening and additional measures [J]. Proceedings of Institution of Mechanical Engineers, Part F: Journal of Rail and Rapid Transit, 2012, 226(2): 203-215.

DOI: 10.1177/0954409711408974

[11] KALKER J J. Three—dimensional elastic bodies in rolling contact. Netherlands [M]. Dordrecht: Kluwer Academic Publishers, (1990).

[12] JIN Xue-song, LIU Qi-yue. Tribology of wheel and rail [M]. Beijing: China Railway Publishing House, 2004. (in Chinese).

[13] Dmitry P. User manual for UM 7. 0 [M]. Bryansk: Bryansk State Technical University, (2012).
