Adjustable Speed Drives Response to Voltage Sags

Abstract:

This paper presents a study to investigate response of adjustable speed drives due to voltage sags. A small ASD of 0.39 kW, 50/60 Hz, and 400-480 V was used for testing how drives will respond to voltage sag types; A, B, C and D. The drive response is influenced by sag magnitude, sag duration and phase angle shift. Behavior of the diodes rectifier for conducting is influenced by sag magnitude and phase angle shift represented by sag of types C and D. The diodes rectifiers are reverse biased when it was supplied by voltage sags. Even though there are no charging currents to dc bus capacitor during voltage sags, the drives did not directly trip to certain sag magnitude and sag duration. Sensitivity of the ASD to voltage sag types is presented in voltage tolerance curve. Sag of type A produces highest sensitivity on the ASD and it trips for sag magnitude of 62.5% and 250 milliseconds in duration.

You might also be interested in these eBooks

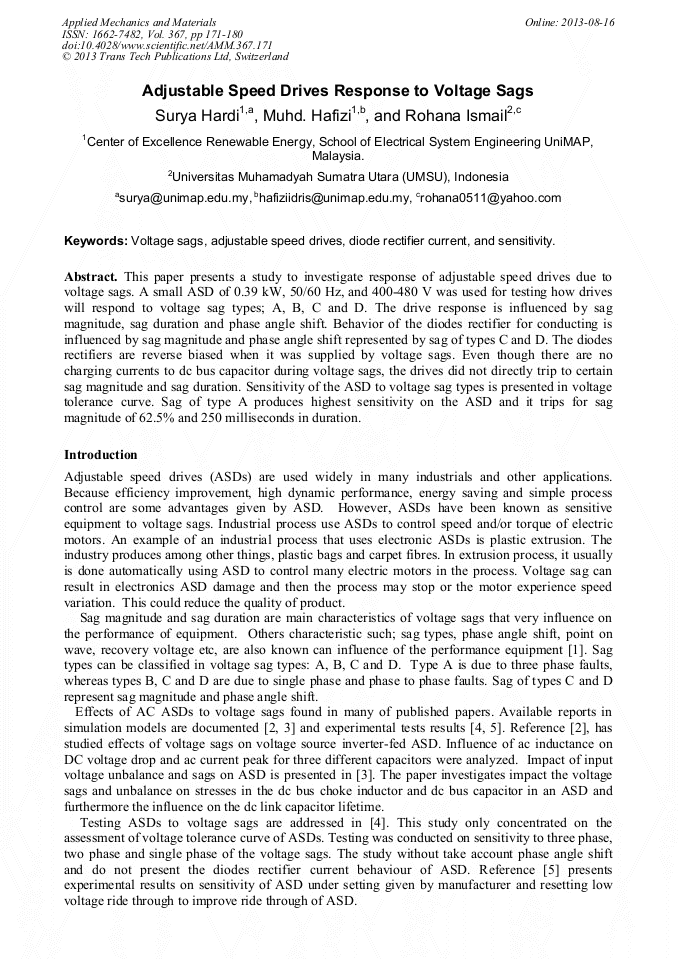

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 367)

Pages:

171-180

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.367.171

Citation:

Cite this paper

Online since:

August 2013

Authors:

Surya Hardi, Muhd Hafizi Idris, Ismail Rohana

Keywords:

Adjustable Speed Drives, Diode Rectifier Current, Sensitivity, Voltage Sag

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M. H. J. Bollen., Understanding of power quality problems: Voltage sag and interruptions, IEEE Press Series on Power Engineering, (2000).

Google Scholar

[2] J. Pedra, F. Corcoles and F. J. Suelves: Effect of balanced and unbalanced voltage sag on VSI-Fed adjustable speed drives, IEEE Trans. On Power Delivery, Vol. 20, No. 1, January 2005, pp.224-233.

DOI: 10.1109/tpwrd.2004.837832

Google Scholar

[3] K. Lee, T. M. Jahns, T. A. Lipo, G. Venkataramanan, E. R. Berkopec: Impact of input voltage sag and unbalance on dc-link inductor and capacitor stress in adjustable speed drives, IEEE Trans. On Industry Application, Vol. 44, N0. 6, November/December (2008).

DOI: 10.1109/tia.2008.2006308

Google Scholar

[4] S. Z. Djokic, K. Stockman, J. V. Milanovic, J. J. M. Desmet and R. Belman: Sensitivity of AC Adjustable speed drives to voltage sags and interruption, IEEE Transac. On Power Delivery, Vol. 20, No. 1 January 2005. pp.494-504.

DOI: 10.1109/tpwrd.2004.832353

Google Scholar

[5] C. Carillo, F. Vidal-Vilarino, M. Suarez-Alvarez, M. Saez-Tort, E. Diaz-Dorado: Impact of ASD settings in its LVRT behaviour, International Symposium on Power Electronics, Electrical drives, Automation and Motion (SPEEDAM 2010), 14-16 June 2010, Pisa, Italy.

DOI: 10.1109/speedam.2010.5545109

Google Scholar

[6] Voltage Sag Immunity Standard SEMI F47, available http: /www. pge. com/include/docs.

Google Scholar

[7] Use manual: Profline 2100 Schaffner, Tech. Documentation, (2005).

Google Scholar

[8] K. Stockman, F. D'hulster, K. Verhaege, M. Didden: Ride–through of adjustable speed drives during voltage dips, Electric Power System Research 66 (2003), pp.49-58.

DOI: 10.1016/s0378-7796(03)00071-3

Google Scholar
