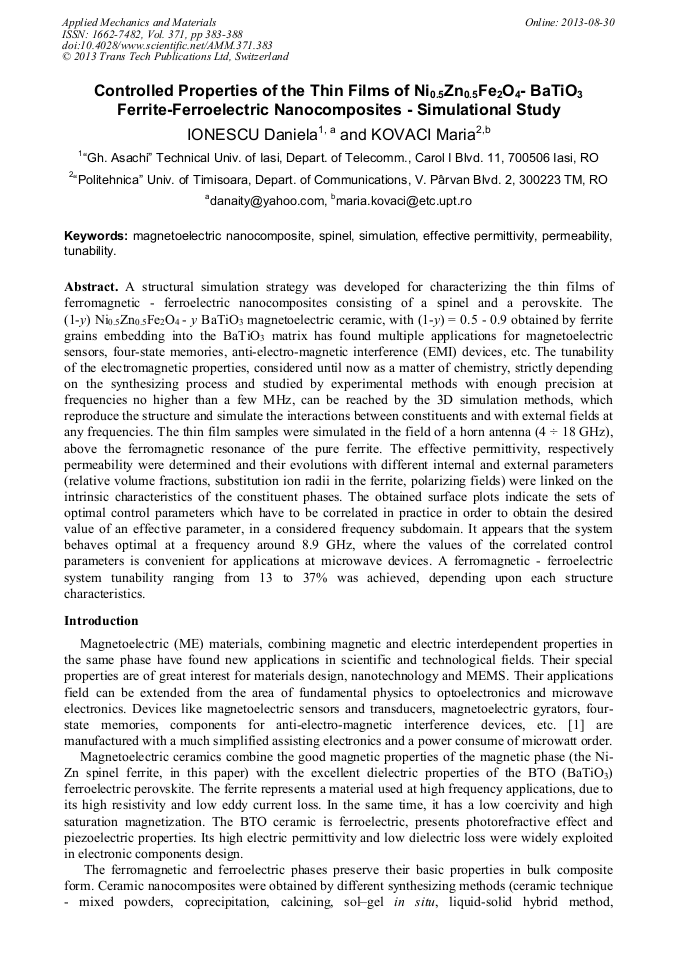

Controlled Properties of the Thin Films of Ni_0.5Zn_0.5Fe₂O₄- BaTiO₃ Ferrite-Ferroelectric Nanocomposites - Simulational Study

Abstract:

A structural simulation strategy was developed for characterizing the thin films of ferromagnetic - ferroelectric nanocomposites consisting of a spinel and a perovskite. The (1-y) Ni_0.5Zn_0.5Fe₂O₄ - y BaTiO₃ magnetoelectric ceramic, with (1-y) = 0.5 - 0.9 obtained by ferrite grains embedding into the BaTiO₃ matrix has found multiple applications for magnetoelectric sensors, four-state memories, anti-electro-magnetic interference (EMI) devices, etc. The tunability of the electromagnetic properties, considered until now as a matter of chemistry, strictly depending on the synthesizing process of the nanocomposite, can be reached by the 3D simulation methods, which reproduce the structure and simulate the interactions between constituents and with external fields. The thin film samples were simulated in the field of a horn antenna (4 ÷ 18 GHz), above the ferromagnetic resonance of the pure ferrite. The effective permittivity, respectively permeability were determined and their evolutions with different internal and external parameters (relative volume fractions, substitution ion radii in the ferrite, polarizing fields) were linked on the intrinsic characteristics of the constituent phases. The obtained surface plots indicates us the sets of optimal control parameters which have to be correlated in practice in order to obtain the desired value of an effective parameter, in a considered frequency subdomain. It appears that the system behaves optimal at a frequency around 8.9 GHz, where the values of the correlated control parameters is convenient for applications at microwave devices. A ferromagnetic - ferroelectric system tunability ranging from 13 to 37% was achieved, depending upon each structure characteristics.

• Periodical: Applied Mechanics and Materials (Volume 371)
• Pages: 383-388
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.371.383
• Online since: August 2013
• Authors: Daniela Ionescu, Maria Kovaci
• Keywords: Effective Permeability, Effective Permittivity, Magnetoelectric Nanocomposite, Simulation, Spinel, Tunability

References

[1] M.I. Bichurin, V.M. Petrov, S. Priya, Magnetoelectric Multiferroic Composites (Cap. 12) in: Mickaël Lallart (Ed. ), Ferroelectrics - Physical Effects, InTech, 2011, pp.277-302.

[2] J. Huang, P. Du, G. Han, W. Weng, Microstructure and Properties of Ni0. 5Zn0. 5Fe2O4-BaTiO3 Ceramic, Key Engineering Materials 336-338 (2007) 779-782.

[3] Piyi Du, et al., Magnetron sputtering preparation of BaTiO3-Ni0. 5Zn0. 5Fe2O4 ferroelectric ferromagnetic composite ceramic film and preparation method thereof, International Patent Classification, Subclass: C04B, CN 102584217 A application, (2012).

[5] B. Xiao, Y. Dong, et al., Formation of Sol–Gel In Situ Derived BTO/NZFO Composite Ceramics with Considerable Dielectric and Magnetic Properties, J. Am. Ceram. Soc. (2013), in print.

DOI: 10.1111/jace.12181

[6] Shashidhar Srinivas, Micromechanics of Multiferroic Composites, thesis (M.S. ), University of Nebraska, Lincoln, (2005).

[7] W. Hsiao-Lin, Structure and Dielectric Properties of Perovskite -Barium Titanate (BaTiO3), Subm. in Part. Fulfillm. of Course Requirement for MatE 115, Fall 2002, San Jose State Univ, (2002).
