Paper Titles

Multiwall Carbon Nanotube Reinforced Aluminum Matrix Composites Prepared by Ball Milling
p.119

Characterization of Zn_xCd_1-xO Nanorods for PV Applications
p.123

Surface Modification and Characterization of Photodegradable Polystyrene-TiO₂ Nanocomposites
p.128

Synthesis of Nickel Nanoparticles Encapsulated in a Hollow Silica Shell
p.132

Wettability of Carbon Nanotubes with Molten Sn-Ag-Cu Solder Alloy
p.136

Settling Characteristics of Alumina Nanoparticles in Ethanol-Water Mixtures
p.143

Size Control in ZnO Nanopillar Fabrication Using a Gel-Nanoimprint Process
p.149

Highly Efficient Degradation of Methylene Blue on Microwave Synthesized FeVO₄ Nanoparticles Photocatalysts under Visible-Light Irradiation
p.153

Study on the Mechanism of Engineering Ceramics in Rotary Ultrasonic-Vibration Grinding
p.158

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 372Wettability of Carbon Nanotubes with Molten...

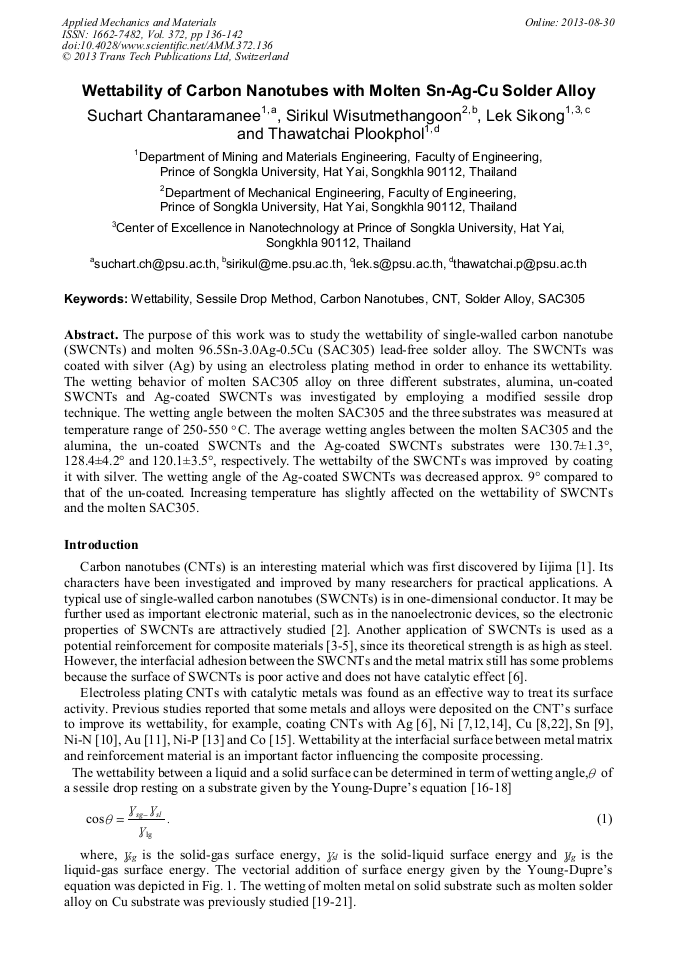

Wettability of Carbon Nanotubes with Molten Sn-Ag-Cu Solder Alloy

Article Preview

Abstract:

The purpose of this work was to study the wettability of single-walled carbon nanotube (SWCNTs) and molten 96.5Sn-3.0Ag-0.5Cu (SAC305) lead-free solder alloy. The SWCNTs was coated with silver (Ag) by using an electroless plating method in order to enhance its wettability. The wetting behavior of molten SAC305 alloy on three different substrates, alumina, un-coated SWCNTs and Ag-coated SWCNTs was investigated by employing a modified sessile drop technique. The wetting angle between the molten SAC305 and the three substrates was measured at temperature range of 250-550 °C. The average wetting angles between the molten SAC305 and the alumina, the un-coated SWCNTs and the Ag-coated SWCNTs substrates were 130.7±1.3°, 128.4±4.2° and 120.1±3.5°, respectively. The wettabilty of the SWCNTs was improved by coating it with silver. The wetting angle of the Ag-coated SWCNTs was decreased approx. 9° compared to that of the un-coated. Increasing temperature has slightly affected on the wettability of SWCNTs and the molten SAC305.

You might also be interested in these eBooks

Advanced Materials Design and Mechanics II

Info:

Periodical:

Applied Mechanics and Materials (Volume 372)

Pages:

136-142

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.372.136

Citation:

Cite this paper

Online since:

August 2013

Authors:

Suchart Chantaramanee, Sirikul Wisutmethangoon, Lek Sikong, Thawatchai Plookphol

Keywords:

Carbon Nanotube (CN), CNT, SAC305, Sessile Drop Method, Solder Alloy, Wettability

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] S. Iijima, Helical microtubules of graphitic carbon, Nature. 354 (1991) 56-58.

DOI: 10.1038/354056a0

[2] Z. Q. Xue, W. M. Liu, S. M. Hou, J. P. Sun, Z. J. Shi, Z. N. Gu, X. Y. Zhao, Z. X. Zhang, J. L. Wua, L. M. Peng, Q. D. Wu, study on electronic properties of single-wall carbon nanotubes, Mater. Sci. Eng. C. 16 (2001) 17-21.

DOI: 10.1016/s0928-4931(01)00290-9

[3] K. M. Kumara, V. Kripesh, A. A. O. Tay, Single-wall carbon nanotube (SWCNT) functionalized Sn-Ag-Cu lead-free composite solder, J. Alloys Compd. 450 (2008) 229-237.

DOI: 10.1016/j.jallcom.2006.10.123

[4] K. M. Kumar, V. Kripesh, A. A. O. Tay, Influence of single-wall carbon nanotube addition on the microstructural and tensile peoperties of Sn-Pb solder alloy, J. Alloys Compd. 455 (2008) 148-158.

DOI: 10.1016/j.jallcom.2007.01.045

[5] K. M. Kumar, V. Kripesh, L. Shen, A. A. O. Tay, Study on the microstructure and mechanical properties of a navel SWCNT-reinforced solder alloy for ultra-fine pitch applications, Thin Solid Films. 504 (2006) 371-378.

DOI: 10.1016/j.tsf.2005.09.072

[6] Y. Feng, H. Yuan, Electroless plating of carbon nanotubes with silver, J. Mater. Sci. 39 (2004) 3241-3243.

DOI: 10.1023/b:jmsc.0000025869.05546.94

[7] H. Y. Song, X. W. Zha, Mechanical properties of nickel-coated single-walled carbon nanotubes and their embedded gold matrix composites, Phys. Lett. A. 374 (2010) 1068-1072.

DOI: 10.1016/j.physleta.2009.12.035

[8] W. M. Daoush, B. K. Lim, C. B. Mo, D. H. Nam, S. H. Hong, Electrical and mechanical properties of carbon nanotube reinforced copper nanocomposites fabricated by electroless deposition process, Mater. Sci. Eng. A. 513-514 (2009) 247-253.

DOI: 10.1016/j.msea.2009.01.073

[9] W. L. Liu, S. H. Hsieh, W. J. Chen, Preparation of Sn films deposited on carbon nanotubes, Appl. Surf. Sci. 253 (2007) 8356-8359.

DOI: 10.1016/j.apsusc.2007.03.069

[10] D. L. Zhao, X. Li, Z. M. Shen, Microwave absorbing property and complex permittivity and permeability of epoxy composites containing Ni-coated and Ag filled carbon nanotubes, Comps. Sci. Technol. 68 (2008) 2902-2908.

DOI: 10.1016/j.compscitech.2007.10.006

[11] X. Ma, X. Li, N. Lun, S. Wen, Synthesis of gold nano-catalysts supported on carbon nanotubes by using electroless plating technique, Mater. Chem. Phys. 97 (2006) 351-356.

DOI: 10.1016/j.matchemphys.2005.08.026

[12] H. Liu, G. Cheng, R. Zheng, Y. Zhao, C. Liang, Influence of synthesis process on preparation and properties of Ni/CNT catalyst, Diam. Relat. Mater. 15 (2006) 15-21.

DOI: 10.1016/j.diamond.2005.06.022

[13] F. Wang, S. Arai, M. Endo, The preparation of multi-walled carbon nanotubes with a Ni–P coating by an electroless deposition process, Carbon. 43 (2005) 1716-1721.

DOI: 10.1016/j.carbon.2005.02.015

[14] F. Z. Kong, X. B. Zhang, W. Q. Xiong, F. Liu, W. Z. Huang, Y. L. Sun, J. P. Tu, X. W. Chen, Continuous Ni-layer on multiwall carbon nanotubes by an electroless plating method, Sure. Coat. Tech. 155 (2002) 33-36.

DOI: 10.1016/s0257-8972(02)00032-4

[15] X. Chen, J. Xia, J. Peng, W. Li, S. Xie, Carbon-nanotube metal-matrix composites prepared by electroless plating, Compos. Sci. Technol. 60 (2000) 301-306.

DOI: 10.1016/s0266-3538(99)00127-x

[16] H. Uozumi, K. Kobayashi, K. Nakanishi, T. Matsunaga, K. Shinozaki, H. Sakamoto, T. Tsukada, C. Masuda, M. Yoshida, Fabrication process of carbon nanotube/light metal matrix composites by squeeze casting, Mater. Sci. Eng. A. 495 (2008) 282-287.

DOI: 10.1016/j.msea.2007.11.088

[17] H. Fujii, S. Izutani, T. Matsumoto, S. Kiguchi, K. Nogi, Evaluation of unusual change in contact angle between MgO and molten magnesium, Mater. Sci. Eng. A. 417 (2006) 99-103.

DOI: 10.1016/j.msea.2005.10.055

[18] K. Kondoh, M. Kawakami, H. Imai, J. Umeda, H. Fujii, Wettability of pure Ti by molten pure Mg droplets, Acta Mater. 58 (2010) 606-614.

DOI: 10.1016/j.actamat.2009.09.039

[19] M. F. Arenas, V. L. Acoff, Contact angle measurements of Sn-Ag and Sn-Cu lead-free solders on copper substrates, J. Electron, Mater. 33 12 (2004) 1452-1458.

DOI: 10.1007/s11664-004-0086-x

[20] L. Zang, Z. Yuan, H. Zhao, X. Zhang, Wettability of molten Sn-Bi-Cu solder on Cu substrate, Mater. Lett. 63 (2009) 2067-(2069).

DOI: 10.1016/j.matlet.2009.06.052

[21] Z. XiaoRui, Y. ZhangFu, Z. HongXin, Z. LiKun, L. JianQiang, Wetting behavior and interfacial characteristic of Sn-Ag-Cu solder alloy on Cu substrate, Chinese Sci Bull. 55 9 (2010) 797-801.

DOI: 10.1007/s11434-010-0056-z

[22] C. Xu, G. Wu, Z. Liu, D. Wu, T. T. Meek, Q. Han, Preparation of copper nanoparticles on carbon nanotubes by electroless plating method, Mater. Res. Bull. 39 (2004) 1499-1505.

DOI: 10.1016/j.materresbull.2004.04.021

[23] W. Gasior, Z. Moser, J. Pstrus, K. Bukat, R. Kisiel, J. Sitek, (Sn-Ag)eut+ Cu soldering materials, part I: wettability studies, J. Phase. Equilib. Diff. 25 2 (2004) 115-121.

DOI: 10.1007/s11669-004-0003-2

[24] Z. F. Yuan, K. Mukai, K. Takagi, M. Ohtaka, W. L. Huang, Q. S. Liu, Surface tension and its temperature coefficient of molten tin determined with the sessile drop method at different oxygen partial pressures, J. Colloid. Interf. Sci. 254 (2002).

DOI: 10.1006/jcis.2002.8589
