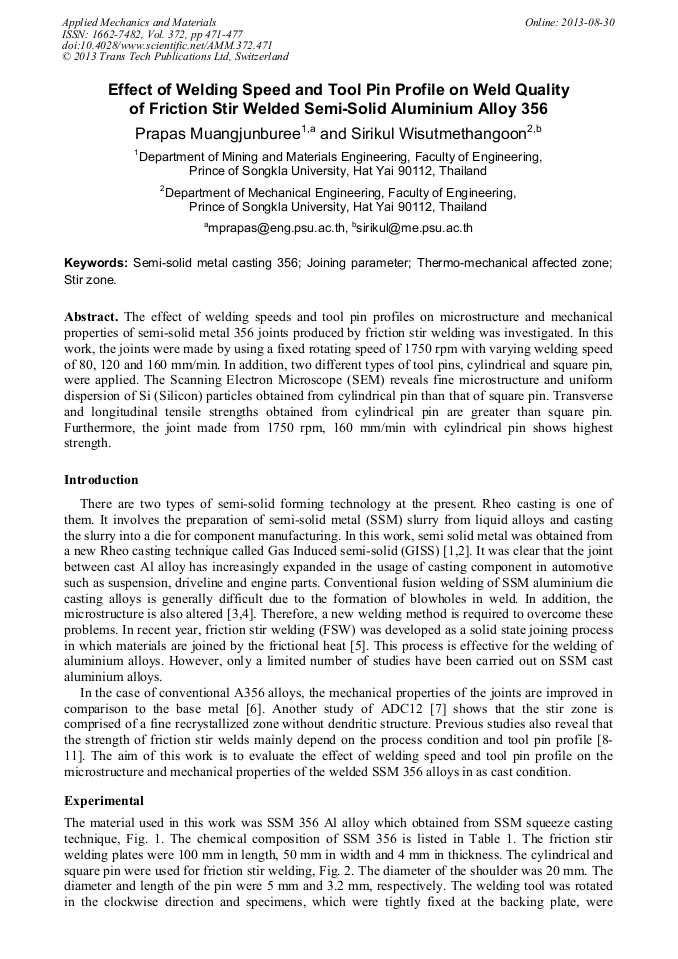

Effect of Welding Speed and Tool Pin Profile on Weld Quality of Friction Stir Welded Semi-Solid Aluminium Alloy 356

Abstract:

The effect of welding speeds and tool pin profiles on microstructure and mechanical properties of semi-solid metal 356 joints produced by friction stir welding was investigated. In this work, the joints were made by using a fixed rotating speed of 1750 rpm with varying welding speed of 80, 120 and 160 mm/min. In addition, two different types of tool pins, cylindrical and square pin, were applied. The Scanning Electron Microscope (SEM) reveals fine microstructure and uniform dispersion of Si (Silicon) particles obtained from cylindrical pin than that of square pin. Transverse and longitudinal tensile strengths obtained from cylindrical pin are greater than square pin. Furthermore, the joint made from 1750 rpm, 160 mm/min with cylindrical pin shows highest strength.

• Periodical: Applied Mechanics and Materials (Volume 372)
• Pages: 471-477
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.372.471
• Online since: August 2013
• Authors: Prapas Muangjunburee, Sirikul Wisutmethangoon
• Keywords: Joining Parameter, Semi-Solid Metal Casting 356, Stir Zone, Thermo-Mechanical Affected Zone

References

[1] J. Wannasin, R.A. Martinez, M.C. Fleming, A novel technique to produce metal slurries for semi-solid metal processing, Solid State Pheno. 116-167 (2006) 336-369.

DOI: 10.4028/www.scientific.net/ssp.116-117.366

[2] J. Wannasin, S. Thanabumrungkul, Development of a semi-solid metal processing technique for aluminium casting application, Songklanakarin J. Sci. Tech. 30 (2008) 200-215.

[3] A. Akhter, L. Ivanchev, H.P. Burger, Effect of pre/post T6 heat treatment on the mechanical properties of laser welded SSM cast A356 solid state phenomena, Mater. Sci. Eng. 447 (2007) 192-196.

DOI: 10.1016/j.msea.2006.10.148

[4] G. Govender, L. Ivanchev, H. Burger, R. Knutsen, G. Kunene, Weldability of SSM rheo processed aluminum alloy A356, Solid State Pheno. 141-143 (2008) 773-778.

DOI: 10.4028/www.scientific.net/ssp.141-143.773

[5] W.M. Thomas, E.D. Nicholas, J.C. Needham, M.G. Murch, P. Templesmith, C.J. Dawes, U.S. Patent 9, 125, 978. 8. (1991).

[6] W.B. Lee, Y.M. Yeon, S.B. Jung, The improvement of mechanical properties of frition-stir-welded, Mater. Sci. Eng. 355 (2003) 154-159.

[7] Y.G. Kim, H. Fujii, T. Tsumura, T. Komazak, K. Nakatak, Effect of welding parameters on microstructure in the stir zone of FSW joints of aluminum die casting alloy, Mater. Lett. 60 (2006) 3830-3837.

DOI: 10.1016/j.matlet.2006.03.123

[8] K. Elangovan, V. Balasubramanian, Influences of tool pin profile and welding speed on the formation of friction stir processing zone in AA2219 aluminium alloy, J. Mater. Process. Technol. 200 (2008) 163-175.

DOI: 10.1016/j.jmatprotec.2007.09.019

[9] H.Z. Yan, B.L. San, W. Lin, X.Q. Fu, The influence of pin geometry on bonding and mechanical properties in friction stir weld 2014 Al alloy, Mater. Lett. 59 (2005) 2948-2952.

DOI: 10.1016/j.matlet.2005.04.048

[10] F. Hidetoshi, C. Ling, T. Masaka, N. Kiyoshi. Effect of tool shape on mechanical properties and microstructure of friction stir welded aluminum alloys, Mater. Sci. Eng. 419 (2006) 25-31.

DOI: 10.1016/j.msea.2005.11.045

[11] H. Badarinarayan, Q. Yang, S. Zhu. Effect of tool geometry on static strength of friction stir spot-welded aluminum alloy, Int. J. Mac. Tool. Manu. 49 (2009) 142-148.

DOI: 10.1016/j.ijmachtools.2008.09.004
