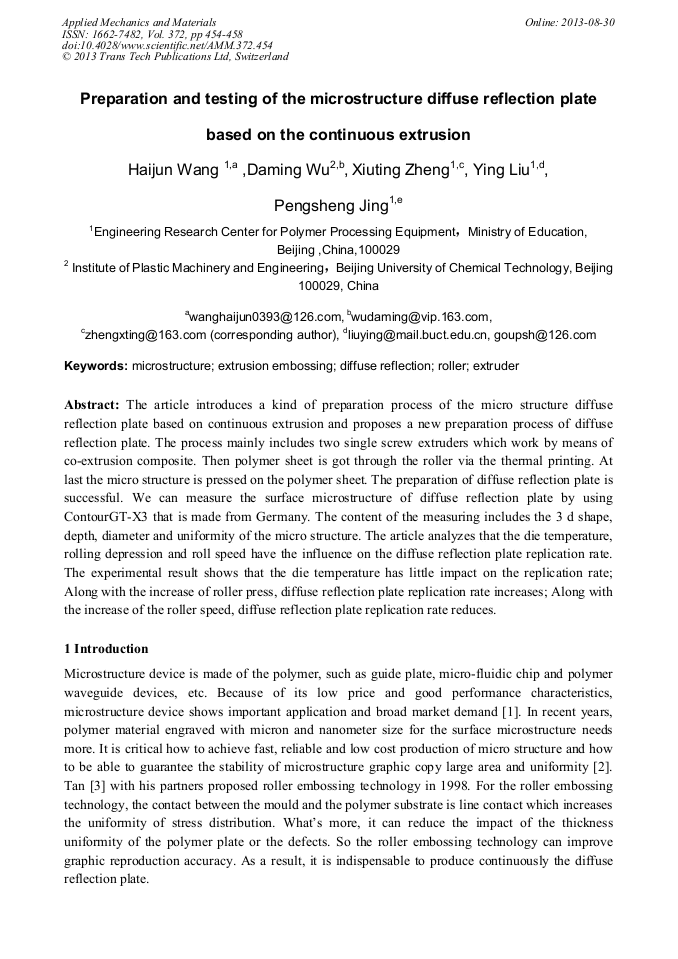

Preparation and Testing of the Microstructure Diffuse Reflection Plate Based on the Continuous Extrusion

Abstract:

The article introduces a kind of preparation process of the micro structure diffuse reflection plate based on continuous extrusion and proposes a new preparation process of diffuse reflection plate. The process mainly includes two single screw extruders which work by means of co-extrusion composite. Then polymer sheet is got through the roller via the thermal printing. At last the micro structure is pressed on the polymer sheet. The preparation of diffuse reflection plate is successful. We can measure the surface microstructure of diffuse reflection plate by using ContourGT-X3 that is made from Germany. The content of the measuring includes the 3 d shape, depth, diameter and uniformity of the micro structure. The article analyzes that the die temperature, rolling depression and roll speed have the influence on the diffuse reflection plate replication rate. The experimental result shows that the die temperature has little impact on the replication rate; Along with the increase of roller press, diffuse reflection plate replication rate increases; Along with the increase of the roller speed, diffuse reflection plate replication rate reduces.

• Periodical: Applied Mechanics and Materials (Volume 372)
• Pages: 454-458
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.372.454
• Online since: August 2013
• Authors: Hai Jun Wang, Da Ming Wu, Xiu Ting Zheng, Ying Liu, Peng Sheng Jing
• Keywords: Diffuse Reflection, Extruder, Extrusion Embossing, Microstructure, Roller

References

[1] Lee G B, Chen S H , Huang G R , et al. Micro -fabricate d plastic chips b y hot embossing methods and their application for DNA Separation and detection [J]. Sensors and Actuators, 2011, 75(1-2): 142-148.

DOI: 10.1016/s0925-4005(00)00745-0

[2] Sung-Won Youn, Mayuko Ogiwara, Hiroshi Goto, et al. Prototype development of a roller imprint system and its application to large area polymer replication for a micro-structured optical device. [J] Journal of Materials Processing Technology, 2008, 202: 76-85.

DOI: 10.1016/j.jmatprotec.2007.08.069

[3] Tan H, Gibertson A, Chou S Y. Roller nanoimprint lithography [J]. Vac Sci Technology, 1998, 19(6), 3926-3928.

[4] H. C. Zhu, L. X. Zhang. Green lighting industry development trend analysis about LED[J]. Science and Technology Observation, 2010, (5): 50-52.

[5] L. T. Jiang, T. C. Huang, J. R. Ciou, C. Y. Chang, and S. Y. Yang, Fabrication of plastic mic-rolens arrays using hybrid extrusion rolling embossing with a metallic cylinder mold fabricated using dry film resist, Opt. Express 15, 12088-12094 (2007).

DOI: 10.1364/oe.15.012088

[6] X. W. Wang, Y. Liu, D. M. Wu, et al. The development of the polymer microstructure roller embossing molding equipment[J]. Plastic, 2011, 40(5): 113-115.
