Growth of CuInGaSe₂ Films by RF Sputtering Using CuInGaSe₂ Single Phase Target

Abstract:

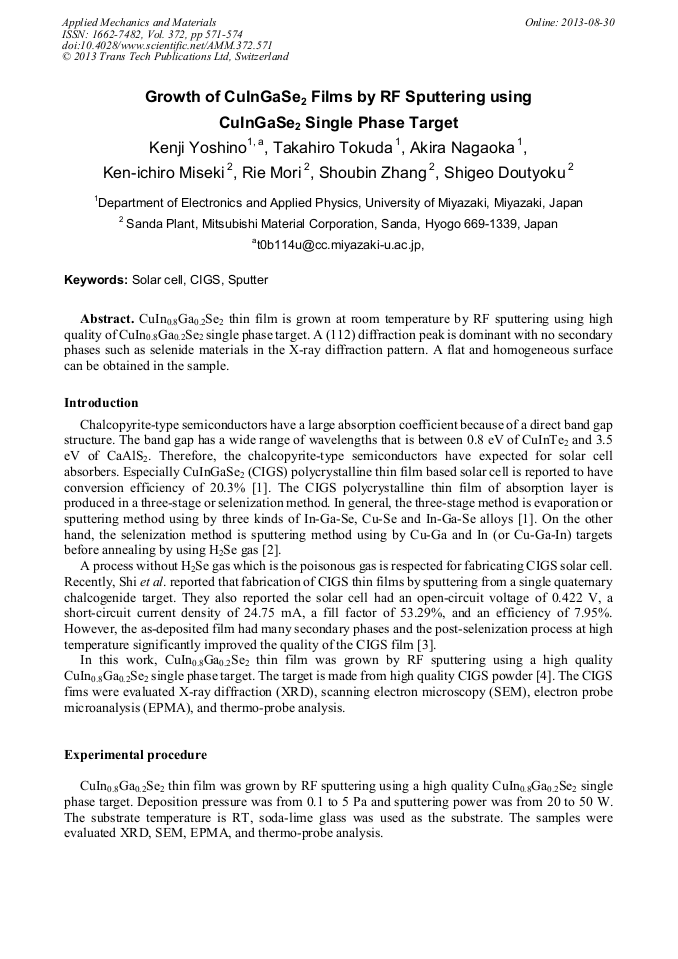

CuIn_0.8Ga_0.2Se₂ thin film is grown at room temperature by RF sputtering using high quality of CuIn_0.8Ga_0.2Se₂ single phase target. A (112) diffraction peak is dominant with no secondary phases such as selenide materials in the X-ray diffraction pattern. A flat and homogeneous surface can be obtained in the sample.
