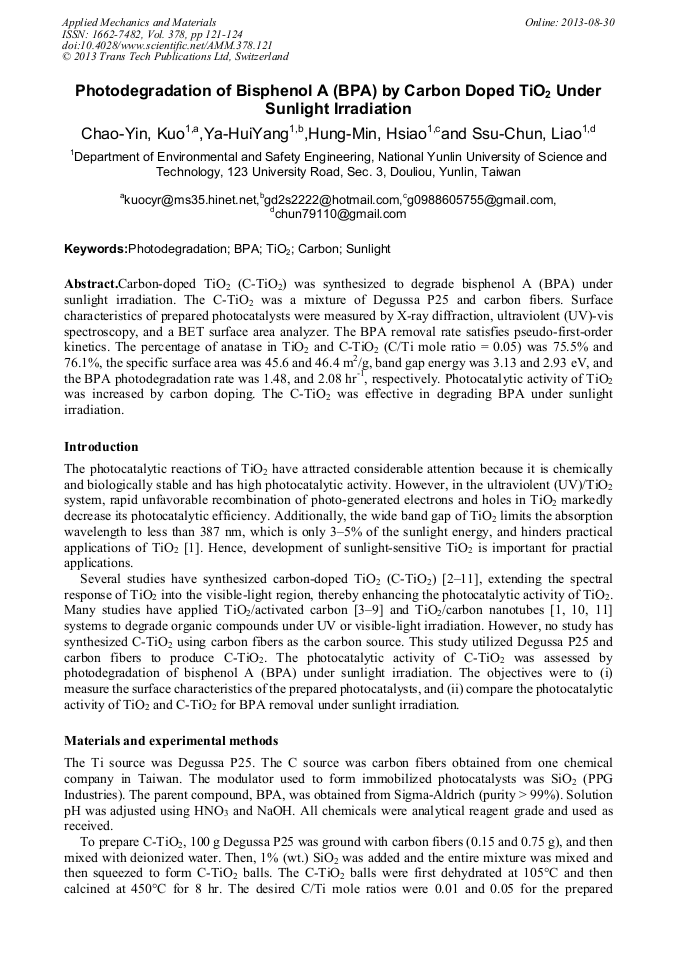

Photodegradation of Bisphenol A (BPA) by Carbon Doped TiO₂ under Sunlight Irradiation

Abstract:

Carbon-doped TiO₂ (C-TiO₂) was synthesized to degrade bisphenol A (BPA) under sunlight irradiation. The C-TiO₂ was a mixture of Degussa P25 and carbon fibers. Surface characteristics of prepared photocatalysts were measured by X-ray diffraction, ultraviolent (UV)-vis spectroscopy, and a BET surface area analyzer. The BPA removal rate satisfies pseudo-first-order kinetics. The percentage of anatase in TiO₂ and C-TiO₂ (C/Ti mole ratio = 0.05) was 75.5% and 76.1%, the specific surface area was 45.6 and 46.4 m²/g, band gap energy was 3.13 and 2.93 eV, and the BPA photodegradation rate was 1.48, and 2.08 hr^-1, respectively. Photocatalytic activity of TiO₂ was increased by carbon doping. The C-TiO₂ was effective in degrading BPA under sunlight irradiation.

• Periodical: Applied Mechanics and Materials (Volume 378)
• Pages: 121-124
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.378.121
• Online since: August 2013
• Authors: Chao Yin Kuo, Ya Hui Yang, Hung Min Hsiao, Ssu Chun Liao
• Keywords: BPA, Carbon, Photodegradation, Sunlight, TiO₂

References

[1] M. Xing, J. Zhang andF. Chen: Appl. Catal. B: Environ. Vol. 89 (2009), p.563–569.

[2] H. Wang, H.L. Wang and W.F. Jiang: Chemosphere Vol. 75 (2009), p.1105–1111.

[3] D.K. Lee, S.C. Kim, S.J. Kim, I.S. Chung and S.W. Kim: Chem. Eng. J. Vol. 102 (2004), p.93–98.

[4] Y. Li, X. Li, J. Li and J. Yin: Catal. Commun. Vol. 6 (2005), p.650–655.

[5] Y. Li, X. Li, J. Li and J. Yin: Water Res. Vol. 40 (2006), p.1119–1126.

[6] W. Wang, C.G. Silva and J.L. Faria: Appl. Catal. B: Environ. Vol. 70 (2007), p.470–478.

[7] C.C. Mao and H.S. Weng: Chem. Eng. J. Vol. 155 (2009), p.744–749.

[8] B. Gao, P.S. Yap, T.M. Lim and T.T. Lim: Chem. Eng. J. Vol. 171 (2011), p.1098–1107.

[9] H. Slimen, A. Houas and J.P. Nogier: J. Photochem. Photobiol. A: Chem. Vol. 221 (2011), p.13–21.

[10] G. An, W. Ma, Z. Sun, Z. Liu, B. Han, S. Miao, Z. Miao and K. Ding: Carbon Vol. 45 (2007), p.1795–1801.

[11] C.Y. Kuo: J. Hazard. Mater. Vol. 163 (2009), p.239–244.

[12] R.A. Spurr and H. Myers: Anal. Chem. Vol. 29 (1957), p.760–762.

[13] Y. Min, K. Zhang, W. Zhao, F. Zheng, Y. Chen and Y. Zhang: Chem. Eng. J. Vol. 193–194 (2012), p.203–210.

[14] C.Y. Kuo, C.H. Wu and H.Y. Lin: Desalination Vol. 256 (2010), p.37–42.

[15] J. Yang, J. Dai and J. Li: Appl. Surf. Sci. Vol. 257 (2011), p.8965–8973.

[16] Y. Ma, J. Zhang, B. Tian, F. Chen and L. Wang: J. Hazard. Mater. Vol. 182 (2010), p.386–393.
