Fatigue Crack Growth of Cold Worked 304L Stainless Steel in Gaseous Hydrogen

T.C. Chen; C.T. Hsieh; L.W. Tsay

doi:10.4028/www.scientific.net/AMM.378.140

Paper Titles

Photodegradation of Bisphenol A (BPA) by Carbon Doped TiO₂ under Sunlight Irradiation
p.121

Illumination Time Dependent Degradation of C₆₀ Solar Cell Efficiencies
p.125

Effect of Plasma-Induced Ozone Treatment on the Colour Yield of Textile Fabric
p.131

Probabilistic Lifetime Assessment of Prestressed Concrete Structures Exposed to Chloride Environment
p.135

Fatigue Crack Growth of Cold Worked 304L Stainless Steel in Gaseous Hydrogen
p.140

Paraffin Wax Powder Production by Ultrasonic Atomization
p.145

Study Changes in Mechanical Properties of Stainless Steels ELC X04Cr14Ni12TiN under the Surface Finish when Drilling
p.150

Effect of Machinability of Stainless Steels for Increasing of Productivity Production
p.154

Dynamic Analysis of 2.5D C/C Composites Finger Seal
p.159

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 378Fatigue Crack Growth of Cold Worked 304L Stainless...

Fatigue Crack Growth of Cold Worked 304L Stainless Steel in Gaseous Hydrogen

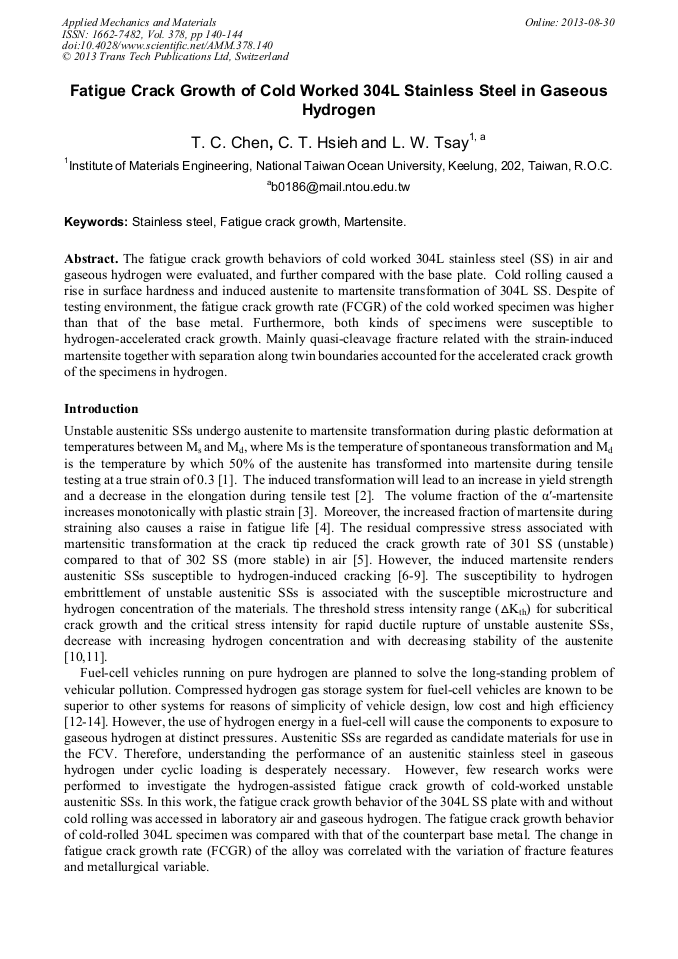

Abstract:

The fatigue crack growth behaviors of cold worked 304L stainless steel (SS) in air and gaseous hydrogen were evaluated, and further compared with the base plate. Cold rolling caused a rise in surface hardness and induced austenite to martensite transformation of 304L SS. Despite of testing environment, the fatigue crack growth rate (FCGR) of the cold worked specimen was higher than that of the base metal. Furthermore, both kinds of specimens were susceptible to hydrogen-accelerated crack growth. Mainly quasi-cleavage fracture related with the strain-induced martensite together with separation along twin boundaries accounted for the accelerated crack growth of the specimens in hydrogen.
