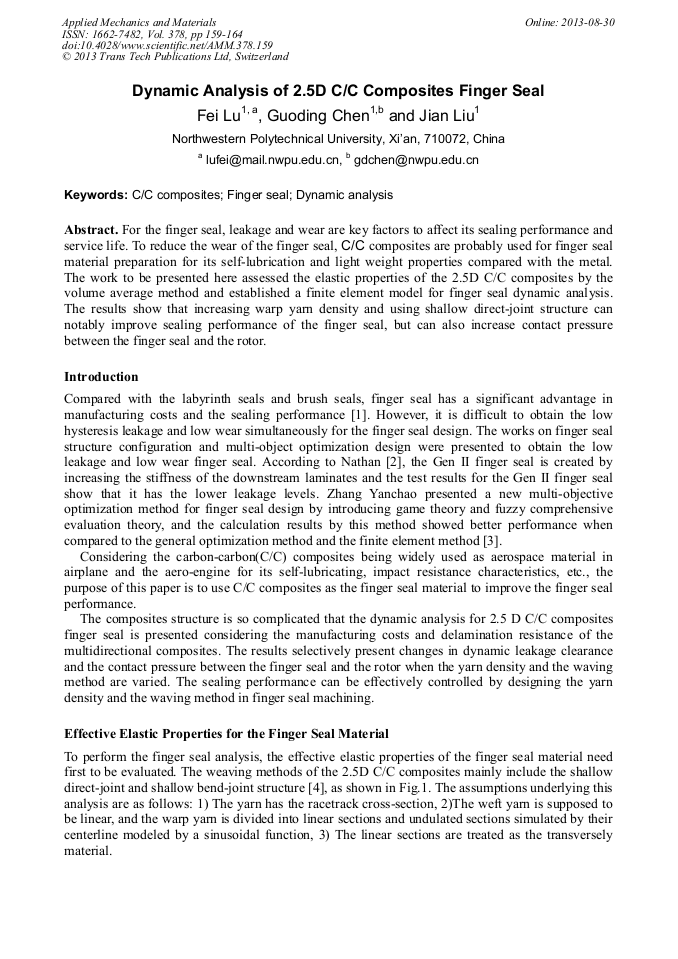

Dynamic Analysis of 2.5D C/C Composites Finger Seal

Abstract:

For the finger seal, leakage and wear are key factors to affect its sealing performance and service life. To reduce the wear of the finger seal, C/C composites are probably used for finger seal material preparation for its self-lubrication and light weight properties compared with the metal. The work to be presented here assessed the elastic properties of the 2.5D C/C composites by the volume average method and established a finite element model for finger seal dynamic analysis. The results show that increasing warp yarn density and using shallow direct-joint structure can notably improve sealing performance of the finger seal, but can also increase contact pressure between the finger seal and the rotor.

• Periodical: Applied Mechanics and Materials (Volume 378)
• Pages: 159-164
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.378.159
• Online since: August 2013
• Authors: Fei Lu, Guo Ding Chen, Jian Liu
• Keywords: C/C Composites, Dynamic Analysis, Finger Seal

References

[1] Margaret P. Proctor, Arun Kumar and Irebert R. Delgado: J PROPUL POWER. Vol. 20 (2004), p.312.

[2] Nathan E. Gibson, Don Takeuchi: Second Generation Air-to-Air Mechanical Seal Design and Performance (AIAA, California 2011).

[3] Zhang Yanchao, Liu Kai: The performances optimization of finger seal based on fuzzy game theory (Elsevier Ltd, 2011).

DOI: 10.1016/j.proeng.2011.08.646

[4] DONG Wei-feng, XIAO Jun and LI Yong: Journal of Nanjing University of Aeronautics & Astronautics. Vol. 37 (2005), p.660.

[5] Samer Nehme: J COMPOS MATER. Vol. 45 (2011), pp.1699-1716.

[6] George Z. Voyiadjis, Peter I. Kattan, in: Mechanics of Composite Materials with MATLAB, Springer, (2005).

[7] Ali Hallal: J COMPOS MATER. Vol. 45 (2010), pp.1793-1804.

[8] ZHANG Yanchao, CHEN Guoding and SHEN Xiaolong: Acta Aeronautica Et Astronautica Sinica. Vol. 30 (2009), p.2194.
