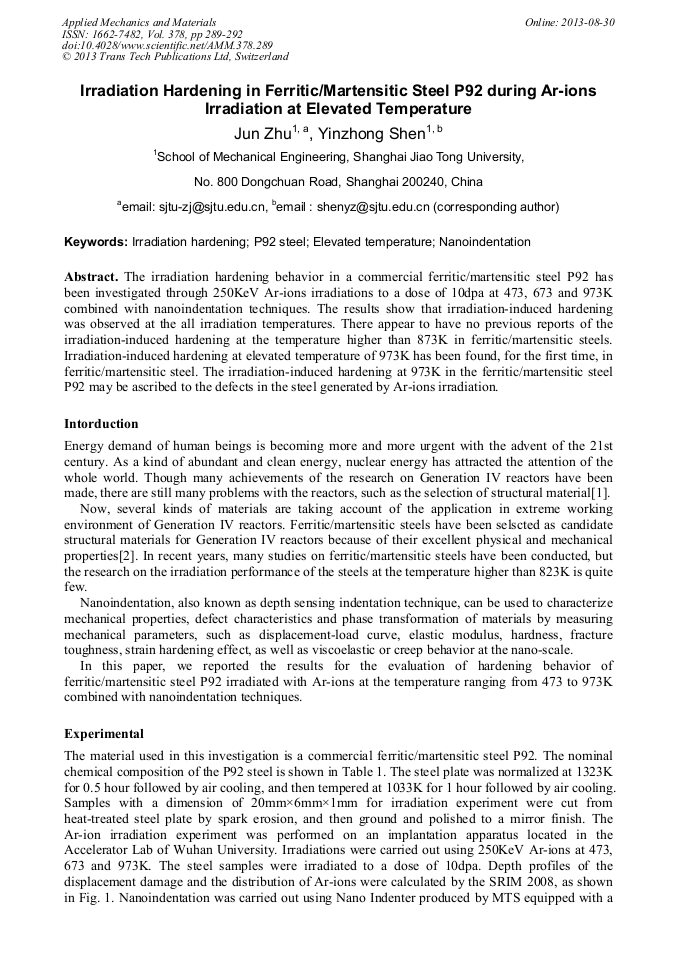

Irradiation Hardening in Ferritic/Martensitic Steel P92 during Ar-Ions Irradiation at Elevated Temperature

Abstract:

The irradiation hardening behavior in a commercial ferritic/martensitic steel P92 has been investigated through 250KeV Ar-ions irradiations to a dose of 10dpa at 473, 673 and 973K combined with nanoindentation techniques. The results show that irradiation-induced hardening was observed at the all irradiation temperatures. There appear to have no previous reports of the irradiation-induced hardening at the temperature higher than 873K in ferritic/martensitic steels. Irradiation-induced hardening at elevated temperature of 973K has been found, for the first time, in ferritic/martensitic steel. The irradiation-induced hardening at 973K in the ferritic/martensitic steel P92 may be ascribed to the defects in the steel generated by Ar-ions irradiation.

• Periodical: Applied Mechanics and Materials (Volume 378)
• Pages: 289-292
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.378.289
• Online since: August 2013
• Authors: Jun Zhu, Yin Zhong Shen
• Keywords: Elevated Temperature, Irradiation Hardening, Nanoindentation, P92 Steel

References

[1] P. Yvon and F. Carré: J. Nucl. Mater Vol. 385 (2009), p.217.

[2] K.L. Murty and I. Charit: J. Nucl. Mater Vol. 383 (2008), p.189.

[3] G.M. Pharr, E.G. Herbert and Y. Gao: Annu. Rev. Mater. Res Vol. 40 (2010), p.271.

[4] R.L. Klueh, K. Shiba and M.A. Sokolov: J. Nucl. Mater Vol. 386–388 (2009), p.191.

[5] R.L. Klueh and J.M. Vitek: J. Nucl. Mater Vol. 132 (1985), p.27.

[6] R.L. Klueh and J.M. Vitek: J. Nucl. Mater Vol. 137 (1985), p.44.

[7] C. Heintze, F. Bergner and M. Hernández-Mayoral: J. Nucl. Mater Vol. 417 (2011), p.980.

[8] A. Kimura, T. Morimura, M. Narui and H. Matsui: J. Nucl. Mater Vol. 233-237 (1996), p.319.

[9] Yong Xin, Xin Ju, Jie Qiu, Liping Guo, Jihong Chen, Zheng Yang, Peng Zhang, Xinzhong Cao and Baoyi Wang: Fusion Eng. Des Vol. 87 (2012), p.432.
