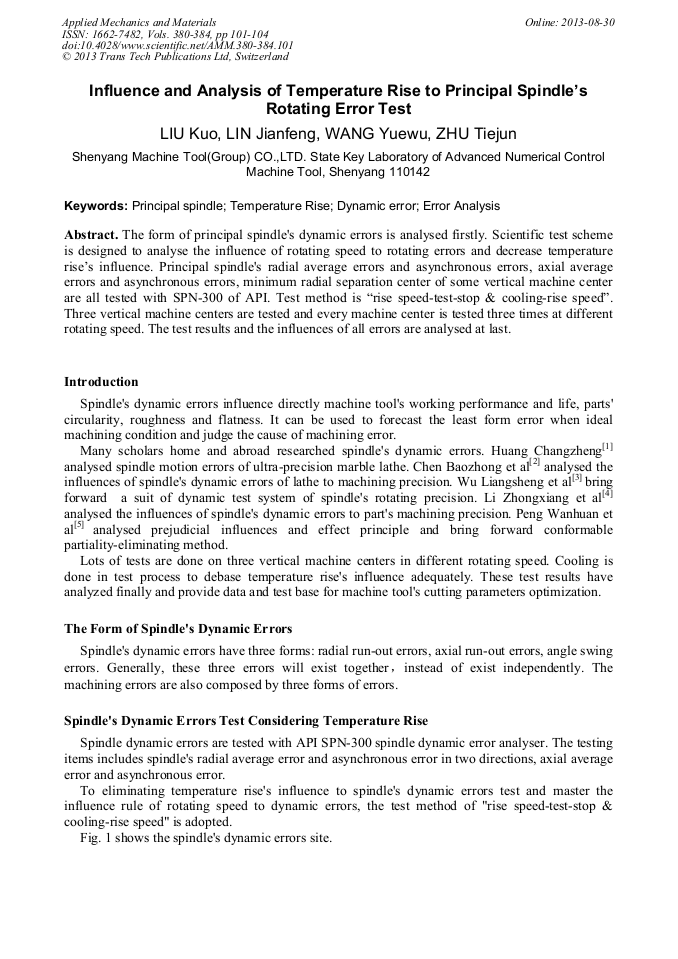

Influence and Analysis of Temperature Rise to Principal Spindle's Rotating Error Test

Abstract:

The form of principal spindle's dynamic errors is analysed firstly. Scientific test scheme is designed to analyse the influence of rotating speed to rotating errors and decrease temperature rises influence. Principal spindle's radial average errors and asynchronous errors, axial average errors and asynchronous errors, minimum radial separation center of some vertical machine center are all tested with SPN-300 of API. Test method is rise speed-test-stop & cooling-rise speed. Three vertical machine centers are tested and every machine center is tested three times at different rotating speed. The test results and the influences of all errors are analysed at last.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 380-384)

Pages:

101-104

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.380-384.101

Citation:

Cite this paper

Online since:

August 2013

Authors:

Kuo Liu, Jian Feng Lin, Yue Wu Wang, Tie Jun Zhu

Keywords:

Dynamic Error, Error Analysis, Principal Spindle, Temperature Rise
